TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SMA33AT3TVS DIODE 33VWM 53.3VC SMA |
7,781 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | 375pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
P6KE250CATVS DIODE 214VWM 344VC DO15 |
4,888 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 214V | 237V | 344V | 1.8A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
P4KE440A-E3/73TVS DIODE 376VWM 602VC DO204AL |
7,098 |
|
Datasheet | DO-204AL, DO-41, Axial | TransZorb® | Cut Tape (CT) | Active | Zener | 1 | - | 376V | 418V | 602V | 660mA | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
|
P4KE27AHE3/54TVS DIODE 23.1VWM 37.5VC DO204AL |
2,825 |
|
Datasheet | DO-204AL, DO-41, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 10.7A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
SMAJ22CA-TRTVS DIODE 22VWM 48.3VC SMA |
6,835 |
|
Datasheet | DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 22V | 24.4V | 48.3V | 48A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
 SC2.jpg "DF2B6.8M2SC(TPL3)")
|
DF2B6.8M2SC(TPL3)TVS DIODE 5VWM 13VC SC2 |
7,698 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 13V (Typ) | 1A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | - | - | - | Surface Mount | SC2 |
;;2.jpg "TP6KE20CA")
|
TP6KE20CATVS DIODE 17.1VWM 27.7VC DO204AC |
7,987 |
|
Datasheet | DO-204AC, DO-15, Axial | TP6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 17.1V | 19V | 27.7V | 22A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
|
SMAJ11CATVS DIODE 11VWM 18.2VC DO214AC |
6,842 |
|
Datasheet | DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 11V (Max) | 12.85V (Typ) | 18.2V | 22A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
|
SMAJ45CATVS DIODE 45VWM 72.7VC DO214AC |
8,250 |
|
Datasheet | DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 45V (Max) | 52.65V (Typ) | 72.7V | 5.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
SMAJ43ATVS DIODE 43VWM 69.4VC DO214AC |
2,725 |
|
Datasheet | DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 43V (Max) | 50.3V (Typ) | 69.4V | 5.8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
SMAJ45ATVS DIODE 45VWM 72.7VC DO214AC |
2,874 |
|
Datasheet | DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 45V (Max) | 52.65V (Typ) | 72.7V | 5.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
SMAJ90ATVS DIODE 90VWM 146VC DO214AC |
4,197 |
|
Datasheet | DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 90V (Max) | 105.5V (Typ) | 146V | 2.7A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
;;2.jpg "SMBJ13CD-M3/I")
|
SMBJ13CD-M3/ITVS DIODE 13VWM 21.2VC DO214AA |
2,361 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.6V | 21.2V | 28.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
RSB27F2FHT106TVS DIODE 24VWM UMD3 |
5,216 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 24V | 26.2V | - | - | - | No | - | 30pF @ 1MHz (Max) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | UMD3 |
|
P6SMB39CA-AU_R1_000A1SMB, TVS |
8,998 |
|
Datasheet | DO-214AA, SMB | P6SMB39CA-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 11.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB27CA-AU_R1_000A1SMB, TVS |
3,342 |
|
Datasheet | DO-214AA, SMB | P6SMB27CA-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 16A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |

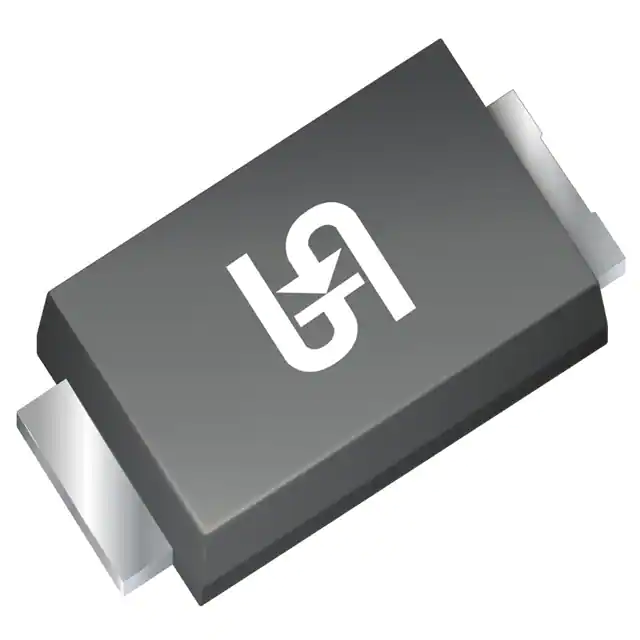

.jpg "SMA4F18AH MWG")
|
SMA4F18AH MWG400W, 17.65V, 5%, UNIDIRECTIONAL |
3,714 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 18V | 20.1V | 29.2V | 13.7A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA4F25AH MWG400W, 29.4V, 5%, UNIDIRECTIONAL, |
6,548 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 25V | 27.9V | 40.6V | 9.9A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA4F20AH MWG400W, 23.55V, 5%, UNIDIRECTIONAL |
3,599 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.4V | 32.5V | 12.3A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA4F21AH MWG400W, 24.7V, 5%, UNIDIRECTIONAL, |
4,350 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 21V | 23.5V | 34.1V | 11.7A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
