TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
~~2.jpg "TPSMP24AHM3/84A")
|
TPSMP24AHM3/84ATVS DIODE 20.5VWM 33.2VC DO220AA |
9,806 |
|
Datasheet | DO-220AA | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 12A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) |
|
|
TPSMP43AHM3/84ATVS DIODE 36.8VWM 59.3VC DO220AA |
6,038 |
|
Datasheet | DO-220AA | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 6.7A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) |
|
|
TPSMP16AHM3/84ATVS DIODE 13.6VWM 22.5VC DO220AA |
6,771 |
|
Datasheet | DO-220AA | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 13.6V | 15.2V | 22.5V | 17.8A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) |
|
P6SMB110CATVS DIODE 94VWM 152VC DO214AA |
5,740 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 94V | 105V | 152V | 4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMB150CATVS DIODE 128VWM 207VC DO214AA |
6,388 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 128V | 143V | 207V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P4KE62A-E3/54TVS DIODE 53VWM 85VC DO204AL |
4,719 |
|
Datasheet | DO-204AL, DO-41, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 4.7A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
LXES2SBAA4-016TVS DIODE 5.5VWM SMD |
2,435 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | - | - | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
TPSMP30AHM3/84ATVS DIODE 25.6VWM 41.4VC DO220AA |
4,016 |
|
Datasheet | DO-220AA | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 9.7A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) |
|

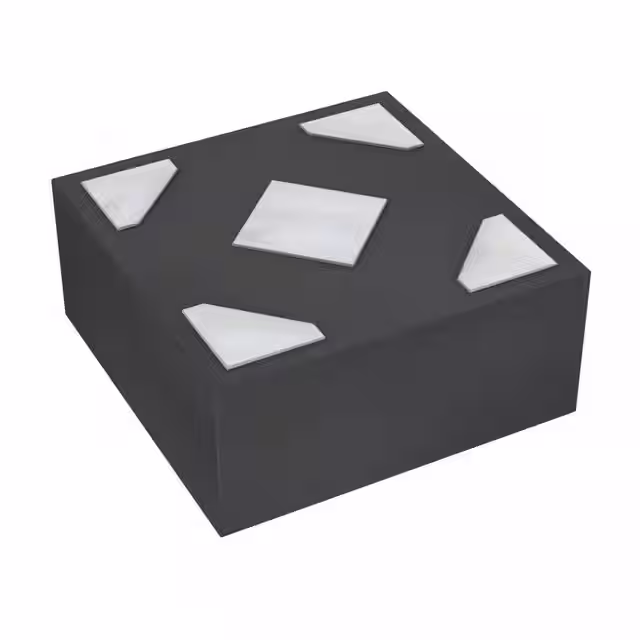

ESDAVLC5-4BX4TVS DIODE 3VWM 18VC 4-MICRO-X |
2,776 |
|
Datasheet | 4-Micro-X | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3V | 5.5V | 18V | 1A (8/20µs) | 30W | No | General Purpose | - | -30°C ~ 85°C (TA) | - | - | Surface Mount | 4-Micro-X |
|
1.5KE130CATVS DIODE DO201 |
7,833 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | - | 1 | - | - | - | - | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Through Hole | DO-201 |
|
CPDA10R5V0P-HFTVS DIODE 5VWM 13VC 10DFN |
4,838 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 5V (Max) | 6V | 13V (Typ) | 2A (8/20µs) | 60W | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
|
TPSMP20AHM3_A/HTVS DIODE 17.1VWM 27.7VC DO220AA |
6,689 |
|
Datasheet | DO-220AA | PAR®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 14.4A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) |
|
1.5KE250CAE3/TR13TVS DIODE 214VWM 344VC CASE-1 |
8,934 |
|
Datasheet | DO-201AA, DO-27, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 214V | 237V | 344V | 5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | CASE-1 |
|
|
1.5KE300CAE3/TR13TVS DIODE 256VWM 414VC CASE-1 |
6,604 |
|
Datasheet | DO-201AA, DO-27, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 256V | 285V | 414V | 5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | CASE-1 |
|
|
1.5KE350CAE3/TR13TVS DIODE 300VWM 482VC CASE-1 |
4,217 |
|
Datasheet | DO-201AA, DO-27, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 300V | 332V | 482V | 4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | CASE-1 |
|
SMDJ22CA-T7TVS DIODE 22VWM 35.5VC DO214AB |
7,276 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 84.5A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ28CA-T7TVS DIODE 28VWM 45.4VC DO214AB |
5,727 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 66.1A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
3.0SMCJ100ATVS DIODE 100VWM 162VC SMC |
4,807 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 18.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ110ATVS DIODE 110VWM 177VC SMC |
4,857 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | 16.8A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ120ATVS DIODE 120VWM 193VC SMC |
7,863 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 133V | 193V | 15.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
