TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3KASMC10AHM3_B/HTVS DIODE 10VWM 17VC DO214AB |
4,885 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 177A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3KASMC11AHM3_B/HTVS DIODE 11VWM 18.2VC DO214AB |
5,571 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 165A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3KASMC13AHM3_B/HTVS DIODE 13VWM 21.5VC DO214AB |
3,199 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 140A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3KASMC15AHM3_B/HTVS DIODE 15VWM 24.4VC DO214AB |
5,283 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 123A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3KASMC16AHM3_B/HTVS DIODE 16VWM 26VC DO214AB |
6,820 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 115A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3KASMC17AHM3_B/HTVS DIODE 17VWM 27.6VC DO214AB |
8,251 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 109A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3KASMC40AHM3_B/HTVS DIODE 40VWM 64.5VC DO214AB |
2,797 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
RSB6.8STE61TVS DIODE 3.5VWM EMD2 |
3,230 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.5V | 5.78V | - | - | 10W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | EMD2 |
|
P6SMB91ATVS DIODE 77.8VWM 125VC DO214AA |
5,761 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 4.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
CPDV6-5V0UTVS DIODE 5VWM 10VC SOT363 |
9,116 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V | 6.1V | 10V | 8A (8/20µs) | 80W | No | General Purpose | - | - | - | - | Surface Mount | SOT-363 |
|
CPDERT5V0UTVS DIODE 5VWM 12.5VC 0503 |
2,299 |
|
Datasheet | 0503 (1308 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | - | - | - | Surface Mount | 0503/SOD-723F |
|
|
CPDERT5V0TVS DIODE 5VWM 15VC 0503/SOD723F |
6,145 |
|
Datasheet | 0503 (1308 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V | 5.1V | 15V | 5A (8/20µs) | 75W | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | 0503/SOD-723F |
;;2.jpg "SM6T150A-E3/52")
|
SM6T150A-E3/52TVS DIODE 128VWM 207VC DO214AA |
5,830 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 128V | 143V | 207V | 2.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
.jpg "SESD0402S-005-054")
|

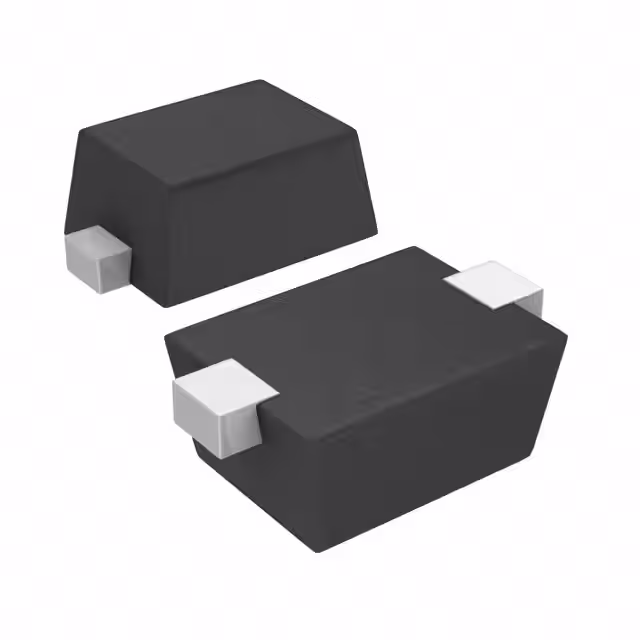

SESD0402S-005-054TVS DIODE 5VWM SOD923 |
8,713 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 5.4V | - | - | - | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-923 |
|
CDDFN2-T3.3LCTVS DIODE 3VWM 8VC 2DFN |
8,077 |
|
Datasheet | 2-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3V | 4V | 8V | 5A (8/20µs) | - | No | General Purpose | 13pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
|

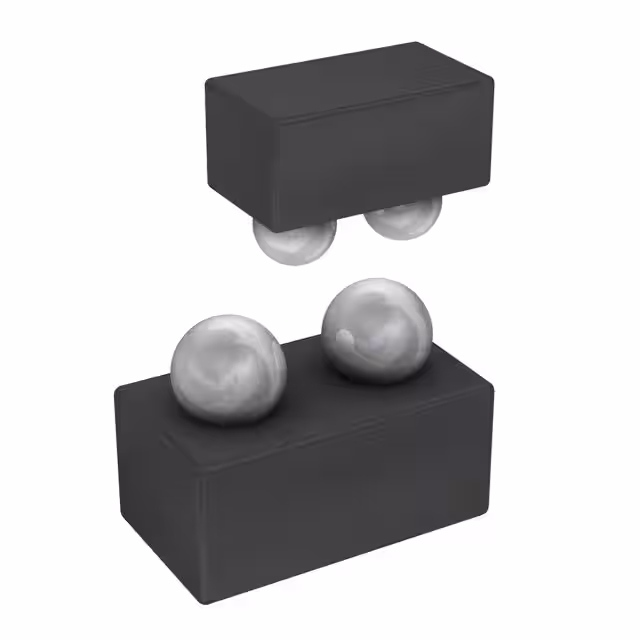

IP4302CX2/A,315TVS DIODE 2WLCSP |
4,245 |
|
Datasheet | 2-XFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | - | 14V | - | - | - | No | General Purpose | 10pF @ 1MHz | -35°C ~ 85°C (TA) | - | - | Surface Mount | 2-WLCSP (0.52x0.70) |
|
SMAJ250CAE3/TR13TVS DIODE 250VWM DO214AC |
2,997 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 250V | - | - | - | 500W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMAJ300CAE3/TR13TVS DIODE 300VWM DO214AC |
8,248 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 300V | - | - | - | 500W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ300CE3/TR13TVS DIODE 300VWM DO214AC |
6,249 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 300V | - | - | - | 500W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ350CAE3/TR13TVS DIODE 350VWM DO214AC |
4,502 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 350V | - | - | - | 500W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
