TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMC30J154ADISCRETE |
4,816 |
|
Datasheet | DO-214AB, SMC | SMC30J | Bulk | Active | Zener | 1 | - | 154V (Max) | 171V | 246V | 12A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMC30J85ADISCRETE |
9,972 |
|
Datasheet | DO-214AB, SMC | SMC30J | Bulk | Active | Zener | 1 | - | 85V (Max) | 95V | 137V | 22A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
SMPC6.0A-M3/86ATVS DIODE 6VWM 10.3VC TO277A |
9,413 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 145.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
SMPC6.5A-M3/86ATVS DIODE 6.5VWM 11.2VC TO277A |
7,149 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 133.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
SMPC7.0A-M3/86ATVS DIODE 7VWM 12VC TO277A |
5,506 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 125A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
SMPC7.5A-M3/86ATVS DIODE 7.5VWM 12.9VC TO277A |
4,085 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
SMPC8.0A-M3/86ATVS DIODE 8VWM 13.6VC TO277A |
9,905 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 110.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
5.0SMCJ58CA-AQTVS DIODE 58VWM 93.6VC DO-214AB |
3,271 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.4A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ16CATVS DIODE 16VWM 26VC DO-214AB |
8,642 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 16V | 17.8V | 26V | 192.3A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ160ATVS DIODE 160VWM 259VC DO-214AB |
7,397 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 160V | 178V | 259V | 19.3A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMCJ160CATVS DIODE 160VWM 259VC DO-214AB |
9,058 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 160V | 178V | 259V | 19.3A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ60CATVS DIODE 60VWM 96.8VC DO-214AB |
5,101 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 51.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ16CA-AQTVS DIODE 16VWM 26VC DO-214AB |
4,333 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 16V | 17.8V | 26V | 192.3A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ70ATVS DIODE 70VWM 113VC DO-214AB |
4,360 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 70V | 77.8V | 113V | 44.2A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ51CATVS DIODE 51VWM 82.4VC DO-214AB |
6,803 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ70CATVS DIODE 70VWM 113VC DO-214AB |
2,935 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 70V | 77.8V | 113V | 44.2A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ51A-AQTVS DIODE 51VWM 82.4VC DO-214AB |
8,267 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|

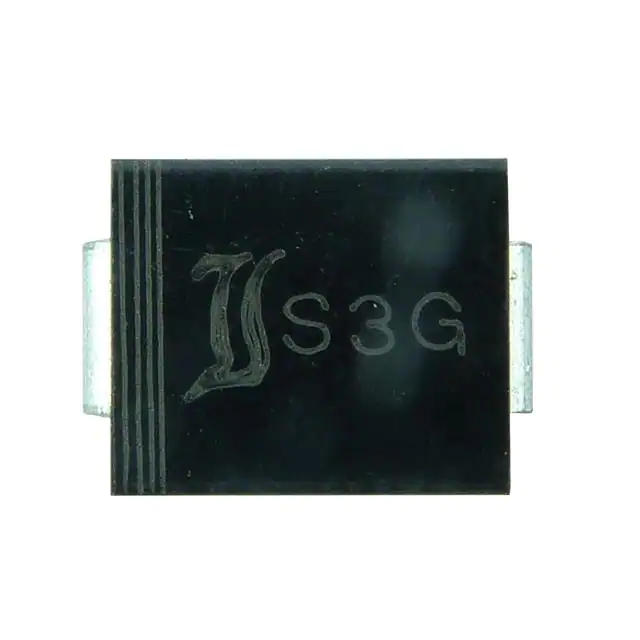

5.0SMCJ48A-AQTVS DIODE 48VWM 77.4VC DO-214AB |
6,531 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 64.6A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ120ATVS DIODE 120VWM 193VC DO-214AB |
5,856 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 120V | 133V | 193V | 25.9A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

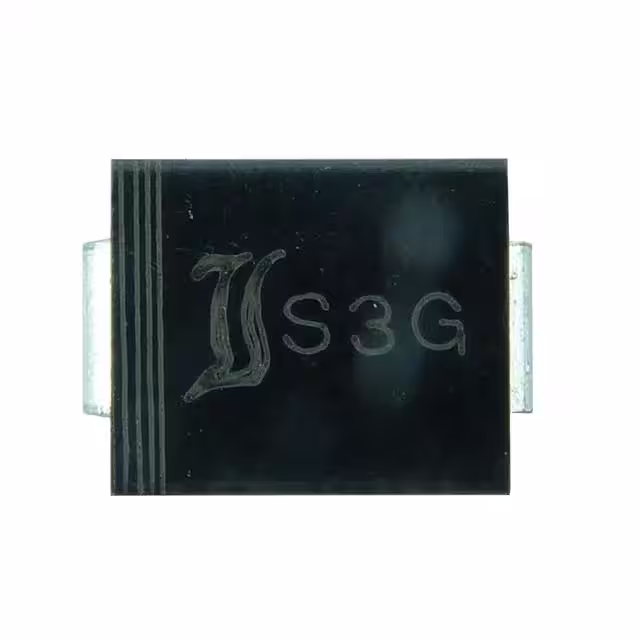

5.0SMCJ45CA-AQTVS DIODE 45VWM 72.7VC DO-214AB |
7,685 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
