TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB39CAT3GTVS DIODE 33.3VWM 53.9VC SMB |
9,901 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 11.2A | 600W | No | General Purpose | 260pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB43CAT3GTVS DIODE 36.8VWM 59.3VC SMB |
6,928 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 10.1A | 600W | No | General Purpose | 240pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB56CAT3GTVS DIODE 47.8VWM 77VC SMB |
2,940 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 47.8V | 53.2V | 77V | 7.8A | 600W | No | General Purpose | 185pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESD0P2RF02LSE6327XTSA1TVS DIODE 5.3VWM 21VC TSSLP-2 |
7,915 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 7V | 21V | 3A (8/20µs) | - | No | RF Antenna | 0.23pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-1 |
|
CDDFN2-T12CTVS DIODE 12VWM 25VC 2DFN |
4,758 |
|
Datasheet | 2-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V | 13V | 25V | 1A (8/20µs) | 25W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
CDDFN2-T24CTVS DIODE 24VWM 47VC 2DFN |
6,042 |
|
Datasheet | 2-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 24V | 25V | 47V | 1A (8/20µs) | 47W | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
|

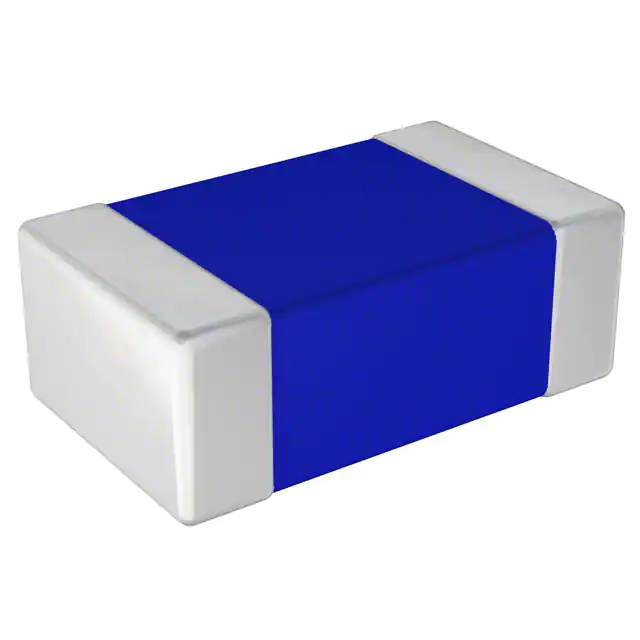

SESD0402P1BN-0450-090TVS DIODE 6VWM 12VC 0402 |
5,940 |
|
Datasheet | 0402 (1005 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 6V (Max) | 9V | 12V | 2A (8/20µs) | - | No | General Purpose | 4.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0402 |
|
ESD7V0D9-TPTVS DIODE 7VWM 14.8VC SOD923 |
9,572 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 8V | 14.8V | 5A (8/20µs) | 100W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
CPDQR5V0U-HFTVS DIODE 5VWM 12.5V 0402/SOD923 |
4,040 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | - | - | - | Surface Mount | 0402/SOD-923F |
|
SMBJ90ATVS DIODE 90VWM 146VC SMB |
5,484 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 4.11A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
CDDFN2-T5.0CTVS DIODE 5VWM 15VC 2DFN |
5,303 |
|
Datasheet | 2-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V | 6V | 15V | 5A (8/20µs) | 75W | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
 SC2.jpg "DF2B7M3SC,L3F")
|
DF2B7M3SC,L3FTVS DIODE 5VWM 13VC SC2 |
8,063 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 6V | 13V (Typ) | 1A (8/20µs) | 50W | No | General Purpose | 0.1pF @ 1MHz | - | - | - | Surface Mount | SC2 |
|
ESD105B102ELSE6327XTSA1TVS DIODE 5.5VWM 14VC TSSLP-2-4 |
6,407 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.5V (Max) | 6.1V | 14V | 5A (8/20µs) | 70W | No | Ethernet, HDMI | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-4 |
|
SP3022-01WTGTVS DIODE 5.3VWM 12VC 0201 FLIP |
5,847 |
|
Datasheet | 2-XFDFN, FCDFN | * | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 6.8V | 12V | 1A (8/20µs) | 20W | No | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0201 FlipChip |
|
XBP14E5UFN-GTVS DIODE 5VWM 13VC DFN2510-10 |
8,015 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 13V | 2.5A (8/20µs) | - | Yes | General Purpose | 0.6pF @ 1MHz | 125°C (TJ) | - | - | Surface Mount | DFN2510-10A |
|
SMAJ33CAHR3GTVS DIODE 33VWM 53.3VC DO214AC |
4,535 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ36CAHR3GTVS DIODE 36VWM 58.1VC DO214AC |
4,629 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 36V | 40V | 58.1V | 6.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6SMAJ7.0ADFTVS DIODE 7VWM 12VC D-FLAT |
7,542 |
|
Datasheet | 2-SMD, Flat Leads | SMAJ | Cut Tape (CT) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 50A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P6SMAJ8.0ADFTVS DIODE 8VWM 13.6VC D-FLAT |
5,822 |
|
Datasheet | 2-SMD, Flat Leads | SMAJ | Cut Tape (CT) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 44.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P6SMAJ8.5ADFTVS DIODE 8.5VWM 14.4VC D-FLAT |
4,486 |
|
Datasheet | 2-SMD, Flat Leads | SMAJ | Cut Tape (CT) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 41.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
