TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB27CAT3GTVS DIODE 23.1VWM 37.5VC SMB |
8,380 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 16A | 600W | No | General Purpose | 370pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB62CAT3GTVS DIODE 53VWM 85VC SMB |
3,452 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 53V | 58.9V | 85V | 7.1A | 600W | No | General Purpose | 170pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB68CAT3GTVS DIODE 58.1VWM 92VC SMB |
6,121 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.5A | 600W | No | General Purpose | 155pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESD0P4RFLE6327XTSA1TVS DIODE 50VWM 9VC TSLP-4-7 |
2,248 |
|
Datasheet | 4-XFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 50V (Max) | - | 9V | 5A (8/20µs) | - | No | Ethernet, HDMI, RF Antenna | 0.4pF @ 1GHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSLP-4-7 |
|

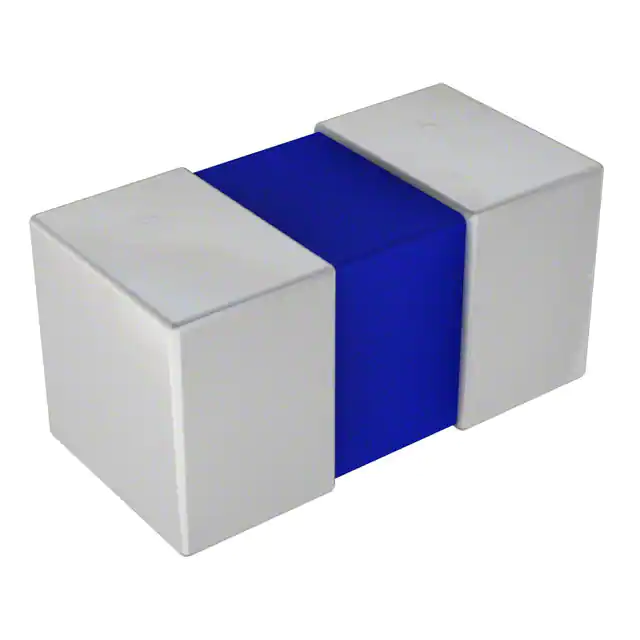

SESD0201P1BN-0400-090TVS DIODE 6VWM 12VC 0201 |
6,880 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 6V (Max) | 9V | 12V | 2A (8/20µs) | - | No | General Purpose | 4pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
|
LXES4XBAA6-027TVS DIODE 5.5VWM SMD |
9,656 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 6 | - | 5.5V | 6V | - | - | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
LXES2SBBB4-026TVS DIODE 5.5VWM SMD |
9,640 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | - | - | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
VESD05A1B-02V-G-08TVS DIODE 5VWM 11VC SOD523 |
9,233 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6V | 11V | 3A (8/20µs) | 33W | No | General Purpose | 19pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESD7361P2T5GTVS DIODE 5VWM 34VC SOD923 |
7,245 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 16.5V | 34V (Typ) | 16A (100ns) | - | No | General Purpose | 0.55pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-923 |
|
ESD7462N2T5GTVS DIODE 2X2DFN |
6,525 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 16V (Max) | 16.5V | 47V (Typ) | 16A | - | No | USB | 0.25pF @ 1GHz | -55°C ~ 150°C (TJ) | Automotive | - | Surface Mount | 2-X2DFN (1x0.6) |
|
P6KE51CA A0GTVS DIODE 43.6VWM 70.1VC DO204AC |
8,892 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.9A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
PGSMAJ48CAHE3GTVS DIODE 48VWM 77.4VC DO214AC |
6,886 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 48V | 53.3V | 77.4V | 5.2A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMBJ17AQ-13-FTVS DIODE 17VWM 27.6VC SMB |
5,752 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 21.7A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
NUP2128WTT1GTVS DIODE 26.5VWM 50VC SC70 |
6,104 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 2 | 26.5V (Max) | 28V | 50V | 3.5A (8/20µs) | 150W | No | CAN | 11.5pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SC-70-3 (SOT323) |
|
PE1403S8Q_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
3,265 |
|
Datasheet | 9-UDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 3.3V (Max) | 4V | 13V | 3A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3810-9 |
|
3.0SMCJ10ATVS DIODE 10VWM 17VC SMC |
4,014 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 176.4A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ58CA-13Transient Voltage Suppressor SMC |
8,275 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 32.1A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
DF3D6.8MFV,L3FTVS DIODE 5VWM 15VC VESM |
3,332 |
|
Datasheet | SOT-723 | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 15V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | 0.5pF @ 1MHz | - | - | - | Surface Mount | VESM |
|
|
RCLAMP1265P.TGTTVS DIODE |
5,836 |
|
Datasheet | 6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3KASMC10AHE3_B/ITVS DIODE 10VWM 17VC DO214AB |
9,184 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 177A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
