TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCG51AHE3/57TTVS DIODE 51VWM 82.4VC DO215AB |
3,168 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 18.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG58AHE3/57TTVS DIODE 58VWM 93VC DO215AB |
3,294 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93V | 16A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG60AHE3/57TTVS DIODE 60VWM 96VC DO215AB |
4,965 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96V | 15.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG64AHE3/57TTVS DIODE 64VWM 103VC DO215AB |
4,945 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 14.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG70AHE3/57TTVS DIODE 70VWM 113VC DO215AB |
7,829 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 13.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG75AHE3/57TTVS DIODE 75VWM 121VC DO215AB |
6,313 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 12.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG78AHE3/57TTVS DIODE 78VWM 126VC DO215AB |
6,075 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 11.9A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG85AHE3/57TTVS DIODE 85VWM 137VC DO215AB |
9,440 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 10.9A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG8.5AHE3/57TTVS DIODE 8.5VWM 14.4VC DO215AB |
2,974 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 104.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG90AHE3/57TTVS DIODE 90VWM 146VC DO215AB |
8,551 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 10.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG9.0AHE3/57TTVS DIODE 9VWM 15.4VC DO215AB |
7,832 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|

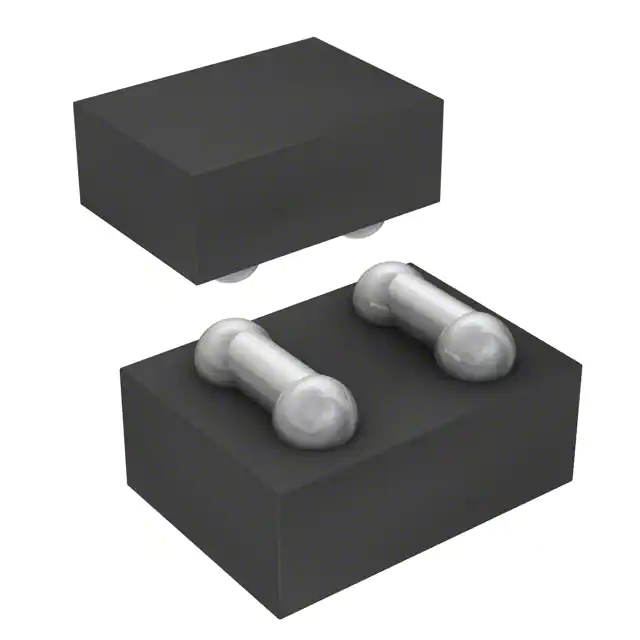

ESDA14V2-1BF3TVS DIODE 12VWM 2FLIPCHIP |
1,881 |
|
Datasheet | 2-XFBGA, FCBGA | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V | 14.2V | - | - | 50W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
PGSMAJ40CAHE3GTVS DIODE 40VWM 64.5VC DO214AC |
4,179 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMF6.5A RVGTVS DIODE 6.5VWM 11.2VC SOD123W |
3,588 |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 17.9A | 200W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-123W |
|
1SMB10CAT3GTVS DIODE 10VWM 17VC SMB |
3,507 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 10V | 11.1V | 17V | 35.3A | 600W | No | General Purpose | 805pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
1SMB12CAT3GTVS DIODE 12VWM 19.9VC SMB |
8,039 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | 680pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB15CAT3GTVS DIODE 15VWM 24.4VC SMB |
3,676 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V | 16.7V | 24.4V | 24A | 600W | No | General Purpose | 555pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB16CAT3GTVS DIODE 16VWM 26VC SMB |
8,265 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 16V | 17.8V | 26V | 23.1A | 600W | No | General Purpose | 520pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB18CAT3GTVS DIODE 18VWM 29.2VC SMB |
4,295 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 18V | 20V | 29.2V | 20.5A | 600W | No | General Purpose | 465pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
1SMB20CAT3GTVS DIODE 20VWM 32.4VC SMB |
2,683 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | 425pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
