TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCG8.5AHE3/9ATTVS DIODE 8.5VWM 14.4VC DO215AB |
4,156 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 104.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG90AHE3/9ATTVS DIODE 90VWM 146VC DO215AB |
7,191 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 10.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG9.0AHE3/9ATTVS DIODE 9VWM 15.4VC DO215AB |
5,489 |
|
Datasheet | DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
PGSMAJ33CA E3GTVS DIODE 33VWM 53.3VC DO214AC |
100 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ28CA E3GTVS DIODE 28VWM 45.4VC DO214AC |
3,724 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 28V | 31.1V | 45.4V | 8.8A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ12CA E3GTVS DIODE 12VWM 19.9VC DO214AC |
3,129 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ10CA E3GTVS DIODE 10VWM 17VC DO214AC |
4,083 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 10V | 11.1V | 17V | 23.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ24CA E3GTVS DIODE 24VWM 38.9VC DO214AC |
4,000 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 24V | 26.7V | 38.9V | 10.3A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|

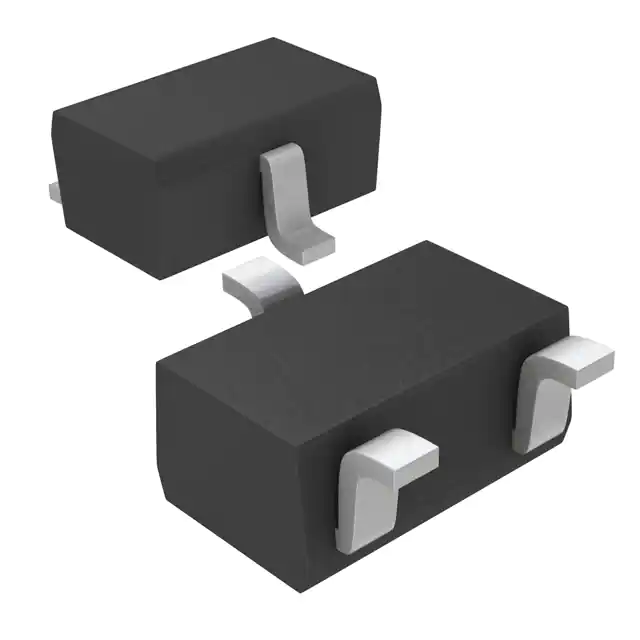

RSB6.8F2T106TVS DIODE 3.5VWM UMD3 |
4,496 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 3.5V | 5.78V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | UMD3 |
|
1SMB85AT3TVS DIODE 85VWM 137VC SMB |
3,871 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 85V | 94.4V | 137V | 4.4A | 600W | No | General Purpose | 220pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ11ATVS DIODE 11VWM 18.2VC DO214AA |
8,891 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 33A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ7V0ATVS DIODE 7VWM 12VC DO214AA |
6,841 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 50A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ8V0ATVS DIODE 8VWM 13.6VC DO214AA |
5,531 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 44.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ130A-TPTVS DIODE 130VWM 209VC DO214AA |
5,135 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
.jpg "1SMB48AT3G")
|
1SMB48AT3GTVS DIODE 48VWM 77.4VC SMB |
7,081 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 48V | 53.3V | 77.4V | 7.7A | 600W | No | General Purpose | 365pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB64CAT3GTVS DIODE 64VWM 103VC SMB |
2,002 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 64V | 71.1V | 103V | 5.8A | 600W | No | General Purpose | 145pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
GSOT03C-HT3-GS08TVS DIODE 3.3VWM 12.3VC LLP75-3B |
2,768 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 3.3V (Min) | 4V | 12.3V | 30A (8/20µs) | 369W | No | - | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
|
|
GSOT05C-HT3-GS08TVS DIODE 5VWM 16VC LLP75-3B |
5,835 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V (Min) | 6V | 16V | 30A (8/20µs) | 480W | No | - | 260pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
|
|
GSOT12C-HT3-GS08TVS DIODE 12VWM 26VC LLP75-3B |
2,871 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 12V (Min) | 13.5V | 26V | 12A (8/20µs) | 312W | No | - | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
|
|
GSOT36C-HT3-GS08TVS DIODE 36VWM 71VC LLP75-3B |
2,850 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 36V (Min) | 39V | 71V | 3.5A (8/20µs) | 248W | No | - | 52pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
