TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UDZUTE-175.6BDIODE ZENER 5.6V 200MW UMD2 |
2,337 |
|
Datasheet | SC-90, SOD-323F | - | Tape & Reel (TR) | Active | - | 1 | - | - | - | - | - | 200mW | No | General Purpose | 8pF @ 1MHz | -55°C ~ 150°C | - | - | Surface Mount | UMD2 |
|

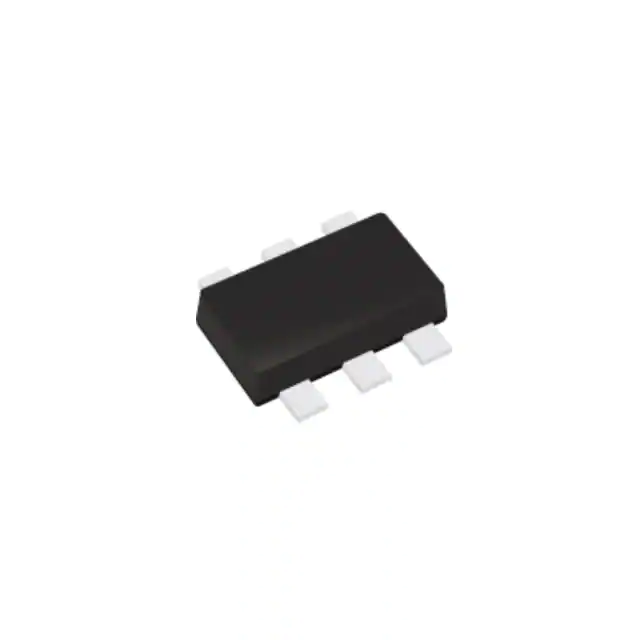

PE1605C4E6-AU_S1_000A1ULTRA LOW CAPACITANCE ESD PROTEC |
2,992 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | 6V | 15V | 4A (8/20µs) | - | Yes | - | 0.6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-563 |
|
MMBZ5V6AL-7-FTVS DIODE 3VWM 8VC SOT23 |
4,471 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 3V | 5.32V | 8V | 3A | 24W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
1SMA33AT3GTVS DIODE 33VWM 53.3VC SMA |
9,120 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | 375pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA5.0AT3GTVS DIODE 5VWM 9.2VC SMA |
6,188 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | 2035pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
.jpg "1SMB8.5AT3G")
|
1SMB8.5AT3GTVS DIODE 8.5VWM 14.4VC SMB |
9,582 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 41.7A | 600W | No | General Purpose | 1690pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMA22AT3GTVS DIODE 22VWM 35.5VC SMA |
3,343 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 22V | 24.4V | 35.5V | 11.3A | 400W | No | General Purpose | 540pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
BZW04-15TVS DO15 15.3V 400W UNIDIR |
9,971 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW04, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 16A | 400W | No | General Purpose | 975pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
BZA956AVL,115TVS DIODE 5.6VWM SOT665 |
5,829 |
|
Datasheet | SOT-665 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5.6V | - | - | - | 6W | No | General Purpose | 22pF @ 1MHz | - | - | - | Surface Mount | SOT-665 |
|
ESD8V0L1B-02LRH E6327TVS DIODE 14VWM 21VC TSLP-2 |
5,229 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 14V (Max) | 14.5V (Typ) | 21V (Typ) | 2.5A (8/20µs) | - | No | General Purpose | 8.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-17 |
|
|
1SMA12AT3GTVS DIODE 12VWM 19.9VC SMA |
6,658 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | 925pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA15AT3GTVS DIODE 15VWM 24.4VC SMA |
7,605 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | 758pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA28AT3GTVS DIODE 28VWM 45.4VC SMA |
8,049 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | General Purpose | 430pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
1SMA30AT3GTVS DIODE 30VWM 48.4VC SMA |
7,433 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | 405pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA36AT3GTVS DIODE 36VWM 58.1VC SMA |
3,019 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 36V | 40V | 58.1V | 6.9A | 400W | No | General Purpose | 345pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA48AT3GTVS DIODE 48VWM 77.4VC SMA |
6,796 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | General Purpose | 265pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA58AT3GTVS DIODE 58VWM 93.6VC SMA |
6,923 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | General Purpose | 225pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA6.0AT3GTVS DIODE 6VWM 10.3VC SMA |
4,228 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6V | 6.67V | 10.3V | 38.8A | 400W | No | General Purpose | 1730pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
1SMA70AT3GTVS DIODE 70VWM 113VC SMA |
6,373 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 70V | 77.8V | 113V | 3.5A | 400W | No | General Purpose | 190pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
AOZ8204KITVS DIODE 5VWM 7.5VC SC89-6 |
9,180 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5V (Max) | 6V | 7.5V | 5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-89-6 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
