TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4SMA180ATVS DIODE 154VWM 246VC DO214AC |
4,637 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 154V | 171V | 246V | 1.7A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P4KE400CATVS DIODE 342VWM 548VC DO41 |
6,566 |
|
Datasheet | DO-204AL, DO-41, Axial | - | Cut Tape (CT) | Active | Zener | - | 1 | 342V | 380V | 548V | 730mA | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
AQ1026-01UTGTVS DIODE 6VWM 13.4VC 2UDFN |
8,922 |
|
Datasheet | 0201 (0603 Metric) | AQ1026, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 6V (Max) | 7.8V (Typ) | 13.4V (Typ) | 2A (8/20µs) | - | No | - | 15pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 2-µDFN (0.60x0.30) |
|
PGSMAJ5.0A E3GTVS DIODE 5VWM 9.2VC DO214AC |
6,910 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ6.5A E3GTVS DIODE 6.5VWM 11.2VC DO214AC |
5,784 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ8.5A E3GTVS DIODE 8.5VWM 14.4VC DO214AC |
6,194 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 27.8A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SP1220-01ETGTVS DIODE 5.75VWM 11VC SOD882 |
3,616 |
|
Datasheet | SOD-882 | SP1220, SPA® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.75V (Max) | 7V (Typ) | 11V | 20A (8/20µs) | 250W | No | - | 290pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|

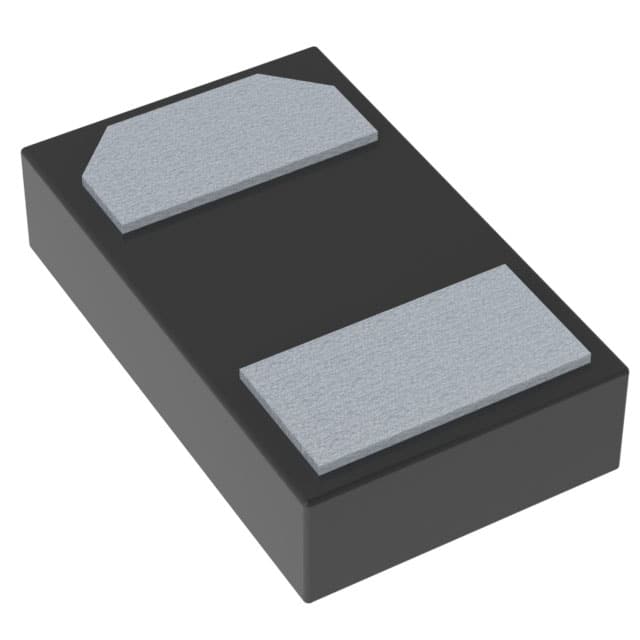

ESDL4151MX4T5GTVS DIODE 15VWM 26VC 2X3DFN |
5,500 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V (Max) | 15.5V | 26V | 47.5A (8/20µs) | - | No | USB 2.0, USB 3.0 | 0.8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (1x0.6) |
|
SMBG5.0AHE3/5BTVS DIODE 5VWM 9.2VC DO215AA |
6,652 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG6.0AHE3/5BTVS DIODE 6VWM 10.3VC DO215AA |
6,759 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG6.5AHE3/5BTVS DIODE 6.5VWM 11.2VC DO215AA |
3,842 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG7.0AHE3/5BTVS DIODE 7VWM 12VC DO215AA |
4,932 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 50A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG7.5AHE3/5BTVS DIODE 7.5VWM 12.9VC DO215AA |
3,136 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG8.0AHE3/5BTVS DIODE 8VWM 13.6VC DO215AA |
6,882 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 44.1A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
3.0SMCJ30A-AQTVS DIODE 30VWM 48.4VC DO-214AB |
7,004 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 61.9A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ24CA-AQTVS DIODE 24VWM 38.9VC DO-214AB |
4,376 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.1A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ33A-AQTVS DIODE 33VWM 53.3VC DO-214AB |
6,867 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 56.2A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ30CA-AQTVS DIODE 30VWM 48.4VC DO-214AB |
3,208 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 61.9A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ12A-AQTVS DIODE 12VWM 19.9VC DO-214AB |
9,438 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 150.7A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ40CA-AQTVS DIODE 40VWM 64.5VC DO-214AB |
3,566 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
