TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UAQ02C05L01-R0.5TVS ESD, 0201, 5V, 15V, REEL |
3,507 |
|
Datasheet | SOD-882 | UAQ02C05L01-R0.5 | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 6V | 20V (Typ) | 3A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|

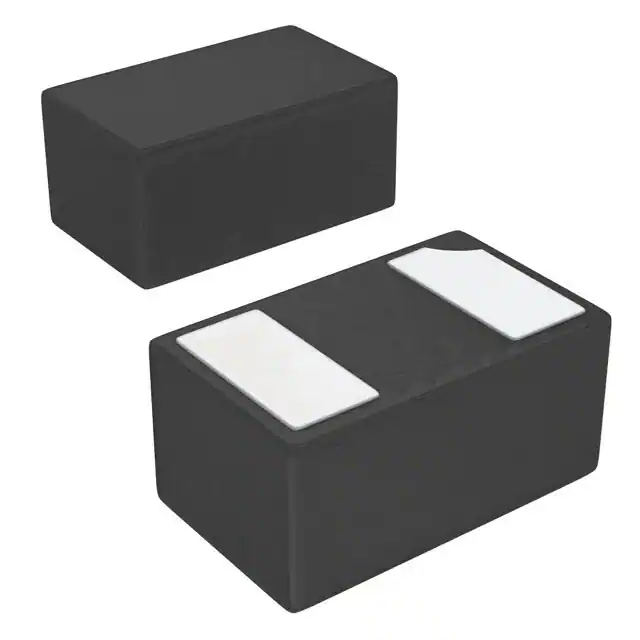

SJD16A12L01TVS ESD, DFN1610, 12V, 43V, REEL |
8,637 |
|
Datasheet | 2-WDFN | SJD16AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13V | 43V (Typ) | 47A (8/20µs) | 2000W (2kW) | No | General Purpose | 365pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1610 |
|
|
SJD16A15L01TVS ESD, DFN1610, 15V, 45V, REEL |
6,668 |
|
Datasheet | 2-WDFN | SJD16AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16V | 45V (Typ) | 45A (8/20µs) | 2000W (2kW) | No | General Purpose | 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1610 |
|
|
SJD16A18L01TVS ESD, DFN1610,18V, 50V, REEL |
5,427 |
|
Datasheet | 2-WDFN | SJD16AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 19V | 50V (Typ) | 25A (8/20µs) | 1000W (1kW) | No | General Purpose | 220pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1610 |
|
|
SJD16A10L01TVS ESD, DFN1610, 10V, 35V, REEL |
5,133 |
|
Datasheet | 2-WDFN | SJD16AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 10V (Max) | 11V | 35V (Typ) | 60A (8/20µs) | 2000W (2kW) | No | General Purpose | 400pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1610 |
|
|
SJD16A07L01TVS ESD, DFN1610, 7V, 30V, REEL |
7,383 |
|
Datasheet | 2-WDFN | SJD16AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.3V | 30V (Typ) | 80A (8/20µs) | 2000W (2kW) | No | General Purpose | 650pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1610 |
|
P6SMB200A-AT/TR13P6SMB, DO-214AA, 171V, 274V, AUT |
3,519 |
|
Datasheet | DO-214AA, SMB | P6SMB-AT | Tape & Reel (TR) | Active | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
;;2.jpg "SMB10J13A-M3/52")
|
SMB10J13A-M3/52TVS DIODE 13VWM 21.5VC DO214AA |
9,444 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 46.5A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J14A-M3/52TVS DIODE 14VWM 23.2VC DO214AA |
2,664 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 43.1A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J15A-M3/52TVS DIODE 15VWM 24.4VC DO214AA |
6,991 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 41A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J17A-M3/52TVS DIODE 17VWM 27.6VC DO214AA |
8,960 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 36.2A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J18A-M3/52TVS DIODE 18VWM 29.2VC DO214AA |
5,828 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 34.2A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J20A-M3/52TVS DIODE 20VWM 32.4VC DO214AA |
8,261 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 30.9A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J22A-M3/52TVS DIODE 22VWM 35.5VC DO214AA |
5,822 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 28.2A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J24A-M3/52TVS DIODE 24VWM 38.9VC DO214AA |
2,326 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 25.7A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J28A-M3/52TVS DIODE 28VWM 45.4VC DO214AA |
8,165 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 22A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J33A-M3/52TVS DIODE 33VWM 53.3VC DO214AA |
7,848 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 18.8A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMB10J40A-M3/52TVS DIODE 40VWM 64.5VC DO214AA |
4,745 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 15.5A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMB10J36A-M3/52TVS DIODE 36VWM 58.1VC DO214AA |
6,183 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 17.2A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
1.5SMC10CAHTVS DIODE 8.55VWM 14.5VC DO214AB |
6,681 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 8.55V | 9.5V | 14.5V | 108A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
