TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPDH2V5UB-HFTVS DIODE 2.5VWM 11.5VC SOD523 |
7,464 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 2.5V (Max) | 4V | 11.5V | 9A | 104W | No | General Purpose | 145pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
CPDH24V0UB-HFTVS DIODE 24VWM 35VC SOD523 |
7,429 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26V | 35V | 1A (8/20µs) | - | No | General Purpose | 50pF @ 1MHz (Max) | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOD-523 |
|
|
CPDH12V0UB-HFTVS DIODE 12VWM 26VC SOD523 |
4,754 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14.1V | 26V | 4A | 104W | No | General Purpose | 45pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|

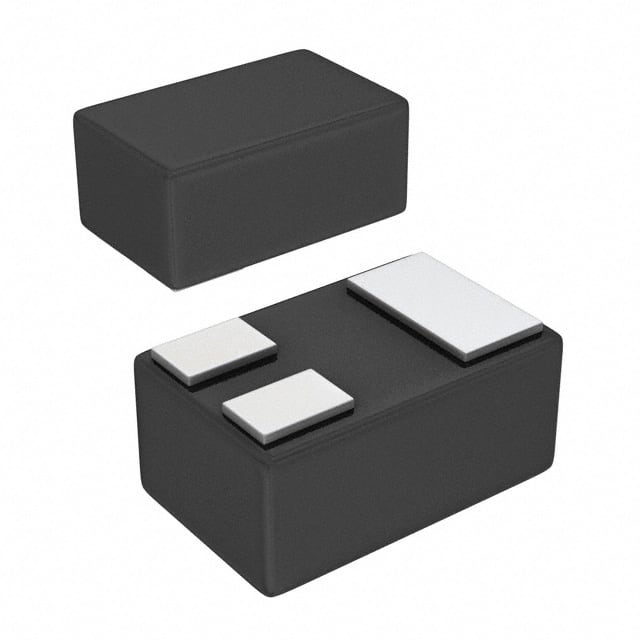

PE1605M2AQ_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
7,484 |
|
Datasheet | 3-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 5.5V | 15V | 4A (8/20µs) | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
UBD8C18L01TVS ESD, SOD882, 18V,35V, REEL |
5,160 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 19V | 35V | 2A (8/20µs) | - | No | General Purpose | 0.4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SHD8C4.5L01TVS ESD, SOD-882, 4.5V, 20V, REE |
9,345 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 4.5V (Max) | 4.6V | 20V (Typ) | 40A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SHD8A6.5L01TVS ESD, SOD-882, 6.5V, 18V, REE |
5,249 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V (Max) | 6.8V | 25V | 35A (8/20µs) | - | No | General Purpose | 270pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SHD8C03L01TVS ESD, SOD-882, 3.3V, 6V, REEL |
4,209 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 20V | 40A (8/20µs) | - | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SRV05-4150W 6V UNIDIRECTIONAL 5V SOT-23 |
3,299 |
|
Datasheet | - | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
UED26A03L05TVS ESD QFN-3020 3.3V 30V |
9,866 |
|
Datasheet | 10-UFDFN Exposed Pad | UED26A03L05 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.8V | 25V | 30A (8/20µs) | - | Yes | Ethernet | 4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2626 |
|

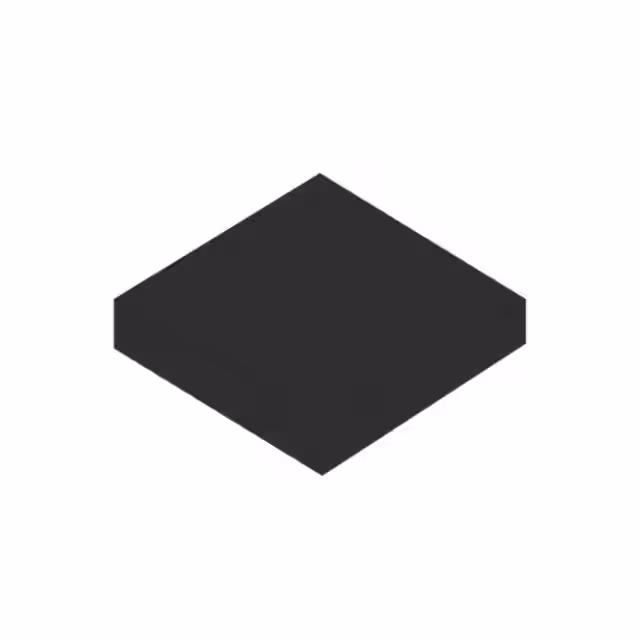

CPDA3-5V0U-HFDIODE ESD 5VWM 25VC DFN2020-3L |
5,436 |
|
Datasheet | 3-PowerUDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.3V | 25V (Typ) | 300A (8/20µs) | 7000W (7kW) | No | General Purpose | 2500pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020-3L |
|
SMBJ26CAHM3_A/HTVS DIODE 26VWM 42.1VC DO214AA |
3,581 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 26V | 28.9V | 42.1V | 14.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
P6KE130CA-E3/54TVS DIODE 111VWM 179VC DO204AC |
7,597 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 111V | 124V | 179V | 3.4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE170CA-E3/54TVS DIODE 145VWM 234VC DO204AC |
9,244 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 145V | 162V | 234V | 2.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE56CA-E3/54TVS DIODE 47.8VWM 77VC DO204AC |
5,427 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 7.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE91CA-E3/54TVS DIODE 77.8VWM 125VC DO204AC |
5,407 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 77.8V | 86.5V | 125V | 4.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg "SMB10J8.0A-M3/52")
|
SMB10J8.0A-M3/52TVS DIODE 8VWM 13.6VC DO214AA |
8,752 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 73.5A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ100A-M3/5BTVS DIODE 100VWM 162VC DO214AA |
9,541 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ100CA-M3/5BTVS DIODE 100VWM 162VC DO214AA |
3,447 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ110CA-M3/5BTVS DIODE 110VWM 177VC DO214AA |
2,614 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 122V | 177V | 3.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
