TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD4USB5BTBR-QXTVS DIODE 5VWM 5.5VC DFN2510A-10 |
10,000 |
|
Datasheet | 10-XFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 5.5V (Typ) | 7A (8/20µs) | - | No | HDMI, USB | 0.22pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN2510A-10 |
|

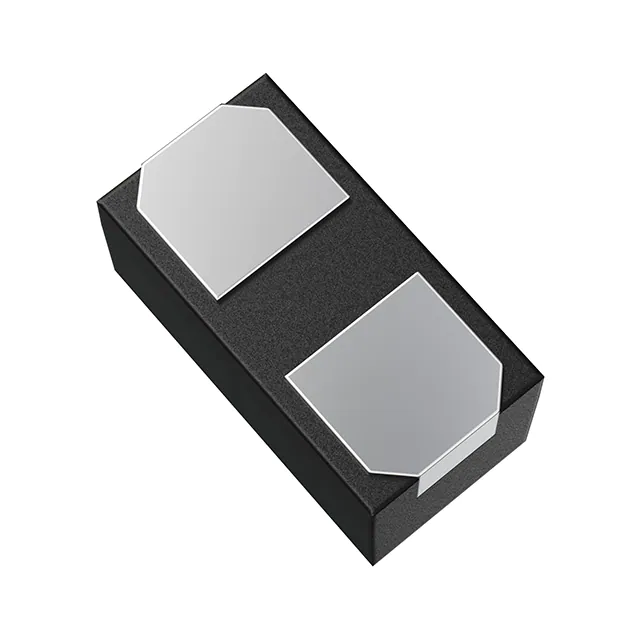

DF2B7BSL,L3FTVS DIODE 5.5VWM 16VC SL2 |
21,872 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 5.6V | 16V | 7.3A (8/20µs) | 115W | No | General Purpose | 12pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
DF2S5.6ASL,L3FTVS DIODE 3.5VWM SL2 |
15,893 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.5V (Max) | 5.3V | - | - | - | No | General Purpose | 40pF @ 1MHz | - | - | - | Surface Mount | SL2 |
|
|
DF2B7SL,L3FTVS DIODE 5.3VWM 16VC SL2 |
15,694 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.3V (Max) | 5.8V | 16V | 3A (8/20µs) | 45W | No | General Purpose | 6pF @ 1MHz | - | - | - | Surface Mount | SL2 |
|
PESD5V0F1USF,315TVS DIODE 5VWM 10VC DSN0603-2 |
8,964 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 10V | 3A (8/20µs) | - | No | General Purpose | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
|
PESD3V3V1BCSFYLTVS DIODE 3.3VWM 11VC DSN0603-2 |
8,606 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | 11V | 7.1A (8/20µs) | - | No | General Purpose | 8.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
ESD119B1W01005E6327XTSA1TVS DIODE 5.5VWM 14VC WLL-2-2 |
8,090 |
|
Datasheet | 01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6.1V | 14V | 2.5A (8/20µs) | 35W | No | HDMI | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | P/PG-WLL-2-2 |
|
CSLZ5V6,L3F5.6V ZNR DIODE SOD-962 OVP |
4,300 |
|
Datasheet | 2-SMD, No Lead | CSLZ | Tape & Reel (TR) | Active | Zener | 1 | - | 3.5V (Max) | 5.3V | 9V (Typ) | 2.5A (8/20µs) | 72W | No | General Purpose | 35pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
ESD145B1W01005E6327XTSA1TVS DIODE 18VWM 5VC WLL-2-2 |
3,414 |
|
Datasheet | 01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 18.5V | 5V (Typ) | 3.5A (8/20µs) | 21W | No | RF Antenna | 0.2pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | P/PG-WLL-2-2 |
|
|
DF2S5.1ASL,L3FTVS DIODE 1.5VWM SL2 |
1,255 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1.5V (Max) | 4.8V | - | - | - | No | General Purpose | 45pF @ 1MHz | - | - | - | Surface Mount | SL2 |
.jpg "ESDALC14-1BF4")
|
ESDALC14-1BF4TVS DIODE 5VWM 18VC 0201 |
71,855 |
|
Datasheet | 0201 (0603 Metric) | ESDA | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 13V | 18V (Typ) | 5A (8/20µs) | 100W | No | General Purpose | 22pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
.jpg "PUSB3BB2DFZ")
|
PUSB3BB2DFZTVS DIODE 4VWM 6.2VC DFN0603-3 |
30,102 |
|
Datasheet | 0201 (0603 Metric) | TrEOS | Tape & Reel (TR) | Active | Zener | - | 1 | 4V (Max) | 7.4V (Typ) | 6.2V (Typ) | 8A (8/20µs) | - | No | General Purpose | 0.26pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DFN0603-3 (SOT8013) |
|
|
ESD129B1W01005E6327XTSA1TVS DIODE 18VWM 28VC P/WLL-2-2 |
29,361 |
|
Datasheet | 01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | - | 28V | - | - | No | General Purpose | 0.3pF @ 1MHz | - | - | - | Surface Mount | SG-WLL-2-2 |
|
|
ESD259B1W0201E6327XTSA1TVS DIODE 16VWM 25VC WLL-2-3 |
15,100 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 16V | - | 25V (Typ) | 2.5A (8/20µs) | 62.5W | No | General Purpose | 4.2pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | PG-WLL-2-3 |
|
DF3A5.6FV,L3FTVS DIODE VESM |
12,816 |
|
Datasheet | SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | - | 5.3V | - | - | - | No | General Purpose | 65pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VESM |
|
ESDALC8-1BF4TVS DIODE 6VWM 16VC 0201 |
6,675 |
|
Datasheet | 0201 (0603 Metric) | ESDA | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 7V | 16V (Typ) | 8.6A (8/20µs) | 165W | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
|
SMAJ180CATVS DIODE 180VWM 292VC DO214AC |
5,000 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 180V | 201V | 292V | 1.4A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
|
ESDA5-1BF4TVS DIODE 5VWM 11VC 0201 |
28,417 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.8V | 11V | 10A (8/20µs) | 110W | No | General Purpose | 45pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
D1213A-01LP4-7BTVS DIODE 3.3VWM 10VC DFN1006-2 |
27,996 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 6V | 10V (Typ) | 1A (8/20µs) | - | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-2 |
|
D5V0M1U2LP3-7TVS DIODE 5.5VWM 11VC DFN0603-2 |
9,920 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 11V | 10A (8/20µs) | 120W | No | General Purpose | 55pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DFN0603-2 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
