TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMA5J36CA-E3/5ATVS DIODE 36VWM 58.1VC DO214AC |
5,849 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 8.6A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J40CA-E3/5ATVS DIODE 40VWM 64.5VC DO214AC |
2,755 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 7.8A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J6.0CA-E3/5ATVS DIODE 6VWM 10.3VC DO214AC |
2,226 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 48.5A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J6.5CA-E3/5ATVS DIODE 6.5VWM 11.2VC DO214AC |
8,865 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 44.6A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J7.0CA-E3/5ATVS DIODE 7VWM 12VC DO214AC |
3,646 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 41.7A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J7.5CA-E3/5ATVS DIODE 7.5VWM 12.9VC DO214AC |
5,638 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 38.8A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J8.0CA-E3/5ATVS DIODE 8VWM 13.6VC DO214AC |
7,251 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 36.8A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J8.5CA-E3/5ATVS DIODE 8.5VWM 14.4VC DO214AC |
9,342 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 8.5V | 9.44V | 14.4V | 34.7A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J9.0CA-E3/5ATVS DIODE 9VWM 15.4VC DO214AC |
6,956 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 9V | 10V | 15.4V | 32.5A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
D26V0S1U3LP20-7TVS DIODE 26VWM 45.7VC 3DFN |
4,755 |
|
Datasheet | 3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V (Max) | 28.9V | 45.7V | 7A | 4000W (4kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-3 (Type C) |
|
BZW04-299RLTVS DIODE 299VWM 618VC DO15 |
8,908 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW04, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 299V | 332V | 618V | 3.7A | 400W | No | General Purpose | 80pF @ 1MHz | 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SA170ARLTVS DIODE 170VWM 275VC AXIAL |
4,275 |
|
Datasheet | DO-204AC, DO-15, Axial | MiniMosorb™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 170V | 189V | 275V | 1.8A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | Axial |
|
|
ESD4V5P4-TPInterface |
8,653 |
|
Datasheet | 3-UDFN Exposed Pad | - | Bulk | Active | Zener | 1 | - | 4.5V (Max) | 4.8V | 18V | 280A (8/20µs) | 5000W (5kW) | No | General Purpose | 680pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN2020-3L |
|

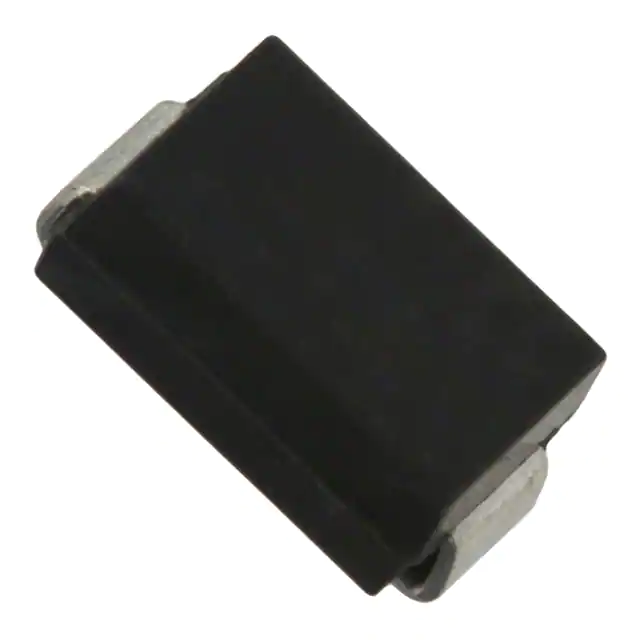

P4SMA18A_D84ZTVS DIODE 15.3VWM 25.2VC DO214AC |
4,438 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 15.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
ESDHC22VP4S-TPESD PROTECTION DEVICE |
2,232 |
|
Datasheet | 6-WDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 3 | - | 22V (Max) | 23V | 52V | 100A (8/20µs) | 5200W (5.2kW) | No | General Purpose | 280pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN2020-6S |
|
P4KE220A A0GTVS DIODE 185VWM 328VC DO204AL |
3,849 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Box (TB) | Active | Zener | 1 | - | 185V | 209V | 328V | 1.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
|
UCLAMP6511T.TNTUCLAMP, 1-LINE 60V 12PF ESD SLF1 |
2,547 |
|
Datasheet | 0402 (1006 Metric) | µClamp® | Tape & Reel (TR) | Active | - | 1 | - | - | 65V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | SLF1006N2T |
|
DT1240-04LPQ-7DATALINE PROTECTION PP U-DFN2510 |
7,189 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 11V | 5.5A (8/20µs) | 60W | Yes | DVI, HDMI, USB | 0.55pF @ 1MHz | -55°C ~ 85°C | Automotive | AEC-Q101 | Surface Mount | U-DFN2510-10 |
|
SMAJE440CAHTVS DIODE 440VWM BI |
2,304 |
|
Datasheet | DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 440V | 492V | 713V | 600mA | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE350CAHTVS DIODE 350VWM BI |
3,956 |
|
Datasheet | DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 350V | 391V | 567V | 700mA | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
