TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5.0SMDJ36ASTVS DIODE 36VWM 58.1VC DO214AB |
12,021 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg "5.0SMDJ24CA-Q")
|
5.0SMDJ24CA-QTVS DIODE 24VWM 38.9VC SMC |
9,244 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 129A | 5000W (5kW) | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
RCLAMP2431TQTCTTVS DIODE 24VWM 50VC SLP1006P2T |
13,424 |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 50V | 2A (8/20µs) | 100W | No | - | 0.35pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SLP1006P2T |
|
RCLAMP1624T.TCTTVS DIODE 5VWM 15VC SLP1710P4T |
12,572 |
|
Datasheet | 6-XFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | USB OTG | 0.7pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1710P4T |
|
RCLAMP0594P.TAT4-LINES 5V 0.3PF ESD SMF2510P8 ( |
7,649 |
|
Datasheet | 10-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 6A (8/20µs) | - | No | HDMI | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
5.0SMDJ51CATVS DIODE 51VWM 82.4VC DO214AB |
6,125 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

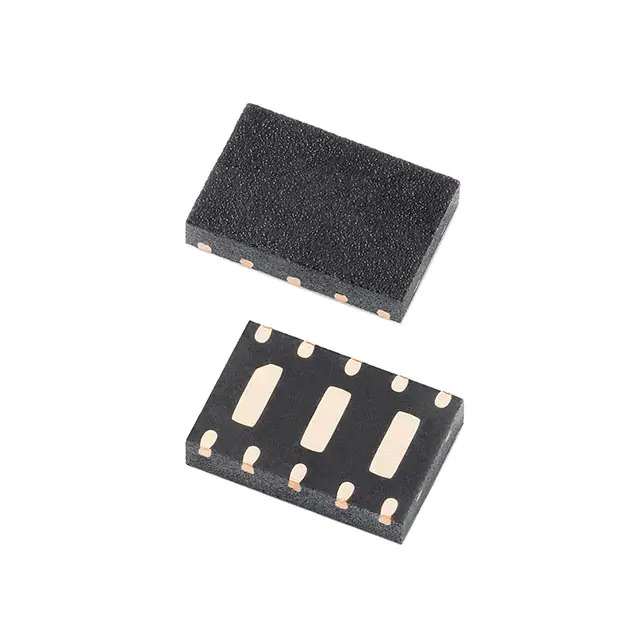

SP3384NUTGTVS DIODE ARRAY 3.3V 15A UDFN10 |
2,260 |
|
Datasheet | 10-UDFN Exposed Pad | SP3384N, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 6.5V | 15V | 15A (8/20µs) | - | - | - | 0.7pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | 10-µDFN (3x2) |
|
SMC50J5.0A5000 W, 5 V TVS IN SMC |
1,645 |
|
Datasheet | DO-214AB, SMC | SMC50J | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 9.2V | 544A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
|
5.0SMDJ78ATVS DIODE 78VWM 126VC DO214AB |
11,726 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 39.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP3344T.TNTTVS DIODE 3.3VWM 6.5V SLP1308N5T |
10,000 |
|
Datasheet | 5-XFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 7.5V | 6.5V | 4A (8/20µs) | - | Yes | General Purpose | 0.3pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP1308N5T |
|
5.0SMDJ33ATVS DIODE 33VWM 53.3VC DO214AB |
20,889 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ18ATVS DIODE 18VWM 29.2VC DO214AB |
19,091 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 172A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ45ATVS DIODE 45VWM 72.7VC DO214AB |
13,003 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ150CATVS DIODE 150VWM 243VC DO214AB |
7,265 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 150V | 167V | 243V | 20.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
.jpg "5.0SMLJ85CA-TP")
|
5.0SMLJ85CA-TPTVS DIODE 85VWM 137VC DO214AB |
6,165 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94.4V | 137V | 36.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SM5908TVS DIODE 5VWM 8.5VC SMC |
10,227 |
|
Datasheet | DO-214AB, SMC | TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 8.5V | 120A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
UCLAMP4014P.TNTTVS DIODE |
10,000 |
|
Datasheet | 10-UFDFN | uClamp® | Tape & Reel (TR) | Active | Zener | - | 4 | 40V (Max) | 42V | 75V | 3.3A (8/20µs) | 225W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SGP2510P8 |
|
TDS3311P.CSURGESWITCH, 1-LINE 33V EOS PROT |
9,592 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V (Max) | 36V | 42V | 35A (8/20µs) | 1470W (1.47kW) | No | General Purpose | 175pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (1.6x1.6) |
|
RCLAMP0524S.TCTTVS DIODE 5VWM 26VC SOT23-6 |
9,374 |
|
Datasheet | SOT-23-6 | RailClamp® | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 26V | 6A (8/20µs) | 150W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
TPD8S009DSMRTVS DIODE 5.5VWM 15SON |
9,325 |
|
Datasheet | 15-SMD, No Lead | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 9V | - | - | 25W | No | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-SON |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
