TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSQA6V8AW5T2GTVS DIODE 5VWM 13VC SC88A |
31,470 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6.4V | 13V | 1.6A (8/20µs) | 20W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
DALC208SC6TVS DIODE 5VWM SOT23-6 |
28,699 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | - | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | SOT-23-6 |
|
VBUS053AZ-HAF-GS08TVS DIODE 5.5VWM 18VC LLP75-7L |
27,649 |
|
Datasheet | 6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 18V | 3A (8/20µs) | 36W | Yes | USB OTG | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-7L |
|
SA5.0A-E3/54TVS DIODE 5VWM 9.2VC DO204AC |
24,844 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 54.3A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
XGD10402KRTVS DIODE 24VWM 40VC 0402 |
36,740 |
|
Datasheet | 0402 (1005 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 250V | 40V | - | - | No | General Purpose | - | - | - | - | Surface Mount | 0402 |
|
SM6T39CATVS DIODE 33.3VWM 53.9VC SMB |
11,756 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 11.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
CDDFN2-T3.3BTVS DIODE 3.3VWM 8VC 2DFN |
59,994 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 8V | 5A (8/20µs) | - | No | General Purpose | 13.5pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
CPDH3V3UP-HFTVS DIODE 3.3VWM 8VC SOD523 |
50,421 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | - | 8V | 5A (8/20µs) | 40W | No | General Purpose | 12pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|

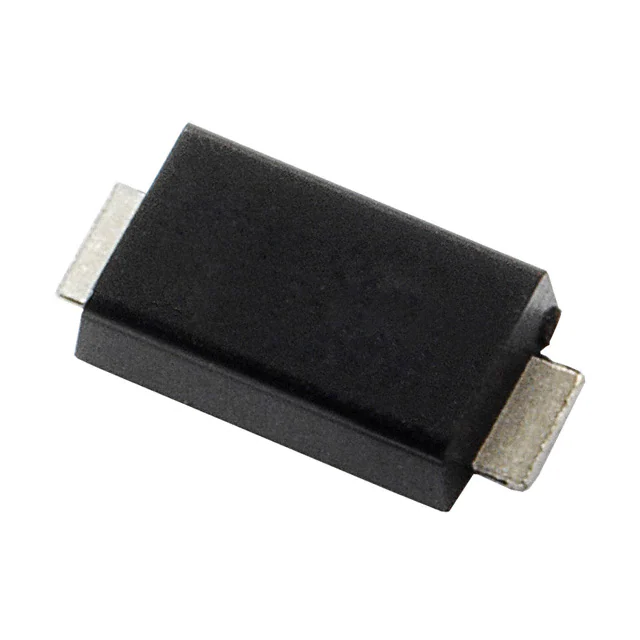

TPSMA6L48ATVS SMAF 48V 600W UNIDIR |
29,010 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 7.8A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
TPD2E2U06DRLRTVS DIODE 5.5VWM 12.4VC SOT5 |
22,614 |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6.5V | 12.4V (Typ) | 5.5A (8/20µs) | 85W | Yes | Ethernet | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5 |
|
CPDUR12VTVS DIODE 12VWM 25V 0603/SOD523F |
20,037 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13V | 25V | 1A (8/20µs) | 25W | No | General Purpose | 12pF @ 1MHz | - | - | - | Surface Mount | 0603/SOD-523F |
|
ESD224DQARTVS DIODE 3.6VWM 14VC 10USON |
12,356 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.6V (Max) | 7.9V | 14V | 2A (8/20µs) | 17W | No | Ethernet, HDMI, USB | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
|
PTVS5V0P1UP,115TVS DIODE 5VWM 9.2VC SOD128/CFP5 |
5,344 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
ESDS314DBVRTVS DIODE 3.6VWM 6.5VC SOT23-5 |
2,532 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.6V (Max) | 4.5V | 6.5V (Typ) | 25A (8/20µs) | 170W | No | General Purpose | 4.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
SP1003-01DTGTVS DIODE 5VWM 12VC SOD723 |
44,498 |
|
Datasheet | SOD-723 | SP1003, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12V (Typ) | 7A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-723 |
|
SP4322-01ETGTVS DIODE 5VWM 8VC SOD882 |
28,891 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 9V (Typ) | 8V (Typ) | 11A (8/20µs) | - | No | - | 0.4pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
AQ05C-01FTGTVS DIODE 5VWM 14.5VC SOD323 |
28,710 |
|
Datasheet | SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | - | 14.5V | 30A (8/20µs) | 450W | No | CAN | 200pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMS05T1GTVS DIODE 5VWM 15.5VC SC74 |
20,803 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6V | 15.5V | 23A (8/20µs) | 350W | No | General Purpose | 250pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
1.5KE33CATVS DIODE 28.2VWM 45.7VC DO201 |
13,429 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 33.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
0603ESDA-AEC1TVS ESD 0.05PF 0603 SMD AECQ |
12,824 |
|
Datasheet | 0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | - | - | 35V (Typ) | - | - | No | HDMI, USB | 0.05pF @ 1MHz | -55°C ~ 125°C | Automotive | AEC-Q200 | Surface Mount | 0603 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
