TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

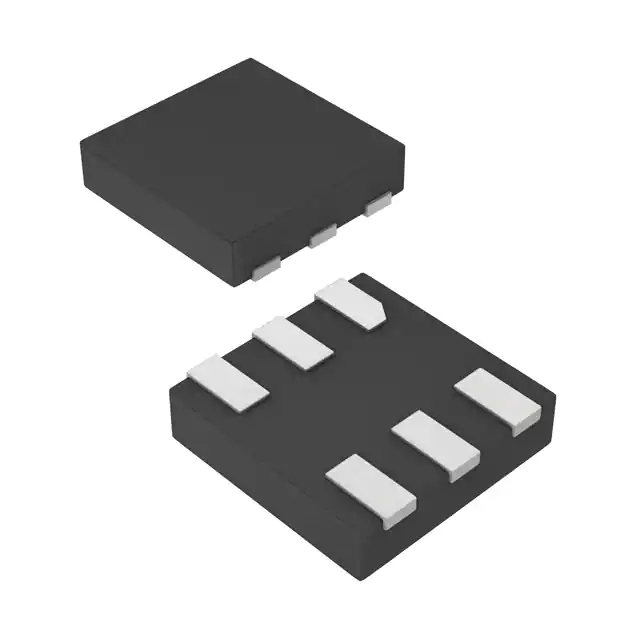

ESDA6V1-5T6TVS DIODE 3VWM 6UDFN |
4,448 |
|
Datasheet | 6-UFDFN | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 3V | 6.1V | - | - | 35W | No | General Purpose | - | - | - | - | Surface Mount | 6-MicroDFN (1x1) |
|
MAZT068H0LTVS DIODE 4VWM SSMINI3-F2 |
3,540 |
|
Datasheet | SC-89, SOT-490 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 4V | 6.4V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | SSMini3-F2 |
|
SMAJ15AHM3_A/ITVS DIODE 15VWM 24.4VC DO214AC |
2,353 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ28AHM3_A/ITVS DIODE 28VWM 45.4VC DO214AC |
7,149 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ30AHM3_A/ITVS DIODE 30VWM 48.4VC DO214AC |
2,687 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ58AHM3_A/ITVS DIODE 58VWM 93.6VC DO214AC |
5,987 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SM24BHE3A-TPInterface |
3,877 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Last Time Buy | Zener | - | 2 | 24V (Max) | 27V | 50V | 4A (8/20µs) | 300W | No | - | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
AOZ8208DI-05TVS DIODE 5VWM 9VC 8-DFN |
7,422 |
|
Datasheet | 8-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 8 | - | 5V (Max) | 6V | 9V | 5A (8/20µs) | - | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (1.8x1.2) |
|
AOZ8302CI-12TVS DIODE 12VWM 19VC SOT23A-3 |
7,480 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 12V (Max) | 13V | 19V | 24A (8/20µs) | 450W | No | Ethernet, Telecom | 25pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23A-3 |
|
SMBJ51CAQ-13-FTVS DIODE 51VWM 82.4VC SMB |
5,137 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 7.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
;;2.jpg "SMA4F188A")
|
SMA4F188ATVS DIODE 188VWM 328VC SMAFLAT |
9,242 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 188V (Max) | 209V | 328V | 1.4A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SDT26A24L05TVS ESD SOT23-6L 24V 50VE |
4,801 |
|
Datasheet | SOT-23-6 | SDT26AXXL05 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 5 | - | 24V | 26.7V | 50V | 7A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
|
SDT26A15L05TVS ESD SOT23-6L 15V 35VE |
2,280 |
|
Datasheet | SOT-23-6 | SDT26AXXL05 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 5 | - | 15V | 16.7V | 35V | 10A (8/20µs) | 350W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
|
P4SMA36A-M3/5ATVS DIODE 30.8VWM 49.9VC DO214AC |
2,996 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
NUP3105L-AQTVS DIODE 32VWM 70VC SOT-23-3 |
6,143 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 32V | 35.6V | 70V | 7.2A (8/20µs) | 500W | No | CAN | 30pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
SMBJ58AHE3-TPInterface |
3,724 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.4A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ54AHE3-TPInterface |
6,195 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 54V | 60V | 87.1V | 6.9A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | - | Surface Mount | DO-214AA (SMB) |
|
SA8V5ATVS DIODE 8.5VWM 14.4VC DO15 |
9,800 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 34.7A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
P6KE150CA-TPTVS DIODE 128VWM 207VC DO15 |
4,418 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 128V | 143V | 207V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
P6KE110CA-TPTVS DIODE 94VWM 152VC DO15 |
6,692 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 94V | 105V | 152V | 4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
