TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ5.0CAHE3_A/ITVS DIODE 5VWM 9.2VC DO214AC |
5,041 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 43.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ51CAHE3_A/ITVS DIODE 51VWM 82.4VC DO214AC |
6,406 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 4.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ54CAHE3_A/ITVS DIODE 54VWM 87.1VC DO214AC |
6,905 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 4.6A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ58CAHE3_A/ITVS DIODE 58VWM 93.6VC DO214AC |
5,307 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 4.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ6.0CAHE3_A/ITVS DIODE 6VWM 10.3VC DO214AC |
3,821 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 38.8A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ6.5CAHE3_A/ITVS DIODE 6.5VWM 11.2VC DO214AC |
9,185 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ60CAHE3_A/ITVS DIODE 60VWM 96.8VC DO214AC |
8,462 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 4.1A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ64CAHE3_A/ITVS DIODE 64VWM 103VC DO214AC |
4,754 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 3.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ7.0CAHE3_A/ITVS DIODE 7VWM 12VC DO214AC |
4,384 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 33.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ7.5CAHE3_A/ITVS DIODE 7.5VWM 12.9VC DO214AC |
5,661 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 31A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ70CAHE3_A/ITVS DIODE 70VWM 113VC DO214AC |
5,153 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 3.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ75CAHE3_A/ITVS DIODE 75VWM 121VC DO214AC |
6,783 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 75V | 83.3V | 121V | 3.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ78CAHE3_A/ITVS DIODE 78VWM 126VC DO214AC |
8,454 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 3.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ8.0CAHE3_A/ITVS DIODE 8VWM 13.6VC DO214AC |
3,925 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 29.4A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ85CAHE3_A/ITVS DIODE 85VWM 137VC DO214AC |
8,262 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94.4V | 137V | 2.2A | 300W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ90CAHE3_A/ITVS DIODE 90VWM 146VC DO214AC |
3,534 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 2.1A | 300W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
UCLAMP0541Z.TVTTVS DIODE 5VWM 15VC SLP0603P2X3 |
6,884 |
|
Datasheet | 0201 (0603 Metric) | uClamp® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 6V | 15V | 2A (8/20µs) | 25W | No | General Purpose | 6.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP0603P2X3 |
|

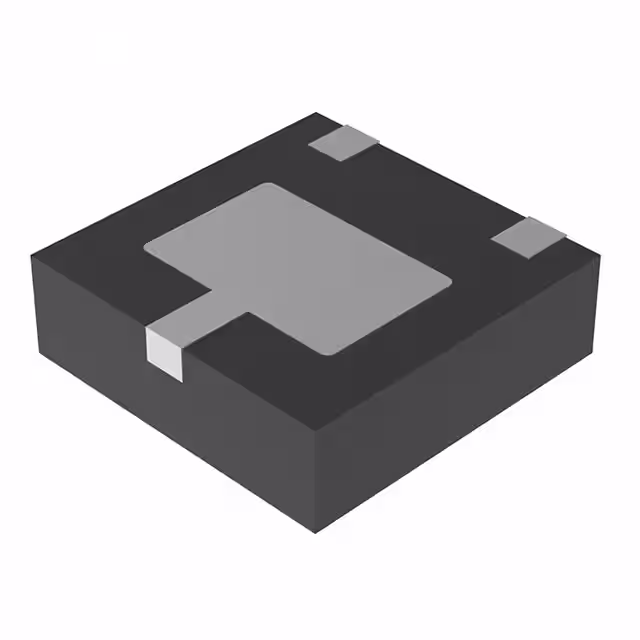

D24V0S1UG3LP20-7SURGE PROTECTION PP U-DFN2020-3( |
5,818 |
|
Datasheet | 3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 25V | 32V | 200A (8/20µs) | 5680W (5.68kW) | No | General Purpose | 630pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-3 (Type C) |
|
|
TPSMA24AHM3_B/ITVS DIODE 20.5VWM 33.2VC DO214AC |
6,438 |
|
Datasheet | DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 12A | 400W | No | Telecom | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
TPSMA43AHM3_B/ITVS DIODE 36.8VWM 59.3VC DO214AC |
4,736 |
|
Datasheet | DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 6.7A | 400W | No | Telecom | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
