TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBT70AQ-13-FLINEAR IC |
4,173 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 100V | 5.3A | 600W | No | - | 290pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
CPDT-36VUB-HFTVS DIODE 36VWM 75VC SOT23 |
2,471 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 40V | 75V | 5A | 350W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
1SMB45AT3TVS DIODE 45VWM 72.7VC SMB |
5,838 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | 385pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6KE56A-TPInterface |
3,775 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 7.8A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE91A-TPInterface |
7,363 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 4.8A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE47A-TPInterface |
7,490 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 9.3A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE22A-TPInterface |
5,362 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 20A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
SMF78CATVS SOD123FL 78V 200W BIDIR |
2,341 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 1.4A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF11CATVS SOD123FL 11V 200W BIDIR |
9,617 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 11A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF45CATVS SOD123FL 45V 200W BIDIR |
7,064 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 2.8A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF17CATVS SOD123FL 17V 200W BIDIR |
4,471 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 7.2A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF64CATVS SOD123FL 64V 200W BIDIR |
7,163 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 1.7A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF70CATVS SOD123FL 70V 200W BIDIR |
4,400 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 1.5A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
P6KE56CA-TPInterface |
6,514 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 7.8A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
D15V0S1U3LP20-7TVS DIODE 15VWM 24.6VC 3DFN |
9,370 |
|
Datasheet | 3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | 24.6V | 13A | 4000W (4kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-3 (Type C) |
|

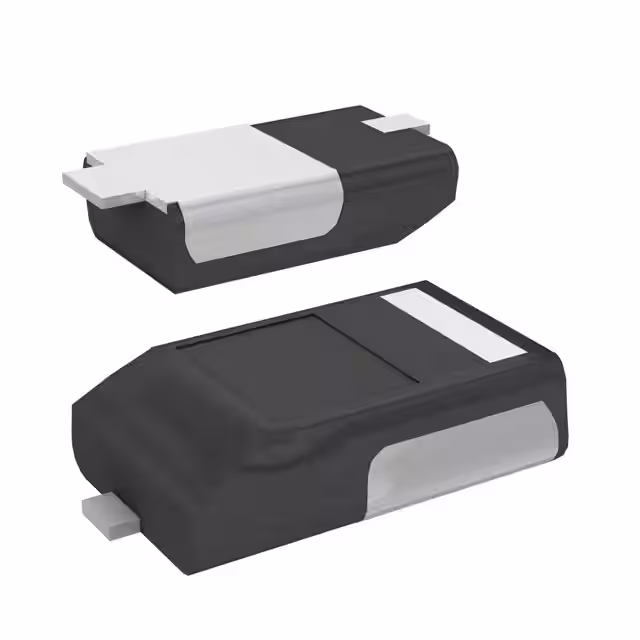

SMM4F12AVCLTVS DIODE 12VWM 22.9V STMITE FLT |
9,307 |
|
Datasheet | DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13V | 22.9V | 100A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | STmite Flat |
;;2.jpg "SM6T100A-M3/52")
|
SM6T100A-M3/52TVS DIODE 85.5VWM 137VC DO214AA |
8,425 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SM6T10A-M3/52TVS DIODE 8.55VWM 14.5VC DO214AA |
4,206 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.55V | 9.5V | 14.5V | 41A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SM6T12A-M3/52TVS DIODE 10.2VWM 16.7VC DO214AA |
9,757 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 36A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SM6T150A-M3/52TVS DIODE 128VWM 207VC DO214AA |
2,167 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 128V | 143V | 207V | 2.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
