TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4KE7.5CATVS DIODE 6.4VWM 11.3VC DO-204AC |
6,865 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 6.4V | 7.13V | 11.3V | 37A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
BZW04-8V5BTVS DIODE 8.55VWM 14.5VC DO204AC |
7,785 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 8.55V | 9.5V | 14.5V | 27.6A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg "P6KE6.8CA")
|
P6KE6.8CATVS DIODE 5.8VWM 10.5VC DO-204AC |
8,330 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 60A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
BZW04-7V0BTVS DIODE 7.02VWM 12.1VC DO204AC |
8,294 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 7.02V | 7.79V | 12.1V | 33A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMBJE90AHTVS DIODE 90VWM 146VC UNI |
6,482 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 4.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
.jpg "SMBJE6-5CAH")
|

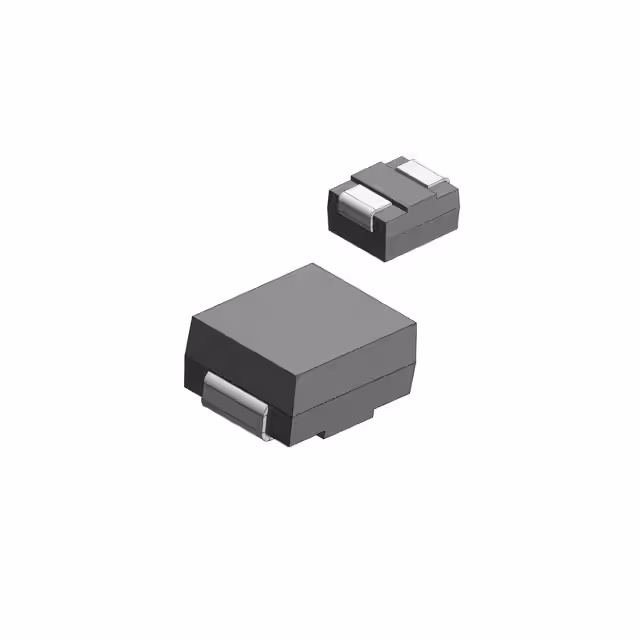

SMBJE6-5CAHTVS DIODE 6.5VWM 11.2VC BI |
5,527 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE160CAHTVS DIODE 160VWM 259VC BI |
6,192 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 160V | 178V | 259V | 2.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE60CAHTVS DIODE 60VWM 96.8VC BI |
4,379 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE130AHTVS DIODE 130VWM 209VC UNI |
9,318 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE75AHTVS DIODE 75VWM 121VC UNI |
7,455 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE170CAHTVS DIODE 170VWM 275VC BI |
7,320 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 2.2A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE9-0AHTVS DIODE 9VWM 15.4VC UNI |
4,235 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 9V | 10V | 15.4V | 39A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE11CAHTVS DIODE 11VWM 18.2VC BI |
5,215 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 33A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE85CAHTVS DIODE 85VWM 137VC BI |
3,371 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 85V | 94.4V | 137V | 4.4A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE150AHTVS DIODE 150VWM 243VC UNI |
7,212 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 2.5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE7-0CAHTVS DIODE 7VWM 12VC BI |
7,948 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 7V | 7.78V | 12V | 50A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE100CAHTVS DIODE 100VWM 162VC BI |
8,103 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 3.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE160AHTVS DIODE 160VWM 259VC UNI |
6,674 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 2.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE11AHTVS DIODE 11VWM 18.2VC UNI |
7,059 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 33A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE8-0AHTVS DIODE 8VWM 13.6VC UNI |
5,276 |
|
Datasheet | DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 8V | 8.89V | 13.6V | 44.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
