TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ160AHE3_A/ITVS DIODE 160VWM 259VC DO214AC |
8,079 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 1.2A | 300W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ6.5AHE3_A/ITVS DIODE 6.5VWM 11.2VC DO214AC |
2,585 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ78AHE3_A/ITVS DIODE 78VWM 126VC DO214AC |
2,690 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|

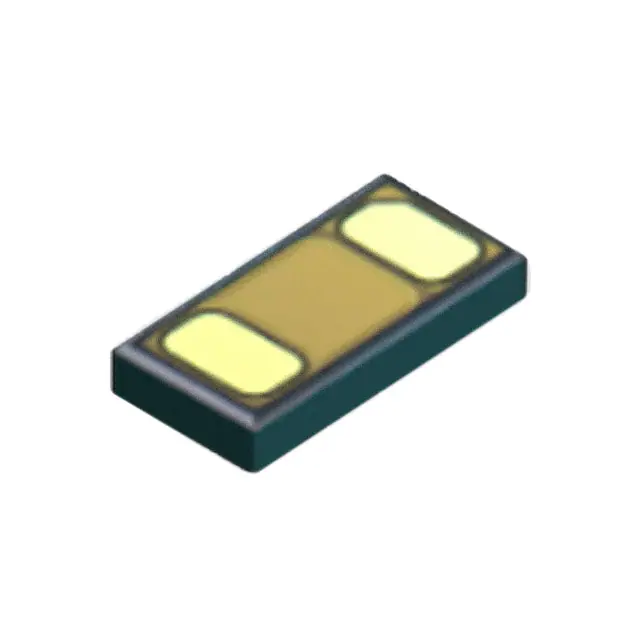

DY2L3A0C0L1TVS DIODE 3VWM 10VC 0201 |
3,694 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 3V (Max) | 5.39V | 10V | 2.6A (8/20µs) | 23W | No | General Purpose | 8.5pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 0201 (0603 Metric) |
|
P6KE200A-BPInterface |
8,400 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE220A-BPInterface |
4,917 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 185V | 209V | 328V | 1.9A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
SMFE48CALHTVS DIODE 48VWM BI |
5,389 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 5.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE18CALHTVS DIODE 18VWM BI |
2,192 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 13.7A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE45ALHTVS DIODE 45VWM 80VC UNI |
8,795 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE13CALHTVS DIODE 13VWM BI |
3,399 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 18.6A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE15CALHTVS DIODE 15VWM BI |
4,612 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE40CALHTVS DIODE 40VWM BI |
2,860 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE11CALHTVS DIODE 11VWM BI |
6,468 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 22A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE33CALHTVS DIODE 33VWM BI |
5,760 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE14ALHTVS DIODE 14VWM 25VC UNI |
7,396 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE45CALHTVS DIODE 45VWM BI |
9,699 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 5.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE18ALHTVS DIODE 18VWM UNI |
8,309 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 13.7A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE43CALHTVS DIODE 43VWM BI |
2,450 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 5.8A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE36CALHTVS DIODE 36VWM BI |
9,323 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 6.9A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE22CALHTVS DIODE 22VWM BI |
5,263 |
|
Datasheet | SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 11.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
