TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4SMA62CA-M3/61TVS DIODE 53VWM 85VC DO214AC |
4,570 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 53V | 58.9V | 85V | 4.7A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

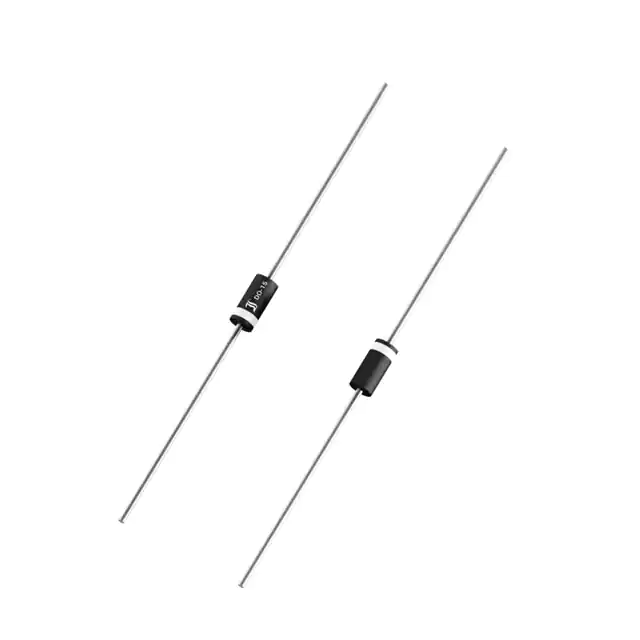

P4KE33CA-AQTVS DIODE 28.2VWM 45.7VC DO204AC |
2,421 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 9A | 400W | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
|
DRTR5V0U2SRQ-7Dataline Protection PP SOT143 T& |
4,398 |
|
Datasheet | TO-253-4, TO-253AA | - | Bulk | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | 7V | 5A (8/20µs) | - | Yes | DVI, HDMI, USB | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-143 |
|
AOZ8005CILTVS DIODE 5VWM 16VC SOT23-6 |
4,725 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V | 6.6V | 16V | 12A (100ns) | - | Yes | Ethernet, HDMI | 1pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
AOZ8234DI-05TVS DIODE 5VWM 15VC 6DFN |
8,434 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 4 | 2 | 5V (Max) | 6V | 15V | 25A | - | No | General Purpose | 13.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (1.45x1.0) |
|
|
AOZ8244DI-05TVS DIODE 5VWM 20VC 3DFN |
9,994 |
|
Datasheet | 3-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 5V (Max) | - | 20V | 15A | - | No | General Purpose | - | - | - | - | Surface Mount | 3-DFN (1.0 x 0.60) |
|
|
ESDSBLC24VT2BHE3-TPESD,24V,SOT-23 |
6,667 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 105V | 27V | 2.5A (8/20µs) | - | No | - | 2pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
P4SMA36AHE3_A/ITVS DIODE 30.8VWM 49.9VC DO214AC |
9,354 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 8A | 400W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6SMB8-2CATVS DIODE 7.02VWM 12.1VC SMB |
8,769 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 7.02V | 7.79V | 12.1V | 5.4A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB24CATVS DIODE 20.5VWM 33.2VC SMB |
5,786 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 18.4A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB13CATVS DIODE 11.1VWM 18.2VC SMB |
8,623 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 33.5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB22CATVS DIODE 18.8VWM 30.6VC SMB |
7,758 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 18.8V | 20.9V | 30.6V | 19.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB51CATVS DIODE 43.6VWM 70.1VC SMB |
2,920 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P4SMA130CAHE3_A/HTVS DIODE 111VWM 179VC DO214AC |
5,325 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 111V | 124V | 179V | 1.7A | 300W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J14A-QTVS DIODE 14VWM 23.2VC DO214AC |
7,868 |
|
Datasheet | DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J9.0A-QTVS DIODE 9VWM 15.4VC DO214AC |
5,366 |
|
Datasheet | DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 39A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J11A-QTVS DIODE 11VWM 18.2VC DO214AC |
9,227 |
|
Datasheet | DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 33A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J7.5A-QTVS DIODE 7.5VWM 12.9VC DO214AC |
4,038 |
|
Datasheet | DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J6.5A-QTVS DIODE 6.5VWM 11.2VC DO214AC |
6,507 |
|
Datasheet | DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J17A-QTVS DIODE 17VWM 27.6VC DO214AC |
2,422 |
|
Datasheet | DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 21.8A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
