TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

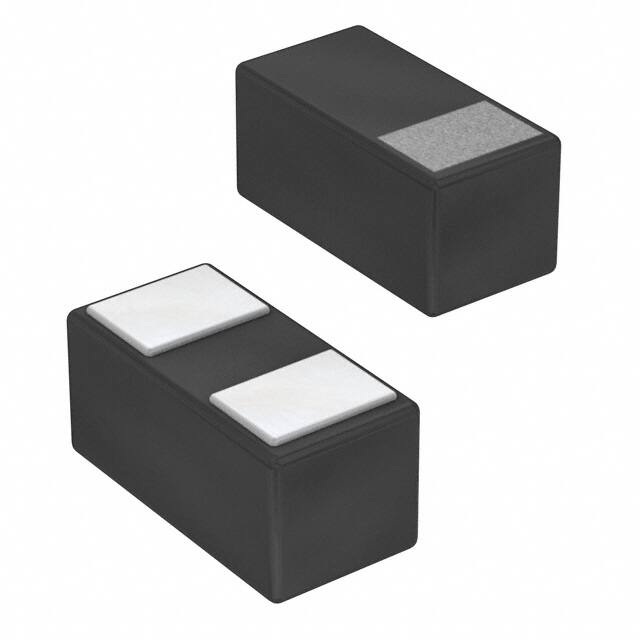

LAQ02A05L01TVS ESD, 0201, 5V, 15V, REEL |
2,444 |
|
Datasheet | 0201 (0603 Metric) | LAQ02AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 3A (8/20µs) | - | No | General Purpose | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
SMA6F51AH600W, 60V, 5%, UNIDIRECTIONAL, T |
3,733 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 57V | 82.8V | 7.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F22AH600W, 25.9V, 5%, UNIDIRECTIONAL, |
9,333 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.6V | 35.7V | 16.8A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F36AH600W, 42.4V, 5%, UNIDIRECTIONAL, |
9,467 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40.2V | 58.4V | 10.3A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F56AH600W, 65.9V, 5%, UNIDIRECTIONAL, |
9,335 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 56V | 62.6V | 90.9V | 6.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F39AH600W, 45.9V, 5%, UNIDIRECTIONAL, |
8,277 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 39V | 43.6V | 63.3V | 9.5A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F40AH600W, 47.1V, 5%, UNIDIRECTIONAL, |
3,380 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.7V | 64.9V | 9.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F60AH600W, 70.6V, 5%, UNIDIRECTIONAL, |
6,068 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 67.1V | 97.4V | 6.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F24AH600W, 28.2V, 5%, UNIDIRECTIONAL, |
2,201 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.8V | 39V | 15.4A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F33AH600W, 38.9V, 5%, UNIDIRECTIONAL, |
6,801 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.9V | 53.6V | 11.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F26AH600W, 30.6V, 5%, UNIDIRECTIONAL, |
9,402 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 29.1V | 42.2V | 14.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F25AH600W, 29.4V, 5%, UNIDIRECTIONAL, |
8,608 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 25V | 27.9V | 40.6V | 14.8A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F47AH600W, 55.3V, 5%, UNIDIRECTIONAL, |
4,836 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 47V | 52.5V | 76.3V | 7.9A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F12AH600W, 14.1V, 5%, UNIDIRECTIONAL, |
4,356 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.4V | 19.5V | 30.8A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F21AH600W, 24.7V, 5%, UNIDIRECTIONAL, |
5,272 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 21V | 23.5V | 34.1V | 17.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
SMF33ATVS DIODE 33VWM SOD123FL |
3,294 |
|
Datasheet | SOD-123F | SMF | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 3.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL | |
|
P4SMA400ATVS DIODE 342VWM 548VC DO-214AC |
6,653 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 342V | 380V | 548V | 730mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA350ATVS DIODE 300VWM 482VC DO-214AC |
5,385 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 300V | 332V | 482V | 830mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P4KE170CATVS DIODE 145VWM 234VC DO-204AC |
4,964 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 145V | 162V | 234V | 1.8A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P4KE160CATVS DIODE 136VWM 219VC DO-204AC |
6,667 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 136V | 152V | 219V | 1.9A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
