TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF43A-HM3_A08ESD PROTECTION DIODE SMF DO219AB |
3,977 |
|
Datasheet | DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 2.9A | 200W | No | - | 165pF @ 1MHz | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
|
SMF7V0A-HM3_A08ESD PROTECTION DIODE SMF DO219AB |
2,687 |
|
Datasheet | DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 16.7A | 200W | No | - | 843pF @ 1MHz | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
|
SMF7V5A-HM3_A08ESD PROTECTION DIODE SMF DO219AB |
7,504 |
|
Datasheet | DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 15.5A | 200W | No | - | 773pF @ 1MHz | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
SMAJE180AHTVS DIODE 180VWM UNI |
3,459 |
|
Datasheet | DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 180V | 201V | 292V | 1.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE220AHTVS DIODE 220VWM UNI |
8,786 |
|
Datasheet | DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 220V | 246V | 356V | 1.1A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE200AHTVS DIODE 200VWM UNI |
7,553 |
|
Datasheet | DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 200V | 224V | 324V | 1.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE220CAHTVS DIODE 220VWM BI |
9,407 |
|
Datasheet | DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 220V | 246V | 356V | 1.1A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE180CAHTVS DIODE 180VWM BI |
6,375 |
|
Datasheet | DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 180V | 201V | 292V | 1.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
P4SMAJ11ADF-13TVS DIODE 11VWM 18.2VC D-FLAT |
9,657 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 22A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ14ADF-13TVS DIODE 14VWM 23.2VC D-FLAT |
3,160 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ17ADF-13TVS DIODE 17VWM 27.6VC D-FLAT |
8,830 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ64ADF-13TVS DIODE 64VWM 103VC D-FLAT |
8,670 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 3.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ7.0ADF-13TVS DIODE 7VWM 12VC D-FLAT |
6,858 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ8.0ADF-13TVS DIODE 8VWM 13.6VC D-FLAT |
6,284 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 29.4A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ8.5ADF-13TVS DIODE 8.5VWM 14.4VC D-FLAT |
8,845 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 27.7A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ85ADF-13TVS DIODE 85VWM 137VC D-FLAT |
7,373 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 2.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|

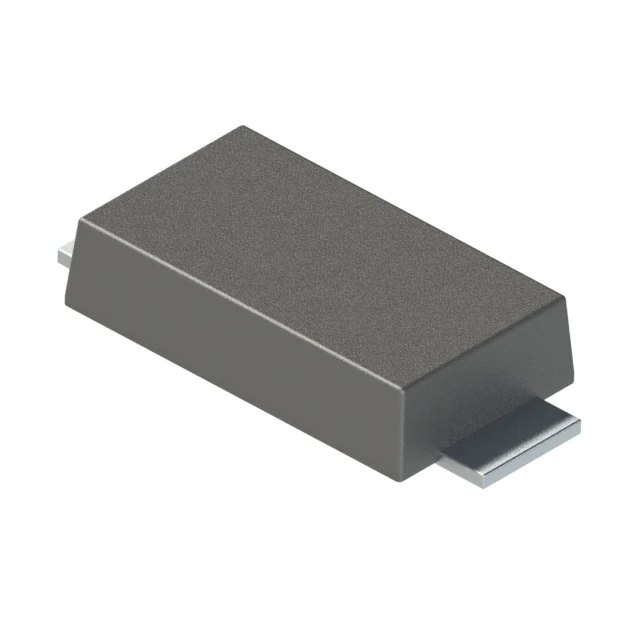

P4SMAJ58ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
8,330 |
|
Datasheet | 2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ54ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
9,533 |
|
Datasheet | 2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 4.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ48ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
4,674 |
|
Datasheet | 2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ78ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
8,772 |
|
Datasheet | 2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
