TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPD5E003DPFRTVS DIODE 5VWM 19.5VC 6X2SON |
34,572 |
|
Datasheet | 6-XFDFN | - | Tape & Reel (TR) | Active | Zener | 5 | 4 | 5V (Max) | 6V | 19.5V | 3A (8/20µs) | 40W | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-X2SON (1x1) |
|
ESDALC6V1-5M6TVS DIODE 3VWM 6UQFN |
28,667 |
|
Datasheet | 6-UFDFN | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 5 | - | 3V | 6.1V | - | - | 30W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-µQFN (1.45x1.0) |
.jpg "TPSMB18A")
|
TPSMB18ATVS DIODE 15.3VWM 25.5VC DO214AA |
27,199 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.5V | 24.2A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
SMCJ100CATVS DIODE 100VWM 162VC DO214AB |
21,819 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
VESD05A6-HAF-GS08TVS DIODE 5VWM 12VC LLP75-7L |
21,650 |
|
Datasheet | 6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 6 | - | 5V (Max) | 6V | 12V | 5A (8/20µs) | 60W | No | General Purpose | 40pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-7L |
|
UCLAMP2101T.TNTUCLAMP, 2.1V 100PF 5A ESD SLF100 |
21,252 |
|
Datasheet | 0402 (1006 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 2.1V | - | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | DFN1006-2 |
|
1KSMB36ATVS DIODE 30.8VWM 49.9VC DO214AA |
13,494 |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 20A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
1.5KE220CATVS DIODE 185VWM 328VC DO201 |
11,948 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 185V | 209V | 328V | 4.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SZ1SMB26AT3GTVS DIODE 26VWM 42.1VC SMB |
11,256 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.2A | 600W | No | - | 630pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMBJ28ATVS DIODE 28VWM 45.4VC DO214AA |
10,862 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 13.3A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMA6J12CA-TRTVS DIODE 12VWM 23.5VC SMA |
10,180 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 23.5V | 157A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J5.0CA-TRTVS DIODE 5VWM 13.4VC SMA |
9,845 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 13.4V | 298A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD4USB5U-TTSXTVS DIODE 5VWM 3.5VC DFN2510D-10 |
9,670 |
|
Datasheet | 10-WFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 3.5V (Typ) | 7A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN2510D-10 |
|
PESD3V3S5UD,115TVS DIODE 3.3VWM 12VC 6TSOP |
9,513 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 3.3V (Max) | 5.3V | 12V | 20A (8/20µs) | 200W | No | General Purpose | 215pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
P6KE36A-E3/54TVS DIODE 30.8VWM 49.9VC DO204AC |
8,817 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

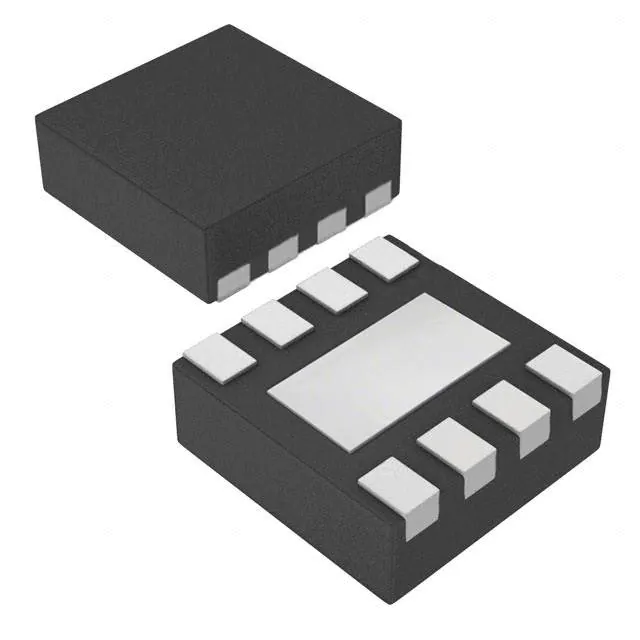

TPD8E003DQDRTVS DIODE 10VC 8-WSON |
8,758 |
|
Datasheet | 8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 8 | - | - | 6V | 10V | 2A (8/20µs) | 55W | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-WSON (1.7x1.35) |
|
|
P6KE33A-E3/54TVS DIODE 28.2VWM 45.7VC DO204AC |
8,259 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TPD2E2U06QDCKRQ1TVS DIODE 5.5VWM 12.4VC SC70-3 |
7,477 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | 6.5V | 12.4V (Typ) | 5.5A (8/20µs) | 75W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-3 |
|
ESDA14V2SC6TVS DIODE 12VWM SOT23-6 |
6,909 |
|
Datasheet | SOT-23-6 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 4 | - | 12V | 14.2V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
TPSMA6L12ATVS SMAF 12V 600W UNIDIR |
6,515 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
