TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF90A-HFDIODE TVS 200W 90V UNI-DIRECTION |
8,758 |
|
Datasheet | SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 1.37A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF30CA-HFDIODE TVS 200W 30V BI-DIRECTIONA |
2,447 |
|
Datasheet | SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 4.13A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF15A-HFDIODE TVS 200W 15V UNI-DIRECTION |
7,960 |
|
Datasheet | SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 8.2A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF40CA-HFDIODE TVS 200W 40V BI-DIRECTIONA |
6,459 |
|
Datasheet | SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 3.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF24A-HFDIODE TVS 200W 24V UNI-DIRECTION |
6,417 |
|
Datasheet | SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 5.14A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF19CA-HFDIODE TVS 200W 19V BI-DIRECTIONA |
2,709 |
|
Datasheet | SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | - | 1 | 19V | 21.1V | 30.6V | 6.54A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
PESD5V0U1UB-QXPESD5V0U1UB-Q/SOD523/SC-79 |
8,293 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | - | - | - | No | Ethernet, Telecom, USB | 2pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
PESD5V0U1BA-QXPESD5V0U1BA-Q/SOD323/SOD2 |
7,340 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | - | - | - | No | Ethernet, Telecom | 2.9pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
PESD5V0U1UA-QXPESD5V0U1UA-Q/SOD323/SOD2 |
9,820 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 11V | 13A (8/20µs) | - | No | Ethernet, Telecom, USB | 2pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
DESD1P0RFWQ-7TVS DIODE 70VWM 8VC SOT323 |
9,082 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 1 | - | 70V (Max) | - | 8V | 15A (8/20µs) | - | No | - | 1pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
AOZ8S202UD4-034CH 3.3V 0.2PF UNIDIRECTIONAL TV |
5,952 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 6V | 11V | 15A | - | No | HDMI, USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
AOZ8205DITVS DIODE 5VWM 7.5VC 6DFN |
8,513 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5V (Max) | 6V | 7.5V | 5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (1.6x1.6) |
|
SA100ATVS DIODE 100VWM 162VC DO15 |
6,710 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 100V | 111V | 162V | 3.1A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
SA54ATVS DIODE 54VWM 87.1VC DO15 |
6,010 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 54V | 60V | 87.1V | 5.7A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
SA58ATVS DIODE 58VWM 93.6VC DO15 |
7,923 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 58V | 64.4V | 93.6V | 5.3A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
SA90ATVS DIODE 90VWM 146VC DO15 |
3,582 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 90V | 100V | 146V | 3.4A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
TV04A101JB-GTVS DIODE 100VWM 162VC SMA |
8,144 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 2.47A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
CPDQ03C5V0USP-HFTVS DIODE 5VWM 16VC 0402C-03 |
3,974 |
|
Datasheet | SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 16V | 3A (8/20µs) | 48W | No | General Purpose | 0.6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0402C-03/SOT-883 |
|
|
SMAJ15CAV-TPTVS |
9,438 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

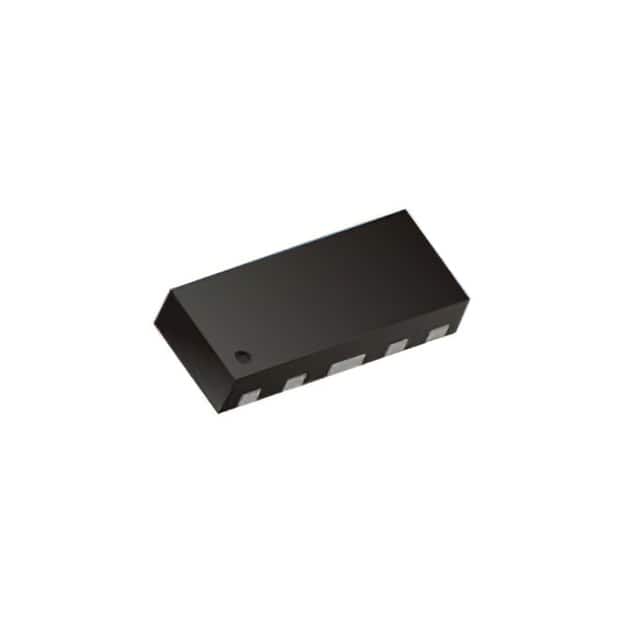

CPDVR103V3UA-HFDIODE ESD 3.3VWM 10VC DFN2510 |
9,267 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 4.2V | 14V | 4A (8/20µs) | 56W | Yes | General Purpose | 0.4pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | DFN2510 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
