TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDSLC12VD3B-TPESD,12V,SOD-323 |
5,269 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 28V | 19A (8/20µs) | 500W | No | General Purpose | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

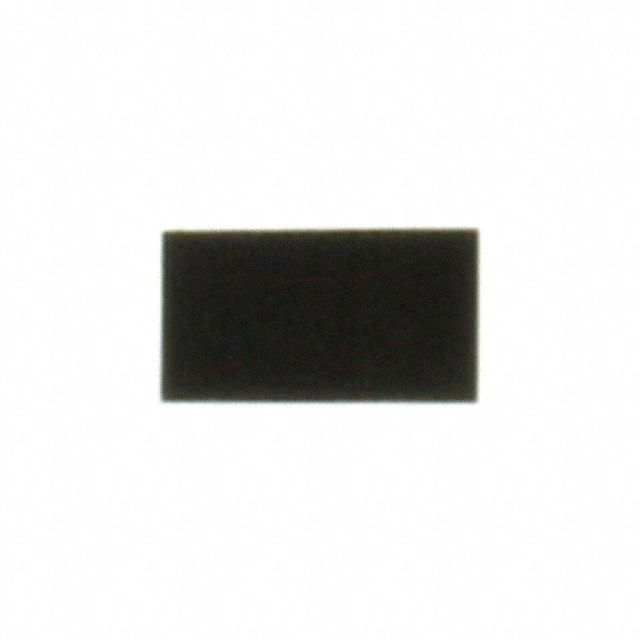

CPDU12V0UTVS DIODE 12VWM 24V 0603/SOD523F |
4,673 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 120W | No | General Purpose | 60pF @ 1MHz | - | - | - | Surface Mount | 0603/SOD-523F |
|
|
BZD27B4V3P-HM3_A08ZENER DIODE SMF DO219AB |
5,560 |
|
Datasheet | DO-219AB | BZD27B, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 1V (Max) | 4.21V | - | - | 150W | No | - | - | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
GSOT04C-G3-18TVS DIODE 4VWM 14.3VC SOT23 |
3,782 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 4V (Max) | 5V | 14.3V | 30A (8/20µs) | 429W | No | General Purpose | 310pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT08C-G3-18TVS DIODE 8VWM 19.2VC SOT23 |
8,228 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT12C-G3-18TVS DIODE 12VWM 26VC SOT23 |
3,798 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | General Purpose | 115pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT15C-G3-18TVS DIODE 15VWM 28.8VC SOT23 |
8,304 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 15V (Max) | 16.5V | 28.8V | 8A (8/20µs) | 345W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
BZA420A,165TVS DIODE 20VWM 28VC 6TSOP |
4,127 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 20V | - | 28V | - | 19.6W | No | General Purpose | 48pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
|
BZA420A,135TVS DIODE 20VWM 28VC 6TSOP |
9,725 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 20V | - | 28V | - | 19.6W | No | General Purpose | 48pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
DESD1P0RFW-7TVS DIODE 70VWM 8VC SOT323 |
2,242 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 1 | - | 70V (Max) | - | 8V | 15A (8/20µs) | - | No | General Purpose | 1pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
P4SMA20A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
4,035 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 17.1V | 19V | 27.7V | 15A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA11A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,450 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 9.4V | 10.5V | 15.6V | 27A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA130A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,147 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 111V | 124V | 179V | 2.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA110A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,385 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 94V | 105V | 152V | 2.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA100A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
5,486 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 85.5V | 95V | 137V | 3.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA13A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
7,273 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 23A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA120A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,907 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 102V | 114V | 165V | 2.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA160A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,716 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 136V | 152V | 219V | 1.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
AOZ8905CITVS DIODE 5VWM 15.5VC SOT23-6 |
8,860 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15.5V | 1A (8/20µs) | - | Yes | HDMI | 0.7pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
ESDN4V5D3B-TPInterface |
5,154 |
|
Datasheet | SC-76, SOD-323 | - | Bulk | Active | Zener | - | 1 | 4.5V (Max) | 4.7V | 15V | 135A (8/20µs) | 2000W (2kW) | No | General Purpose | 300pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
