TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

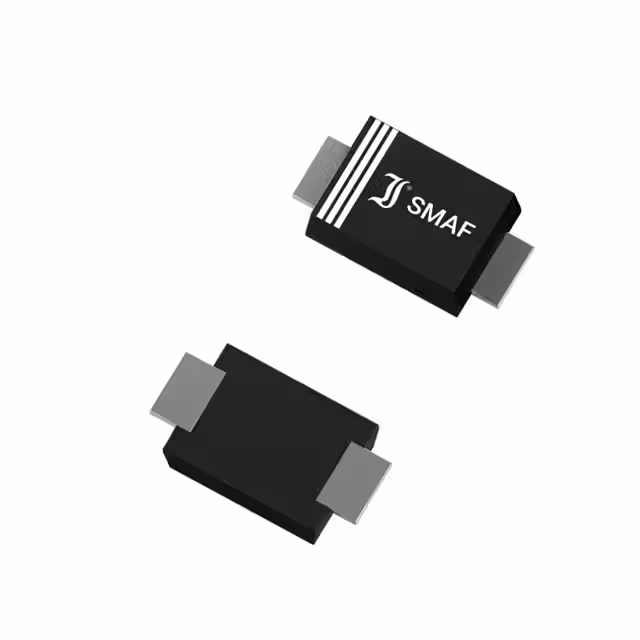

TPSMA6L18A-AQTVS DIODE 18VWM 29.2VC SMAF |
3,841 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Bulk | Active | Zener | 1 | - | 18V | 20V | 29.2V | 20.5A | 600W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAF |
|
|
TPSMA6L13A-AQTVS DIODE 13VWM 21.5VC SMAF |
7,754 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Bulk | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 27.9A | 600W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAF |
|
TPSMA6L33A-AQTVS DIODE 33VWM 53.3VC SMAF |
9,247 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Bulk | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAF |
|
|
TPSMA6L5.0A-AQTVS DIODE 5VWM 9.2VC SMAF |
4,975 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Bulk | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAF |
|
TPSMA6L22A-AQTVS DIODE 22VWM 35.5VC SMAF |
3,133 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Bulk | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 16.9A | 600W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAF |
|
|
TPSMA6L30A-AQTVS DIODE 30VWM 48.4VC SMAF |
6,741 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAF |
|
|
TESDS5V0ASOT-26, 5V, 350W, 1.2PF, ESD PRO |
6,306 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 25V | 2A (8/20µs) | 350W | Yes | General Purpose | 1.2pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
|
XBP1007-GTVS DIODE 24VWM 43VC SOD323P |
9,308 |
|
Datasheet | SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 27.27V | 43V | 1A (8/20µs) | 350W | Yes | DVI, Ethernet, USB | 3pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323P |
|
|
PESD42VS2UT-QRPESD42VS2UT-Q/SOT23/TO-236AB |
9,622 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 42V (Max) | 46.1V | 95V | 1.8A (8/20µs) | - | No | - | 17pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
UAD20A05L04TVS ESD QFN-2010 5V 15V |
2,187 |
|
Datasheet | 10-UFDFN | UAD20A05L04 | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 15V | 4A (8/20µs) | - | No | DVI, HDMI | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2010 |
|
|
UAD11A05L03TVS ESD QFN-1109 5V 15V |
4,068 |
|
Datasheet | 6-UFDFN | UAD11A05L03 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5V (Max) | 6V | 15V (Typ) | 2A (8/20µs) | - | Yes | General Purpose | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1109 |
|
|
P6SMAJ22ATVS DIODE 22VWM 35.5VC DO-214AC |
3,779 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 16.9A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
GSOT03-HG3-18TVS DIODE 3.3VWM 12.3VC SOT23 |
4,691 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | - | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT04-HG3-18TVS DIODE 4VWM 14.3VC SOT23 |
2,119 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 4V (Max) | 5V | 14.3V | 30A (8/20µs) | 429W | No | - | 310pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT05-HG3-18TVS DIODE 5VWM 16VC SOT23 |
2,525 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 5V (Max) | 6V | 16V | 30A (8/20µs) | 480W | No | - | 260pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT08-HG3-18TVS DIODE 8VWM 19.2VC SOT23 |
4,266 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | - | 160pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT12-HG3-18TVS DIODE 12VWM 26VC SOT23 |
3,756 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | - | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT15-HG3-18TVS DIODE 15VWM 28.8VC SOT23 |
3,985 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 15V (Max) | 16.5V | 28.8V | 8A (8/20µs) | 230W | No | - | 90pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT24-HG3-18TVS DIODE 24VWM 47VC SOT23 |
6,654 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 24V (Max) | 27V | 47V | 5A (8/20µs) | 235W | No | - | 65pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT36-HG3-18TVS DIODE 36VWM 71VC SOT23 |
3,317 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 36V (Max) | 39V | 71V | 3.5A (8/20µs) | 248W | No | - | 52pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
