TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD5V0X1ULD-QYLPESD5V0X1ULD-Q/SOD882D/XSON2 |
2,182 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 5.8V | 8V (Typ) | 1.5A (8/20µs) | - | No | Ethernet, HDMI, Telecom, USB | 0.95pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
|
PESD3V3T1BL-QYLPESD3V3T1BL-Q/SOD882/SOD2 |
9,873 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.7V | 11V | 10A (8/20µs) | - | No | - | 20pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
ESD5V0D5-T3PTVS DIODES |
8,818 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 18.6V | 9.4A (8/20µs) | 174W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESD3V3D5-T3PTVS DIODES |
4,471 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 13V | 16A (8/20µs) | 220W | No | General Purpose | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESDSBULC3V3AE2-TPTVS DIODES |
9,903 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 9.6V | 10A (8/20µs) | 96W | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|

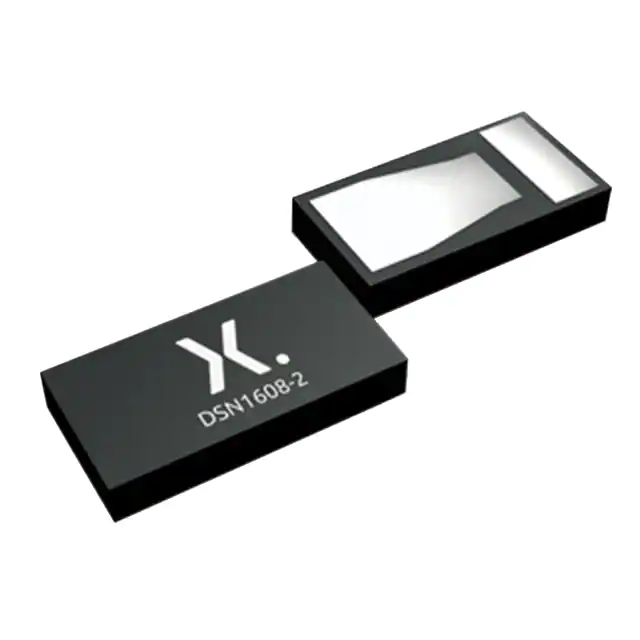

PTVS22VZ1USKYLTVS DIODE 22VWM 39.5VC |
2,102 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 24.4V | 39.5V | 5.3A | 200W | No | General Purpose | 247pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | - | - |
|
PESD3V3T1BLDYLTVS DIODE 3.3VWM 11VC DFN1006D-2 |
2,801 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.7V | 11V | 10A (8/20µs) | - | No | General Purpose | 20pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
SMF4L20ADIODE TVS 20VWM 400W UNI SMF |
5,701 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF4L30ADIODE TVS 30VWM 400W UNI SMF |
2,104 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF4L16ADIODE TVS 16VWM 400W UNI SMF |
7,415 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 16V | 17.8V | 26V | 15.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
VESD01-02V-GS08TVS DIODE 1VWM 9VC SOD523 |
4,765 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 1V | 1.5V | 9V | 7A (8/20µs) | - | No | General Purpose | 180pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
VESD12-02V-GS08TVS DIODE 12VWM 25VC SOD523 |
7,582 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 14V | 25V | 2A (8/20µs) | - | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMF7.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
5,613 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 7V | 7.8V | 12V | 16.7A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
GSOT03-G3-08TVS DIODE 3.3VWM 12.3VC SOT23 |
3,320 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | General Purpose | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT04-G3-08TVS DIODE 4VWM 14.3VC SOT23 |
5,763 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 4V (Max) | 5V | 14.3V | 30A (8/20µs) | 429W | No | General Purpose | 310pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT08-G3-08TVS DIODE 8VWM 19.2VC SOT23 |
8,857 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | General Purpose | 160pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT12-G3-08TVS DIODE 12VWM 26VC SOT23 |
8,993 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | General Purpose | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT24-G3-08TVS DIODE 24VWM 47VC SOT23 |
8,395 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 24V (Max) | 27V | 47V | 5A (8/20µs) | 235W | No | General Purpose | 65pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT36-G3-08TVS DIODE 36VWM 71VC SOT23 |
4,997 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 36V (Max) | 39V | 71V | 3.5A (8/20µs) | 248W | No | General Purpose | 52pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
D24V0X1B2LPQ-7BDATALINE PROTECTION PP X1-DFN100 |
5,801 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26V | - | - | - | No | - | - | - | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
