TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D12V0X1B2LP4Q-7BDATALINE PROTECTION PP X2-DFN100 |
3,377 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13V | 25V | 4A | 120W | No | HDMI, USB | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-2 |
|
|
D5V0X1BA2LP4Q-7BDATALINE PROTECTION PP X2-DFN100 |
9,931 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 7V | 17V | 3.5A | 120W | No | HDMI, USB | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-2 |
|
|
D8V0X1B2LP4Q-7BDATALINE PROTECTION PP X2-DFN100 |
5,525 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 9.5V | 18.5V | 4A | 120W | No | HDMI, USB | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-2 |
|
|
D7V0H1U2LPQ-7BSURGE PROTECTION PP X1-DFN1006-2 |
3,831 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 14.4V | 24A (8/20µs) | 270W | No | - | 150pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
CPDER5V0C-HFTVS DIODE 5VWM 0503/SOD723F |
8,579 |
|
Datasheet | 0503 (1308 Metric) | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 5V | 6.1V | - | - | - | No | General Purpose | 25pF @ 1MHz | - | - | - | Surface Mount | 0503/SOD-723F |
|
CPDF5V0C-HFTVS DIODE 5VWM 1005/SOD323F |
5,405 |
|
Datasheet | 1005 (2512 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.1V | - | - | - | No | General Purpose | 25pF @ 1MHz | - | - | - | Surface Mount | 1005/SOD-323F |
|
|
CBTVS2A16-1F3TVS DIODE 19VC 4FLIPCHIP |
7,288 |
|
Datasheet | 4-UFBGA, FCBGA | - | Tape & Reel (TR) | Active | - | 1 | - | - | 16V | 19V | - | 70W | No | General Purpose | 125pF @ 1MHz | 125°C (TJ) | - | - | Surface Mount | 4-FlipChip (0.77x0.77) |
|
|
D8V0H1B2LPQ-7BGENERAL PROTECTION PP DFN1006-2 |
2,224 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 8V (Max) | 8.5V | 20V | 19A (8/20µs) | 350W | No | - | 55pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
LT4ME70CATRANSIENT VOLTAGE SUPPRESSOR PP |
3,258 |
|
Datasheet | DO-219AA | LT4ME | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | - | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AA |
|
|
VMMBZ23C1DD1HG3-08ESD PROTECTION DIODE DFN1006-2B |
7,620 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PESD27VV2BT-QRPESD27VV2BT-Q/SOT23/TO-236AB |
2,324 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | Telecom | 13pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
PESD24VV2BT-QRPESD24VV2BT-Q/SOT23/TO-236AB |
2,760 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 25.5V | 42V | 3.5A (8/20µs) | - | No | Telecom | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|

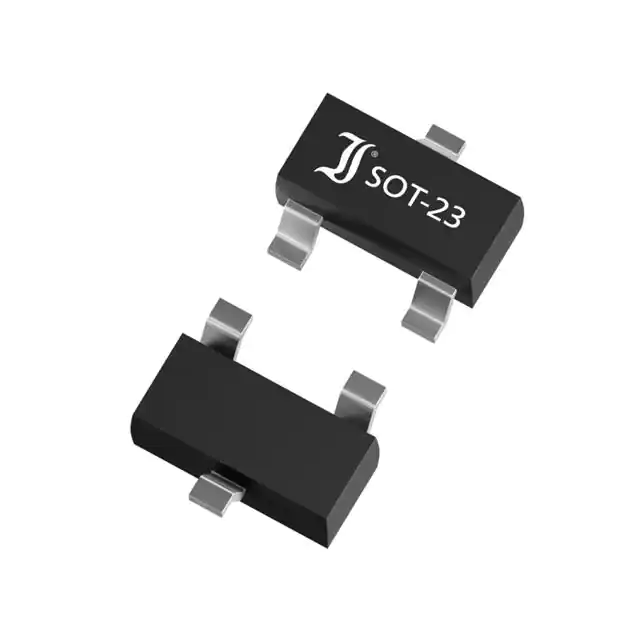

MMBZ27CA-AQTVS DIODE 22VWM 40VC SOT-23-3 |
4,828 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 22V | 25.65V | 40V | 1A | 40W | No | - | 50pF @ 1MHz | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
MMBZ18CATVS DIODE 14.5VWM 25VC SOT-23-3 |
5,862 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 1 | 14.5V | 17.1V | 25V | 1.6A | 40W | No | General Purpose | 70pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
CSPH12VL-TPInterface |
4,826 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | 1 | - | 12V (Max) | 13V | 32V | 45A (8/20µs) | 1300W (1.3kW) | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
|
ESD4V5LB-TPInterface |
4,544 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 4.5V (Max) | 4.8V | 12V | 45A (8/20µs) | 540W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
D8V0H1U2LP1610-7TVS DIODE U-DFN1610-2 |
6,243 |
|
Datasheet | 0603 (1610 Metric) | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|
P4SMA220CTVS DIODE 175VWM 344VC DO-214AC |
7,582 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | - | 1 | 175V | 198V | 344V | 1.2A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
ESDSB3V3LBHE3-TPTVS DIODES |
9,182 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 10V | 9A (8/20µs) | 90W | No | - | 14pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
ESDL3V3LBHE3-TPTVS DIODES |
5,163 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | 9V | 8A (8/20µs) | 60W | No | - | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
