TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF8.5AH200W, 10V, 5%, UNIDIRECTIONAL, T |
9,277 |
|
Datasheet | SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 13.9A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
SMF6.0AH200W, 7V, 5%, UNIDIRECTIONAL, TV |
7,112 |
|
Datasheet | SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
IP4302CX2/LF,315TVS DIODE 2CSP |
5,732 |
|
Datasheet | 2-XFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | - | 14V | - | - | - | No | General Purpose | 10pF @ 1MHz | -35°C ~ 85°C (TA) | - | - | Surface Mount | 2-CSP |
|
|
D2V5H1BS2LP4-7BSurge Protection PP X2-DFN1006-2 |
5,323 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 2.5V (Max) | 2.6V | 7V (Typ) | 85A (8/20µs) | 595W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1006-2 |
|
|
D15V0M2U3SLP-7BLINEAR IC |
7,418 |
|
Datasheet | SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 15V (Max) | 15.5V | 31V (Typ) | 12A (8/20µs) | - | No | General Purpose | 60pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-3 (Type SA) |
|
P4SMAJ160ATVS DIODE 160VWM 259VC DO-214AC |
3,123 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 160V | 178V | 259V | 1.5A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ8.0ATVS DIODE 8VWM 13.6VC DO-214AC |
7,360 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 8V | 8.9V | 13.6V | 29.4A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ90ATVS DIODE 90VWM 146VC DO-214AC |
9,433 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 90V | 100V | 146V | 2.7A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ7.0ATVS DIODE 7VWM 12VC DO-214AC |
7,086 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 7V | 7.8V | 12V | 33.3A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ150ATVS DIODE 150VWM 243VC DO-214AC |
5,132 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 150V | 167V | 243V | 1.6A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ120ATVS DIODE 120VWM 193VC DO-214AC |
2,401 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 120V | 133V | 193V | 2.1A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ110ATVS DIODE 110VWM 177VC DO-214AC |
2,612 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 110V | 122V | 177V | 2.3A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
D5V0X1BA2LPQ-7BLOW CAPACITANCE TVS X1-DFN1006-2 |
3,855 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 7V | 16V | 4A (8/20µs) | - | No | HDMI, USB | 0.48pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
|
D24V0S1U2LP1610-7SURGE PROTECTION PP U-DFN1610-2 |
9,439 |
|
Datasheet | 0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26V | 42V | 31A | - | No | General Purpose | 210pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|

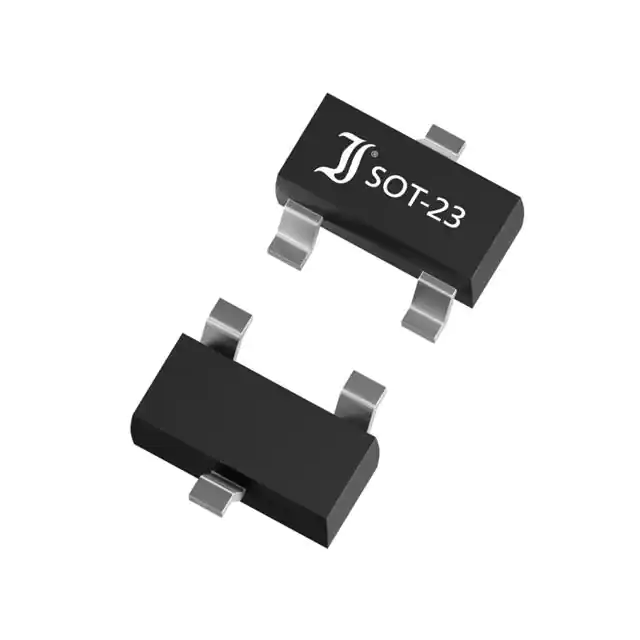

MMBZ27CATVS DIODE 22VWM 40VC SOT-23-3 |
9,633 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 22V | 25.65V | 40V | 1A | 40W | No | General Purpose | 50pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
UCD32C24L01TVS ESD SOD-323 24V 56V |
9,847 |
|
Datasheet | SC-76, SOD-323 | UCD32CXXL01 | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.7V | 56V | 3A (8/20µs) | 220W | No | DVI, Ethernet, USB | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
UCD32C15L01TVS ESD SOD-323 15V 35V |
2,335 |
|
Datasheet | SC-76, SOD-323 | UCD32CXXL01 | Tape & Reel (TR) | Active | Zener | - | 2 | 15V (Max) | 16.7V | 35V | 5A (8/20µs) | 220W | No | DVI, Ethernet, USB | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
P4SMAJ7.0TVS DIODE 7VWM 13.3VC DO-214AC |
4,135 |
|
Datasheet | DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 7V | 7.8V | 13.3V | 30.1A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESD5Z3.3T1TVS DIODE 3.3VWM 14.1VC SOD523 |
3,669 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Max) | 5V | 14.1V | 11.2A (8/20µs) | 158W | No | General Purpose | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESD5Z6.0T1TVS DIODE 6VWM 20.5VC SOD523 |
3,943 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6V (Max) | 6.8V | 20.5V | 8.8A (8/20µs) | 181W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
