TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

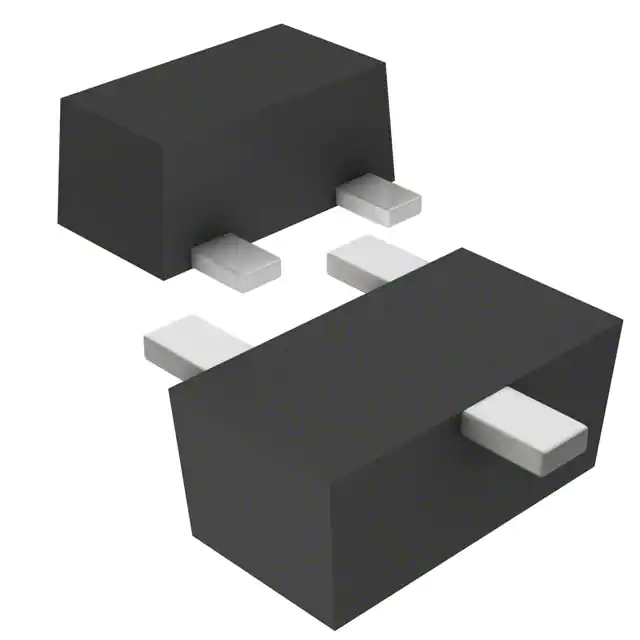

DE3S062D0LTVS DIODE 4VWM SSMINI3-F3-B |
9,858 |
|
Datasheet | SC-89, SOT-490 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 2 | - | 4V | 5.89V | - | - | - | No | General Purpose | 55pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini3-F3-B |
|
ESDAHD05UE2XESDAHD05UE2/SOT23-3L/REEL 7" Q1/ |
8,025 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2X | Tape & Reel (TR) | Active | Zener | 2 | 1 | 5V (Max) | 6V | 19V | 16A (8/20µs) | 300W | No | General Purpose | 150pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD03UE2XESDAHD03UE2/SOT23-3L/REEL 7" Q1/ |
8,549 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2 | Tape & Reel (TR) | Active | Zener | 2 | 1 | 3V (Max) | 4V | 15V | 20A (8/20µs) | 300W | No | General Purpose | 195pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD24UE2XESDAHD24UE2/SOT23-3L/REEL 7" Q1/ |
8,671 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2X | Tape & Reel (TR) | Active | Zener | 2 | 1 | 24V (Max) | 26V | 52V | 7A (8/20µs) | 300W | No | General Purpose | 60pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD12UE2XESDAHD12UE2/SOT23-3L/REEL 7" Q1/ |
7,707 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2X | Tape & Reel (TR) | Active | Zener | 2 | 1 | 12V (Max) | 13.3V | 32V | 11A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
PESD3V3L1BAZTVS DIODE 3.3VWM 26VC SOD323 |
2,523 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.8V | 26V | 18A (8/20µs) | 500W | No | General Purpose | 101pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
PESD5V0L1BAZTVS DIODE 5VWM 33VC SOD323 |
3,496 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5V (Max) | 7V | 33V | 15A (8/20µs) | 500W | No | General Purpose | 75pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOD-323 |
|
S23LC12TVS DIODE 12VWM 19VC SOT23 |
7,910 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 19V | 1A | 300W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
ESDL5V0T2B-TPTVS DIODES |
3,063 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5.6V | 14V | 2A (8/20µs) | 28W | No | General Purpose | 3.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
CSP3V3L-TPInterface |
5,585 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | 1 | - | 3.3V (Max) | 3.6V | 10.5V | 65A (8/20µs) | 600W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
|
ESDSLC18VLB-TPInterface |
8,737 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 18V (Max) | 19V | 40V | 2A (8/20µs) | 80W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESDSLC5V0LTB-TPInterface |
8,931 |
|
Datasheet | SC-101, SOT-883 | - | Bulk | Active | Zener | 2 | - | 5V (Max) | 6.4V | 15V | 5A (8/20µs) | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
ESDH3V3AE2-TPInterface |
8,443 |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 8.5V | 20A (8/20µs) | 170W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESDLC12VAE2-TPInterface |
5,424 |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 12V (Max) | 13.3V | 20V | 5A (8/20µs) | 100W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESDSBLC3V3LB-TPInterface |
7,791 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 10V | 9A (8/20µs) | 90W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESDLC18VAE2-TPESD PROTECTION DEVICES,0201-A |
4,684 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 19.5V | 44V | 2.5A (8/20µs) | 110W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESD18VLB-TPESD PROTECTION DEVICES,DFN1006-2 |
6,048 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 20V | 42V | 7A (8/20µs) | 300W | No | General Purpose | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
CSPHSLC3V3LB-TPESD,3.3V,CSP1006-2 |
6,190 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 20V | 20A (8/20µs) | 350W | No | General Purpose | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
ACPDQC5V0A-HFAUTOMOTIVE DIODE ESD 5VWM 15VC 0 |
2,805 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.4V | 25V | 4A (8/20µs) | 100W | No | - | 0.23pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0402C/SOD-923F |
|
MSX1PDHM3/89ATVS DIODE 200VWM MICROSMP |
9,453 |
|
Datasheet | DO-219AD | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 200V | - | - | - | - | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-219AD (MicroSMP) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
