TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD5V0V1BLZPESD5V0V1BL/SOD882/SOD2 |
6,666 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.8V | 12.5V | 4.8A (8/20µs) | 45W | No | Ethernet, Telecom | 11pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
ESDSB2V5LB-TPESD,2.5V,DFN1006-2 |
4,653 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 2.5V | 2.9V | 10V | 10A (8/20µs) | 100W | No | General Purpose | 25pF @ 1MHz (Max) | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
DD2S06200LTVS DIODE 5.5VWM SSMINI2-F5-B |
9,266 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 5.5V | 5.9V | - | - | - | No | General Purpose | 10pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini2-F5-B |
|
|
ESDHD12BFXESDHD12BF/DFN1006/REEL 7" Q1/T1 |
6,373 |
|
Datasheet | 0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13V | 25V | 6A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
ESDHD24BFXESDHD24BF/DFN1006/REEL 7" Q1/T1 |
2,069 |
|
Datasheet | 0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26V | 48V | 5A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
ESDHD15BFXESDHD15BF/DFN1006/REEL 7" Q1/T1 |
5,224 |
|
Datasheet | 0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.5V | 35V | 7A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
SED8C05L01TVS ESD SOD-882 5V 18V |
9,916 |
|
Datasheet | SOD-882 | SED8C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.2V | 18V | 25A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
ESDHSLC5V0AE2-TPESD PROTECTION DEVICES,0201-A |
7,905 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12V | 5A (8/20µs) | 60W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESDZV201-1BF4DFD PROTECTION |
7,781 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ESDSB7V0AE2-TPTVS DIODES |
5,191 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 7.2V | 14V | 6A (8/20µs) | 84W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
LAQ02C05L01TVS ESD 0201 5V 10V |
8,610 |
|
Datasheet | 0201 (0603 Metric) | LAQ02C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 10V (Typ) | 3A (8/20µs) | - | No | General Purpose | 8pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
LAQ02A12L01TVS ESD 0201 12V 25V |
9,478 |
|
Datasheet | 0201 (0603 Metric) | LAQ02AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13V | 25V | 2.5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
LAQ02C03L01TVS ESD 0201 3.3V 10V |
3,561 |
|
Datasheet | 0201 (0603 Metric) | LAQ02C03L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 10V | 7A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
CPDZD3V3HE-HFDIODE ESD 3.3VWM 80W DFN0603-2L |
3,370 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.8V | 10V | 8A (8/20µs) | 80W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
CPDZ5V0HE-HFDIODE ESD 5VWM 70W 0201/DFN0603- |
4,168 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.6V | 11V | 7A (8/20µs) | 70W | No | General Purpose | 13.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN0603-2L |
|
|
DZ2S22000LTVS DIODE 17VWM SSMINI2-F5-B |
8,730 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 17V | 20.9V | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini2-F5-B |
|
|
D5V0HE1U2LP-7BGENERAL PROTECTION PP X1-DFN1006 |
5,147 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D6V3HE1U2LP-7BSURGE PROTECTION PP X1-DFN1006-2 |
5,546 |
|
Datasheet | - | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

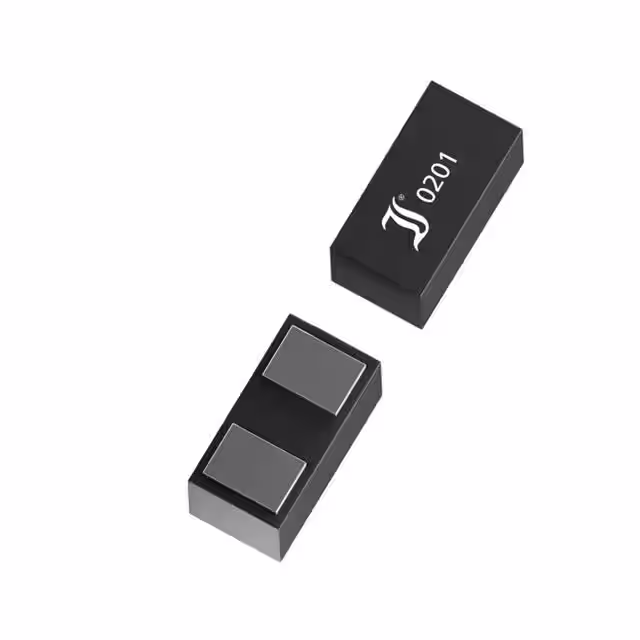

ESD03B3ZTVS DIODE 3.3VWM 9.5VC 0201 |
2,291 |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 3.3V | 3.7V | 9.5V | 21A (8/20µs) | 170W | No | - | - | -50°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
|
ESD0541ZTVS DIODE 5VWM 15VC 0201 |
8,814 |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V | 6V | 15V | 2A (8/20µs) | 25W | No | General Purpose | 6.5pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
