TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ22ATVS DIODE 22VWM 35.5VC SMB |
25,653 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 16.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SZESD9X5.0ST5GTVS DIODE 5VWM 12.3VC SOD923 |
24,471 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 12.3V | 8.7A (8/20µs) | 107W | No | - | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
.jpg "PESD5V0X1UB,135")
|
PESD5V0X1UB,135TVS DIODE 5VWM 8VC SOD523 |
23,775 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 8V (Typ) | 1.5A (8/20µs) | - | No | - | 0.95pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
PTVS45VS1UR,115TVS DIODE 45VWM 72.7VC SOD123W |
23,280 |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|

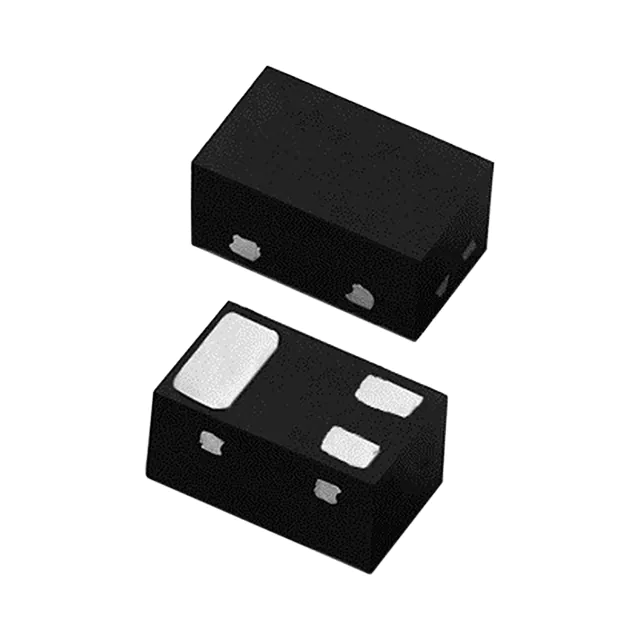

SP3222-02ETGTVS DIODE 3.3VWM 10VC SOD883 |
22,709 |
|
Datasheet | 3-UFDFN | SP3222, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 6.1V | 10V (Typ) | 3A | 30W | Yes | USB | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOD-883 |
|
SMBJ45ATVS DIODE 45VWM 72.7VC SMB |
22,682 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
TESDU12V RGG0603, 12V, 25W, 12PF, ESD PROTEC |
21,679 |
|
Datasheet | 0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13V | 33V | 5A | 25W | No | USB | 12pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0603 |
|
SMBJ30AQ-13-FTVS DIODE 30VWM 48.4VC SMB |
21,540 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
PESD5V0L5UF,115TVS DIODE 5VWM 12VC 6XSON |
21,524 |
|
Datasheet | 6-XFDFN | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.4V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
SMS15T1GTVS DIODE 15VWM 29VC SC74 |
20,789 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 15V | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
SMBJ15ATVS DIODE 15VWM 24.4VC SMB |
20,544 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMAJ24A-QTVS DIODE 24VWM 38.9VC SMA |
20,409 |
|
Datasheet | DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 10.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ18CATVS DIODE 18VWM 29.2VC SMA |
20,186 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 13.7A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMBJ7.5ATVS DIODE 7.5VWM 12.9VC SMB |
19,631 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMBJ) |
|
PESD3V3X4UHMYLTVS DIODE 3.3VWM 4.5VC DFN1308-6 |
18,548 |
|
Datasheet | 6-XFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 5V | 4.5V | 11A (8/20µs) | - | No | Telecom | 0.8pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | DFN1308-6 |
|
|
SMAJ40CA-QTVS DIODE 40VWM 64.5VC SMA |
18,402 |
|
Datasheet | DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SP1105S-01UTGTVS DIODE 5VWM 9.2VC 2DFN |
18,001 |
|
Datasheet | 0603 (1610 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | - | 9.2V (Typ) | 80A (8/20µs) | - | No | General Purpose | 630pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
|
PTVS17VS1UR,115TVS DIODE 17VWM 27.6VC SOD123W |
17,958 |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
SMBJ48ATVS DIODE 48VWM 77.4VC SMB |
17,837 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 7.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P4SMA30CATVS DIODE 25.6VWM 41.4VC DO214AC |
17,249 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 9.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
