TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

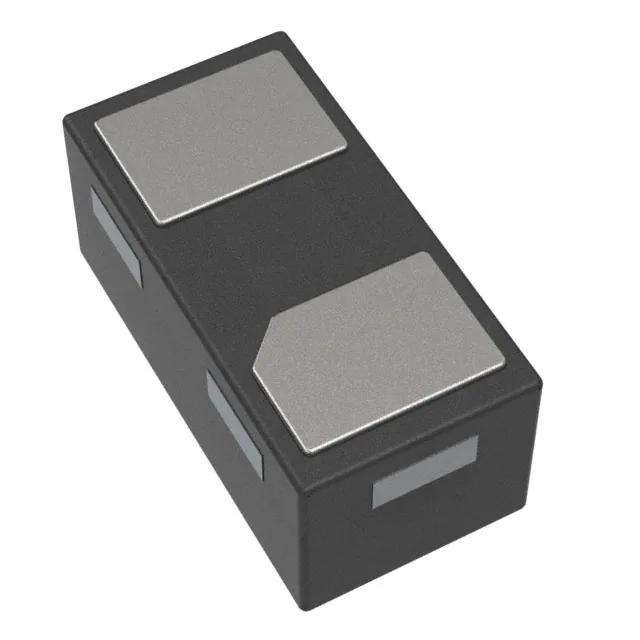

.jpg "SP0201U-ULC-01UTG")
|
SP0201U-ULC-01UTGTVS DIODE 7VWM 9.2VC 0201 |
7,683 |
|
Datasheet | 0201 (0603 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -30°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | 0201 |
|
PESD2ETH100-TRTVS DIODE 24VWM TO236AB |
7,654 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | - | - | 3.2A (8/20µs) | - | No | - | 2.5pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
SMF58ATVS SOD123FL 58V 200W UNIDIR |
7,381 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 2.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
1.5SMC68CATVS DIODE 58.1VWM 92VC DO214AB |
6,723 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 16.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP1112-01UTGTVS DIODE 12VWM 26.5VC 2DFN |
6,491 |
|
Datasheet | 0603 (1610 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | - | 26.5V (Typ) | 40A (8/20µs) | - | No | General Purpose | 230pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
SMAJ7.5ATVS DIODE 7.5VWM 12.9VC DO214AC |
6,273 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 31A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PTVS30VZ1UPAZPTVS30VZ1UPA/SOT1061/HUSON3 |
6,000 |
|
Datasheet | 3-PowerUDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V (Max) | 31V | 37V | 150A (8/20µs) | - | No | General Purpose | 540pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 3-HUSON |
;;2.jpg "SMBJ24CA-E3/52")
|
SMBJ24CA-E3/52TVS DIODE 24VWM 38.9VC DO214AA |
5,493 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMBJ7.5ATVS DIODE 7.5VWM 12.9VC DO214AA |
5,378 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SA5.0A-TPTVS DIODE 5VWM 9.2VC DO15 |
5,096 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 5V | 6.4V | 9.2V | 55.4A | 500W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Through Hole | DO-15 |
|
|
SMF7.5ATVS SOD123FL 7.5V 200W UNIDIR |
4,634 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 15.5A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMF30A-TPTVS DIODE 30VWM 48.4VC SOD123FL |
4,516 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 4.1A | 200W | No | General Purpose | - | -65°C ~ 175°C (TA) | - | - | Surface Mount | SOD-123FL |
|
SZESD7361XV2T1GTVS DIODE 5VWM 34VC SOD523 |
4,218 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 16.5V | 34V | 16A (100ns) | - | No | - | 0.55pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
SMBJ130ATVS DIODE 130VWM 209VC DO214AA |
4,006 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMF7.0ATVS SOD123FL 7V 200W UNIDIR |
3,993 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 16.7A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMF8.0ATVS SOD123FL 80V 200W UNIDIR |
3,252 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 14.7A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
PESD24VS2UT,215TVS DIODE 24VWM 70VC TO236AB |
3,104 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 26.5V | 70V | 3A (8/20µs) | 160W | No | General Purpose | 23pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
SMF60ATVS SOD123FL 60V 200W UNIDIR |
2,410 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 1.8A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SM6T6V8CATVS DIODE 5.8VWM 10.5VC SMB |
2,092 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 57A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
.jpg "SMBJ78CA")
|
SMBJ78CATVS DIODE 78VWM 126VC DO214AA |
1,090 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 4.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
