Surge Protection Devices (SPDs)
Explore Surge Protection Devices (SPDs) parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2801163SPD TYPE 1/TYPE 2 800VDC MCOV |
2,955 |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 800VDC | 15 kA | 40 kA | 50 kA | 2 kV | 2.6 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
2024840000SPD TYPE 2 550VAC MCOV 1 POLE |
2,230 |
|
Datasheet | VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 550VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | -40°C ~ 70°C | Remote Signaling Contacts | - | cURus |
|
2026360000SPD TYPE 2 180VAC MCOV 4 POLE |
8,287 |
|
Datasheet | VPU | Box | Obsolete | Type 2 | Base + Module | 4 | 180VAC | 20 kA | 40 kA | 25 kA | - | 900 V | -40°C ~ 70°C | - | DIN Rail | - |
|
|
2026150000SPD TYPE 2 385VAC MCOV 1 POLE |
8,743 |
|
Datasheet | VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 385VAC | - | 40 kA | - | - | - | - | Remote Signaling Contacts | DIN Rail | - |
|
|
SP100-T2F-1203Y-LCSPD TYPE 2 150VAC MCOV 1 POLE |
8,857 |
|
Datasheet | SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-4803D-LCSPD TYPE 2 550VAC MCOV 1 POLE |
8,056 |
|
Datasheet | SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 550VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2403D-LCSPD TYPE 2 320VAC MCOV 1 POLE |
3,708 |
|
Datasheet | SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
SP100-T2F-2773Y-LCSPD TYPE 2 320VAC MCOV 1 POLE |
8,375 |
|
Datasheet | SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 320VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
HBL3W100CSPD |
4,751 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBL4W100CSPD |
4,629 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBL10W100CSPD |
6,891 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSPMA3208WYGRSPD TYPE 1 208VAC MCOV 3 POLE |
2,571 |
|
Datasheet | BSPMA | Bulk | Active | Type 1 | Base + Module | 3 | 208VAC | - | - | 200 kA | - | - | - | Remote Signaling Contacts | DIN Rail | CSA, UL |
|
|
2800671SPD TYPE 1/TYPE 2 264VAC MCOV |
6,184 |
|
Datasheet | VAL-MS | Bulk | Obsolete | Type 1, Type 2 | Base + Module | 1 | 264VAC | 12.5 kA | 50 kA | 25 kA | - | 2 kV | -40°C ~ 80°C | - | DIN Rail | - |
|
|
BSPS1400WESPD TYPE 1 440VAC MCOV 1 POLE |
5,205 |
|
Datasheet | BSPS | Bulk | Obsolete | Type 1 | Base + Module | 1 | 440VAC | 35 kA | - | 50 kA | - | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | CE |
|
|
SP100-T2F-240SP-LCSPD TYPE 2 300VAC MCOV 1 POLE |
5,475 |
|
Datasheet | SP100 | Bulk | Active | Type 2 | Base + Module | 1 | 300VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
|
MA1IMA12SPD TYPE 2 150V MCOV 1 POLE |
9,760 |
|
Datasheet | - | Box | Active | Type 2 | Module Only | 1 | 150V | 20 kA | 120 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|

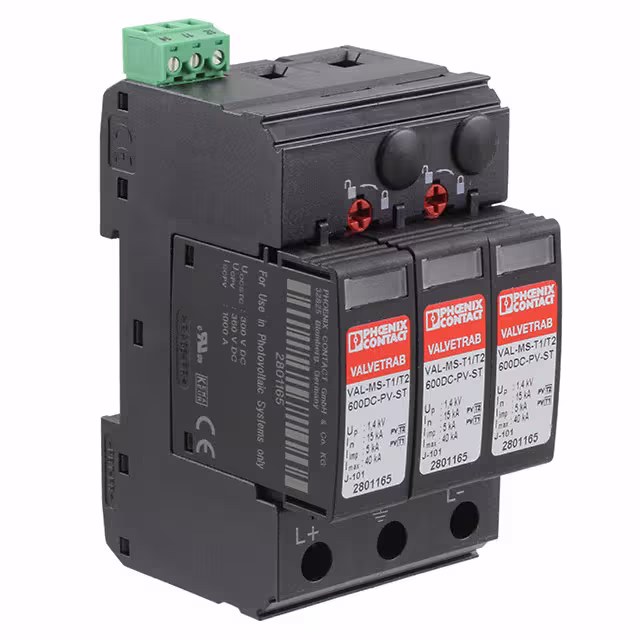

2801164SPD TYPE 1/TYPE 2 800VDC MCOV |
6,377 |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 800VDC | 15 kA | 40 kA | 50 kA | 2 kV | 2.6 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cULus, EAC, UR |
|
|
SP200-T2F-1201P-TTSPD TYPE 2 150VAC MCOV 1 POLE |
8,603 |
|
Datasheet | SP200 | Bulk | Active | Type 2 | Base + Module | 1 | 150VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 75°C | Visual Life Indicator | Chassis Mount | - |
|
2025570000SPD TYPE 2 510VAC MCOV 1 POLE |
5,885 |
|
Datasheet | VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 510VAC | - | 40 kA | - | - | - | - | Remote Signaling Contacts | DIN Rail | - |
|
|
BSPS1400WERSPD TYPE 1 440VAC MCOV 1 POLE |
9,616 |
|
Datasheet | BSPS | Bulk | Obsolete | Type 1 | Base + Module | 1 | 440VAC | 25 kA | - | 50 kA | - | 2.5 kV | -40°C ~ 80°C | Remote Signaling Contacts | DIN Rail | CE |
Frequently Asked Questions
What are Surge Protection Devices (SPDs) components used for?
Surge Protection Devices (SPDs) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Surge Protection Devices (SPDs) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Surge Protection Devices (SPDs) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
