SCRs - Modules
Explore SCRs - Modules parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TD104N14KOFAHPSA1SCR MODULE 1400V 160A MODULE |
7,456 |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|
|
TD104N14KOFAHPSA2THYR / DIODE MODULE DK |
3,376 |
|
Datasheet | TD | Module | Tray | Active | Common Anode - All SCRs | 1 SCR, 1 Diode | 1.4 kV | 102 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | 140°C (TJ) | - | - | Chassis Mount |
|

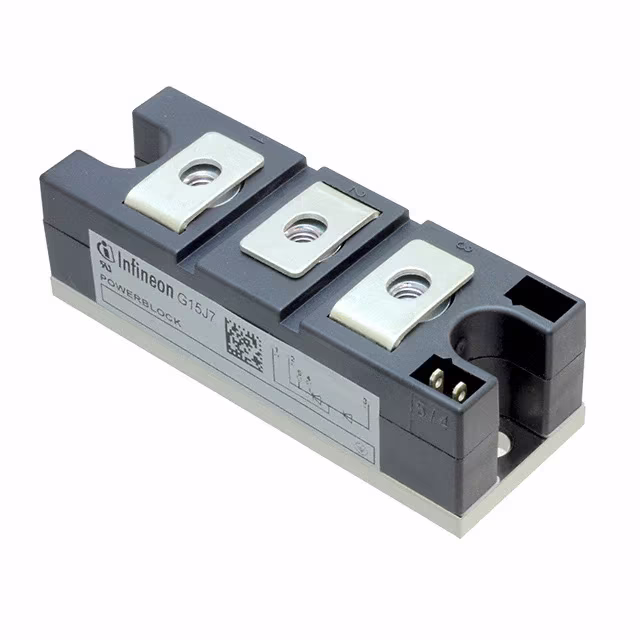

TD180N16KOFHPSA1THYRISTOR MODULE 1600V 180A |
8,515 |
|
Datasheet | - | Module | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | - | 200 mA | 130°C (TJ) | - | - | Chassis Mount |
|
|
M254015FMODULE POWER 40A 1200V SCR CC |
6,449 |
|
Datasheet | - | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 50 mA | 400A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
xxx-xxIO1.jpg "MCC225-14IO1")
|
MCC225-14IO1MOD THYRISTOR DUAL 1400V Y1-CU |
4,697 |
|
Datasheet | - | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
MCD310-18IO1MOD THYRISTOR/DIODE 1800V Y2-DCB |
2,139 |
|
Datasheet | - | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
F1827HD600MODULE SCR/DIODE 25A 240VAC |
2,606 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TDB6HK180N16RRBOSA1SCR MODULE VDRM 1600V 70A |
4,613 |
|
Datasheet | EconoPACK™ 2 | Module | Bulk | Discontinued at Digi-Key | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | - | 2 V | 100 mA | 1600A @ 50Hz | 220 mA | 175°C (TJ) | - | - | Chassis Mount |
|
|
T7S0186504DNSCR PHASE CTRL MOD 1800V 650A |
5,249 |
|
Datasheet | - | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.8 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842CAH400MODULE SCR/DIODE 40A 120VAC |
2,404 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 400 V | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T614FSEMODULE POWER |
2,274 |
|
Datasheet | - | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T9S0162003DHSCR PHASE CTRL MOD 1600V 2000A |
2,158 |
|
Datasheet | - | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.6 kV | 2000 A | 3142 A | 3 V | 200 mA | 25456A, 27000A | - | - | - | - | Chassis Mount |
|
TT180N16KOFHPSA1SCR MODULE 1.6KV 285A MODULE |
9,970 |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | - | 200 mA | 130°C (TJ) | - | - | Chassis Mount |
|
|
TT122N22KOFHPSA1SCR MODULE 2.2KV 160A MODULE |
9,374 |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 104 A | 160 A | 1.4 V | 200 mA | 1050A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|
|
T720224504DNSCR PHASE CTRL MOD 2200V 450A |
6,961 |
|
Datasheet | - | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2.2 kV | 450 A | 700 A | 3 V | 150 mA | 7650A, 8400A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
TT92N16KOFHPSA1SCR MODULE 1.6KV 160A MODULE |
4,683 |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
|
MCC225-16IO1MOD THYRISTOR DUAL 1600V Y1-CU |
8,535 |
|
Datasheet | - | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
F1842CAH600MODULE SCR/DIODE 40A 240VAC |
2,627 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842HD600MODULE SCR/DIODE 40A 240VAC |
9,528 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCMA265PD1600KBSCR MODULE 1.6KV 268A Y1-CU |
5,759 |
|
Datasheet | - | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 268 A | 421 A | 2 V | 150 mA | 8500A, 9180A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
Frequently Asked Questions
What are SCRs - Modules components used for?
SCRs - Modules components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right SCRs - Modules part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find SCRs - Modules parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
