SCRs - Modules
Explore SCRs - Modules parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-VSKH26/14MODULE THYRISTOR 27A ADD-A-PAK |
7,751 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B512F-2T-YEAMOD DIODE SCR 25A 240VAC .250"QC |
6,435 |
|
Datasheet | B-2T | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL26/14MODULE THYRISTOR 27A ADD-A-PAK |
6,921 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

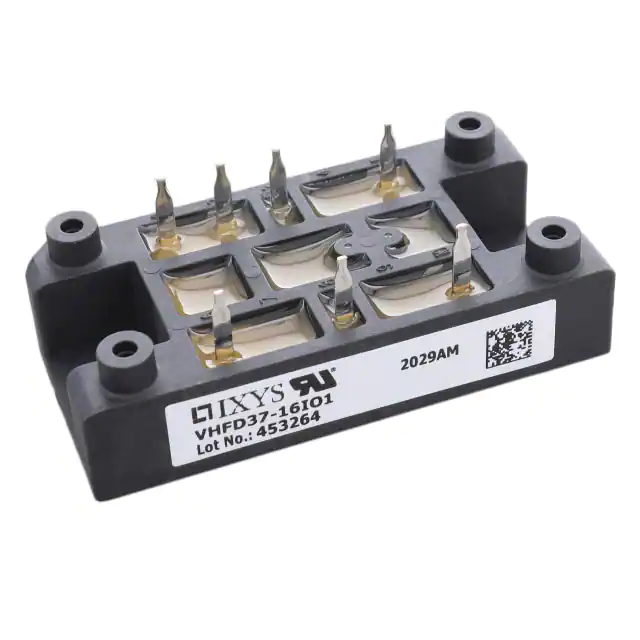

VHFD37-16IO1RECT BRIDGE 1PH 1600V V1A-PAK |
5,303 |
|
Datasheet | - | V1A-PAK | Box | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 4 Diodes | 1.6 kV | 36 A | - | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-P101WSCR HY-BRIDGE 400V 25A PACE-PAK |
3,753 |
|
Datasheet | - | 8-PACE-PAK | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 400 V | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKU26/04MODULE THYRISTOR 27A ADD-A-PAK |
8,857 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Common Cathode - All SCRs | 2 SCRs | 400 V | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKU26/06MODULE THYRISTOR 27A ADD-A-PAK |
7,024 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Common Cathode - All SCRs | 2 SCRs | 600 V | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKU26/08MODULE THYRISTOR 27A ADD-A-PAK |
6,552 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Common Cathode - All SCRs | 2 SCRs | 800 V | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKU26/10MODULE THYRISTOR 27A ADD-A-PAK |
9,689 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Common Cathode - All SCRs | 2 SCRs | 1 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKU26/12MODULE THYRISTOR 27A ADD-A-PAK |
2,787 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Common Cathode - All SCRs | 2 SCRs | 1.2 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKV26/06MODULE THYRISTOR 27A ADD-A-PAK |
6,870 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount |
|
|
VS-VSKV26/08MODULE THYRISTOR 27A ADD-A-PAK |
7,991 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount |
|
|
VS-VSKV26/10MODULE THYRISTOR 27A ADD-A-PAK |
9,344 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount |
|
|
VS-VSKV26/12MODULE THYRISTOR 27A ADD-A-PAK |
4,746 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount |
|
|
VS-VSKN26/12MODULE THYRISTOR 27A ADD-A-PAK |
9,698 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCC72-16IO8BMOD THYRISTOR DUAL 1600V TO240AA |
8,254 |
|
Datasheet | - | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 115 A | 180 A | 2.5 V | 150 mA | 1700A, 1800A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH26/16MODULE THYRISTOR 27A ADD-A-PAK |
2,176 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-T90RIA40SCR PHASE CONT 400V 90A D-55 |
8,119 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Single | 1 SCR | 400 V | 90 A | 141 A | 2.5 V | 120 mA | 1780A, 1870A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT26/04MODULE THYRISTOR 27A ADD-A-PAK |
8,069 |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 400 V | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
SCE55AA160THYRISTOR MODULE 1600V 55A |
5,987 |
|
Datasheet | - | Module | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 55 A | 86 A | 2.5 V | 100 mA | 1370A, 1500A | 160 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
Frequently Asked Questions
What are SCRs - Modules components used for?
SCRs - Modules components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right SCRs - Modules part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find SCRs - Modules parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
