SCRs - Modules

Explore SCRs - Modules parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Structure	Number of SCRs, Diodes	Voltage - Off State	Current - On State (It (AV)) (Max)	Current - On State (It (RMS)) (Max)	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max)	Operating Temperature	Grade	Qualification	Mounting Type
VHFD29-14IO1 RECT BRIDGE 1PH 1400V V1A-PAK IXYS	9,299	RFQ	Datasheet	-	V1A-PAK	Box	Active	Bridge, Single Phase - SCRs/Diodes (Layout 1)	2 SCRs, 4 Diodes	1.4 kV	28 A	-	1 V	65 mA	300A, 330A	100 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VKF55-08IO7 RECT BRIDGE 1PH 800V FO-T-A IXYS	8,552	RFQ	Datasheet	-	FO-T-A	Box	Active	Bridge, Single Phase - All SCRs	4 SCRs	800 V	53 A	-	1.5 V	100 mA	550A, 600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VKF55-14IO7 RECT BRIDGE 1PH 1400V FO-T-A IXYS	4,865	RFQ	Datasheet	-	FO-T-A	Box	Active	Bridge, Single Phase - All SCRs	4 SCRs	1.4 kV	53 A	-	1.5 V	100 mA	550A, 600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VTO110-12IO7 RECT BRIDGE 3PH 1200V PWS-E-2 IXYS	4,669	RFQ	Datasheet	-	PWS-E2	Box	Active	Bridge, 3-Phase - All SCRs	6 SCRs	1.2 kV	110 A	58 A	1.5 V	100 mA	1150A, 1230A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VTO175-16IO7 RECT BRIDGE 3PH 1600V PWS-E-2 IXYS	6,751	RFQ	Datasheet	-	PWS-E2	Box	Active	Bridge, 3-Phase - All SCRs	6 SCRs	1.6 kV	167 A	89 A	1.5 V	100 mA	1500A, 1600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VTOF70-08IO7 RECT BRIDGE 3PH 800V FO-T-A IXYS	9,747	RFQ	Datasheet	-	FO-T-A	Box	Active	Bridge, 3-Phase - All SCRs	6 SCRs	800 V	70 A	-	1.5 V	100 mA	550A, 600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VTOF70-16IO7 RECT BRIDGE 3PH 1600V FO-T-A IXYS	2,481	RFQ	Datasheet	-	FO-T-A	Box	Active	Bridge, 3-Phase - All SCRs	6 SCRs	1.6 kV	70 A	-	1.5 V	100 mA	550A, 600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VVY40-16IO1 MODULE THYRISTOR 1600V V1 PAC IXYS	5,167	RFQ	Datasheet	-	Module	Box	Active	Bridge, 3-Phase - SCRs/Diodes	2 SCRs, 4 Diodes	1.6 kV	34 A	-	-	-	320A @ 50Hz	-	-	-	-	Chassis Mount
VVZ110-14IO7 RECT BRIDGE 3PH 110A 1400V PWSE2 IXYS	8,393	RFQ	Datasheet	-	PWS-E2	Box	Active	Bridge, 3-Phase - SCRs/Diodes	3 SCRs, 3 Diodes	1.4 kV	110 A	58 A	1.5 V	100 mA	1150A, 1230A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VVZ175-14IO7 RECT BRIDGE 3PH 167A 1400V PWSE2 IXYS	8,466	RFQ	Datasheet	-	PWS-E2	Box	Active	Bridge, 3-Phase - SCRs/Diodes	3 SCRs, 3 Diodes	1.4 kV	167 A	89 A	1.5 V	100 mA	1500A, 1600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VVZB170-16NO1 RECT BRIDGE 3PH 175A 1600V E2 IXYS	7,148	RFQ	Datasheet	-	E2	Box	Active	Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode	2 SCRs, 2 Diodes	1.6 kV	170 A	-	1.5 V	95 mA	-	200 mA	-40°C ~ 150°C (TJ)	-	-	Chassis Mount
VVZF70-08IO7 RECT BRIDGE 3PH 800V FO-T-A IXYS	8,344	RFQ	Datasheet	-	FO-T-A	Box	Active	Bridge, 3-Phase - SCRs/Diodes	3 SCRs, 3 Diodes	800 V	70 A	-	1.5 V	100 mA	550A, 600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VVZF70-12IO7 RECT BRIDGE 3PH 1200V FO-T-A IXYS	2,278	RFQ	Datasheet	-	FO-T-A	Box	Active	Bridge, 3-Phase - SCRs/Diodes	3 SCRs, 3 Diodes	1.2 kV	70 A	-	1.5 V	100 mA	550A, 600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount

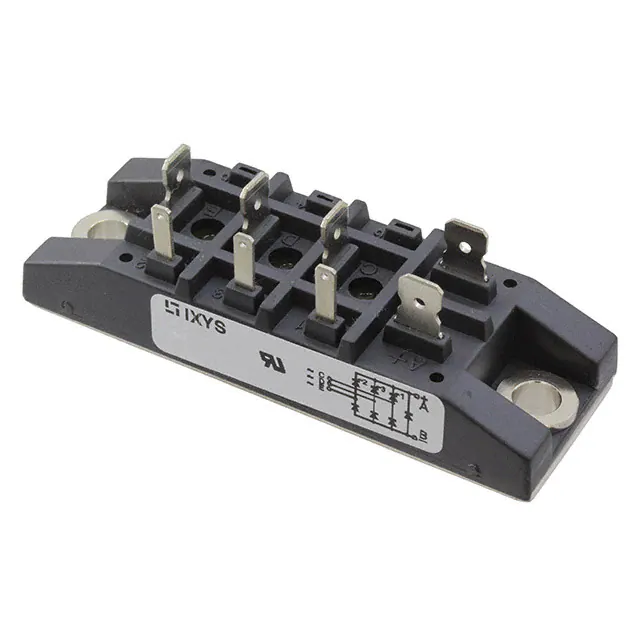

VVZF70-16IO7 RECT BRIDGE 3PH 1600V FO-T-A IXYS	8,358	RFQ	Datasheet	-	FO-T-A	Box	Obsolete	Bridge, 3-Phase - SCRs/Diodes	3 SCRs, 3 Diodes	1.6 kV	70 A	-	1.5 V	100 mA	550A, 600A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VW2X30-08IO1 MODULE AC CTLR 2X30A 800V V1-A IXYS	8,958	RFQ	Datasheet	-	Module	Box	Active	2-Phase Controller - All SCRs	4 SCRs	800 V	14 A	22 A	1.5 V	100 mA	200A, 210A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VW2X30-12IO1 MODULE AC CTLR 2X30A 1200V V1-A IXYS	9,716	RFQ	Datasheet	-	Module	Box	Active	2-Phase Controller - All SCRs	4 SCRs	1.2 kV	14 A	22 A	1.5 V	100 mA	200A, 210A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VW2X45-14IO1 MODULE AC CTLR 2X45A 1400V V1-A IXYS	3,706	RFQ	Datasheet	-	Module	Box	Active	2-Phase Controller - All SCRs	4 SCRs	1.4 kV	20 A	32 A	1.5 V	100 mA	300A, 320A	200 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VWO36-08IO7 MODULE AC CTLR 3PH 800V ECO-PAC1 IXYS	3,382	RFQ	Datasheet	-	Module	Box	Active	3-Phase Controller - All SCRs	6 SCRs	800 V	18 A	28 A	1 V	65 mA	320A, 350A	100 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VWO36-12IO7 MODULE AC CTLR 3PH 1200V ECOPAC1 IXYS	3,794	RFQ	Datasheet	-	Module	Box	Active	3-Phase Controller - All SCRs	6 SCRs	1.2 kV	18 A	28 A	1 V	65 mA	320A, 350A	100 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount
VWO50-12IO7 MODULE AC CTLR 3PH 1200V PWS-F IXYS	6,823	RFQ	Datasheet	-	Module	Box	Active	3-Phase Controller - All SCRs	6 SCRs	1.2 kV	23 A	36 A	1 V	100 mA	520A, 560A	150 mA	-40°C ~ 125°C (TJ)	-	-	Chassis Mount

FAQ

Frequently Asked Questions

What are SCRs - Modules components used for?

SCRs - Modules components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right SCRs - Modules part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find SCRs - Modules parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
