Thermostats - Mechanical
Review Thermostats - Mechanical Temperature Sensors components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit | Switching Temperature | Reset Temperature | Current Rating - AC | Current Rating - DC | Tolerance | Switching Cycles | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F20B125053600060THERMOSTAT 125DEG C SPST-NO 2SIP |
2,405 |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 257°F (125°C) | 203°F (95°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B130053600060THERMOSTAT 130DEG C SPST-NO 2SIP |
2,164 |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 266°F (130°C) | 212°F (100°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B135053600060THERMOSTAT 135DEG C SPST-NO 2SIP |
2,606 |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 275°F (135°C) | 221°F (105°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B140053600060THERMOSTAT 140DEG C SPST-NO 2SIP |
1,536 |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 284°F (140°C) | 230°F (110°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B145053600060THERMOSTAT 145DEG C SPST-NO 2SIP |
2,865 |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 293°F (145°C) | 240°F (115°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B150053600060THERMOSTAT 150DEG C SPST-NO 2SIP |
4,718 |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 302°F (150°C) | 248°F (120°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
B12B06005AEDA0GETHERMOSTAT 60DEG C SPST-NO RAD |
1,993 |
|
Datasheet | B12 | Radial | Bag | Active | SPST-NO | 140°F (60°C) | 86°F (30°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

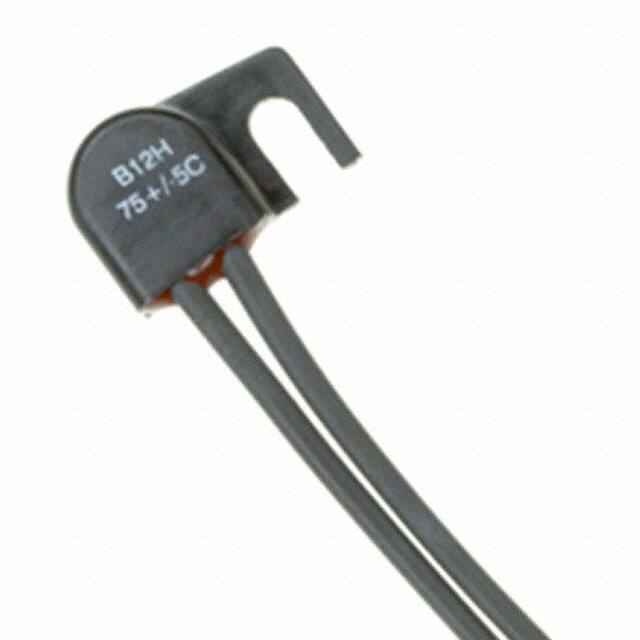

B12B07505AEDA0GETHERMOSTAT 75DEG C SPST-NO RAD |
2,815 |
|
Datasheet | B12 | Radial | Bag | Active | SPST-NO | 167°F (75°C) | 113°F (45°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

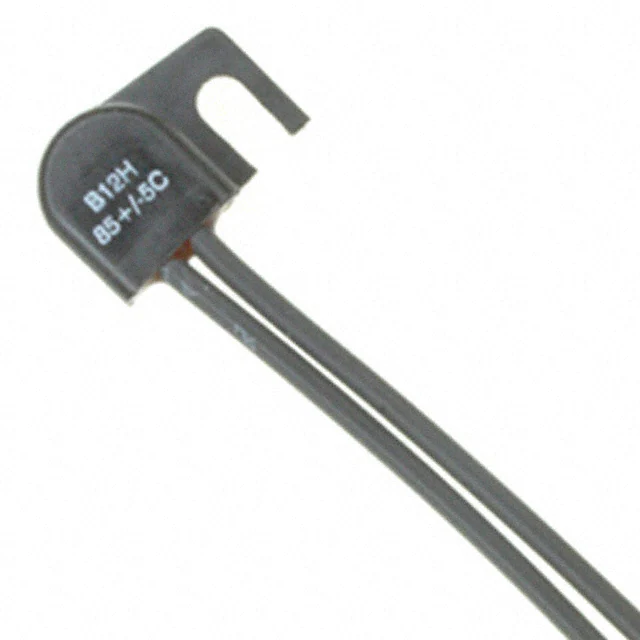

B12B08505AEDA0GETHERMOSTAT 85DEG C SPST-NO RAD |
3,093 |
|
Datasheet | B12 | Radial | Bag | Active | SPST-NO | 185°F (85°C) | 131°F (55°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B09005AEDA0GETHERMOSTAT 90DEG C SPST-NO RAD |
2,021 |
|
Datasheet | B12 | Radial | Bag | Active | SPST-NO | 194°F (90°C) | 140°F (60°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
Frequently Asked Questions
What are Thermostats - Mechanical components used for?
Thermostats - Mechanical components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Thermostats - Mechanical part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Thermostats - Mechanical parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
