| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750341145XFMR FWD P-P DC/DC CONV 410UH SM |
1,033 |
|
Datasheet | WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 410µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
PE-68422NLXFMR FLYBACK DC/DC CONV SMD |
133 |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.680" (17.27mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) | - |
|
|
PA0905NLXFMR SMD |
119 |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|
750317233XFMR FLYBACK DC/DC CONV 16UH SMD |
1,671 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 8 ~ 28VDC | - | 1500Vrms | 16µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
|
750317235XFMR FLYBACK DC/DC CONV 16UH SMD |
1,192 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 8 ~ 28VDC | - | 1500Vrms | 16µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
|
PH9585.003NLTXFMR FLYBACK SMD |
4,764 |
|
Datasheet | PH9585.XXXNLT | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 36 ~ 72V | 15V | 2250V | - | 430kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.250" L x 0.242" W (6.35mm x 6.15mm) | 0.142" (3.60mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | Wirewound |
|
750315825XFMR FLYBACK DC/DC CONV 150UH SM |
1,011 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 36 ~ 72V | - | 1875Vrms | 150µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
PA3855.005NLTXFMR FLYBACK DC/DC CONV 21UH SMD |
1,950 |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3855.002NLTXFMR FLYBACK DC/DC CONV SMD |
1,727 |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
750311963XFMR FLYBACK DC/DC CONV 200UH SM |
804 |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3511 | Linear Technology | 8 ~ 70V | - | 1500Vrms | 200µH @ 10kHz | 50 ~ 300kHz | - | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
750311659XFMR FLYBACK DC/DC CONV 300UH SM |
1,864 |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | 5V @ 20mA | 1500Vrms | 300µH @ 100kHz | 180kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750315226XFMR FWD P-P SMD |
2,005 |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | 3.3V | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.165" (4.19mm) | - | - |
|
|
750315225XFMR FWD P-P SMD |
172 |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | 3.3V | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.165" (4.19mm) | - | - |
.00xNL-Series.jpg "PA3856.004NL")
|
PA3856.004NLXFMR FWD P-P DC/DC CONV SMD |
772 |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3965.001NLTXFMR FLYBACK 7W |
999 |
|
Datasheet | PA3965.XXXNLT | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.557" (14.15mm) | 0.657" L x 0.650" W (16.70mm x 16.50mm) | - |
|
PA3964.001NLXFMR AC FORWARD 7W |
735 |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.291" (7.40mm) | 0.614" L x 0.650" W (15.60mm x 16.50mm) | - |
|

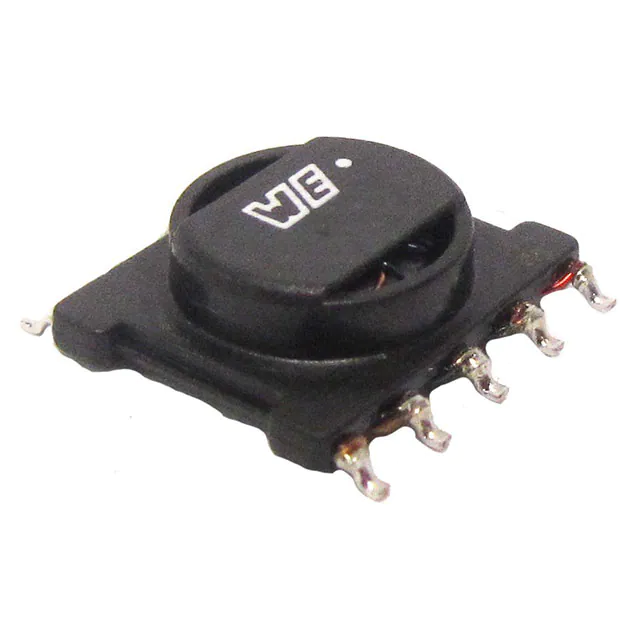

750316018XFMR FWD P-P DC/DC CONV 60UH SMD |
389 |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.458" L x 0.364" W (11.63mm x 9.25mm) | 0.145" (3.68mm) | 0.458" L x 0.496" W (11.63mm x 12.60mm) | - |
|
7508170312XFMR FLYBCK AC/DC CONV 1.99MH SM |
429 |
|
Datasheet | WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 1.99mH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|
750317828XFMR FWD P-P DC/DC CONV 1MH SMD |
1,200 |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 24V | - | 2500Vrms | 1mH @ 10kHz | 300 ~ 620kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.281" L x 0.265" W (7.14mm x 6.73mm) | 0.165" (4.19mm) | 0.402" L x 0.265" W (10.20mm x 6.73mm) | - |
|
750316112XFMR FLYBACK DC/DC CONV 300UH SM |
584 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 17 ~ 36V | - | 1875Vrms | 300µH @ 10kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | - | - |
