Switching Converter, SMPS Transformers
Explore Switching Converter, SMPS Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750871830XFMR LED DR AC/DC CONV 900UH TH |
2,442 |
|
Datasheet | WE-UNIT, MID-OLNXP | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TEA1523P | NXP Semiconductors | 120 ~ 385V | 15V @ 30mA | 4000Vrms | 900µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
|
POE4W3X3.3-RXFMR POE CONFIG DC/DC 200UH SMD |
4,613 |
|
Datasheet | PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 200µH @ 100kHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.673" L x 0.630" W (17.10mm x 16.00mm) | 0.341" (8.65mm) | 0.673" L x 0.935" W (17.10mm x 23.74mm) | - |
|
750311589XFMR FLYBACK DC/DC CONV 6UH SMD |
2,736 |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 20 ~ 48V | 10V | 1500Vrms | 6µH @ 150kHz | 150kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|
750841243XFMR LED DR 270UH TH |
2,842 |
|
Datasheet | WE-FB, MID-OLT8 | Tray | Active | - | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 20V @ 50mA | 3000Vrms | 270µH @ 10kHz | 85kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.477" (12.12mm) | 0.886" L x 1.850" W (22.50mm x 47.00mm) | - |
|
750811041XFMR FLYBACK AC/DC CONV 1.8MH TH |
1,003 |
|
Datasheet | MID-ALIT | Tray | Obsolete | For AC/DC Converters | Flyback Converters | NCP1014 | On Semiconductor | - | - | - | 1.8mH @ 10kHz | - | - | - | - | Through Hole | - | 0.568" (14.43mm) | 0.707" L x 0.799" W (17.96mm x 20.30mm) | - |
|
749196507XFMR FLEX DC/DC CONV 87.1UH SMD |
3,487 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 87.1µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
|
749196508XFMR FLEX DC/DC CONV 196UH SMD |
1,430 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 196µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
|
749196517XFMR FLEX DC/DC CONV 9.9UH SMD |
3,688 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 9.9µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
|
749196528XFMR FLEXIBLE DC/DC CONV 12UH SM |
1,151 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 12µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
|
749196537XFMR FLEX DC/DC CONV 4.3UH SMD |
1,693 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 4.3µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
|
749196538XFMR FLEX DC/DC CONV 9.7UH SMD |
4,010 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 9.7µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
|
749196547XFMR FLEX DC/DC CONV 3.4UH SMD |
1,971 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 3.4µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
|
749196548XFMR FLEX DC/DC CONV 7.6UH SMD |
4,825 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 7.6µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|

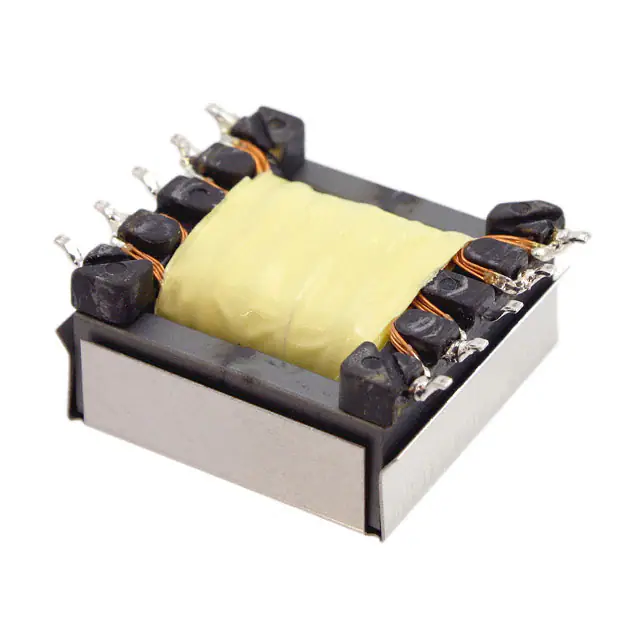

B82802A0055A225XFMR FLYBACK DC/DC CONV 22UH SMD |
1,214 |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 22µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.583" (14.80mm) | 1.063" L x 1.283" W (27.00mm x 32.60mm) | - |
|
|
750311594XFMR FLYBACK DC/DC CONV 15UH SMD |
2,596 |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 30 ~ 75V | 10V | 1500Vrms | 15µH @ 150kHz | 150kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|
|
POE7W3X5.0-RXFMR POE CONFIG DC/DC 100UH SMD |
4,338 |
|
Datasheet | PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 100µH @ 100kHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.673" L x 0.630" W (17.10mm x 16.00mm) | 0.341" (8.65mm) | 0.673" L x 0.935" W (17.10mm x 23.74mm) | - |
|
|
POE26W3.3VS10-RXFMR POE CONFIG DC/DC 160UH SMD |
4,902 |
|
Datasheet | PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 160µH @ 100kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.846" L x 0.866" W (21.50mm x 22.00mm) | 0.425" (10.80mm) | 0.846" L x 1.161" W (21.50mm x 29.50mm) | - |
|
|
POE26W5V-RXFMR POE CONFIG DC/DC 160UH SMD |
2,498 |
|
Datasheet | PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 160µH @ 100kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.846" L x 0.866" W (21.50mm x 22.00mm) | 0.425" (10.80mm) | 0.846" L x 1.161" W (21.50mm x 29.50mm) | - |
|
VP5-0067TR-RXFMR 4.3UH SMD |
4,783 |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
|
VPH5-0067TR-RXFMR 9.65UH SMD |
3,420 |
|
Datasheet | VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
Frequently Asked Questions
What are Switching Converter, SMPS Transformers components used for?
Switching Converter, SMPS Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Switching Converter, SMPS Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
