Switching Converter, SMPS Transformers
Explore Switching Converter, SMPS Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGM-330NARLTRISO MOD DC MAX253 4C:3C 11VUS 3K |
2,896 |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGM-320NARLTRISO MOD DC MAX253 8C:3C 11VUS 3K |
2,593 |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGM-350NARLTRISO MOD DC MAX253 1C:1C 11VUS 3K |
3,277 |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
750813046XFMR LED DR AC/DC CONV 1.44MH TH |
3,607 |
|
Datasheet | WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 200V | 12V | 4500Vrms | 1.44mH @ 10kHz | 72kHz | - | - | - | Through Hole | 0.689" L x 0.740" W (17.50mm x 18.80mm) | 0.524" (13.31mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750310344XFMR LED DR AC/DC CONV 10UH TH |
3,204 |
|
Datasheet | - | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TPS92010DR | Texas Instruments | - | - | - | 10µH @ 100kHz | - | - | - | - | Through Hole | 1.000" Dia x 0.530" W (25.40mm x 13.46mm) | 1.000" (25.40mm) | 1.000" Dia x 0.530" W (25.40mm x 13.46mm) | - |
|
750811445XFMR ISOL AC/DC CONV 1.5MH TH |
4,201 |
|
Datasheet | WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | Isolation | - | - | 90 ~ 375V | 18V @ 10mA | 4500Vrms | 1.5mH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
|
|
TGMR-370V6LFISO MOD DC 1C:1.6C 22VUS 3KV 6P |
2,394 |
|
Datasheet | - | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-360V6LFISO MOD DC 1C:2C 22VUS 3KV 6P SM |
2,368 |
|
Datasheet | - | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-380V6LFISO MOD DC 1C:2.67C 22VUS 3KV 6P |
3,656 |
|
Datasheet | - | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-340V6LFISO MOD DC 1C:1.33C 22VUS 3KV 6P |
2,178 |
|
Datasheet | - | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-355V6LFISO MOD DC 1C:1.5C 22VUS 3KV 6P |
2,920 |
|
Datasheet | - | Tube | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-1440V6LFTRISO MOD DC 1C:1.33C 15.7VUS 5KV |
3,070 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX14943, MAX14949 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-1455V6LFTRISO MOD DC 1C:1.5C 15.7VUS 5KV |
1,590 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX14857, MAX14859 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGMR-1464V6LFTRISO MOD DC 1C:2.4C 15.7UV 5KV 6P |
1,739 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX14943, MAX14949 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
TGM-H280V8LFISO MOD DC 1:1:2.67:2.67 25VUS 1 |
2,925 |
|
Datasheet | - | Tube | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
|
TGM-340NARLISO MOD DC MAX253 3C:4C 11VUS 3K |
4,408 |
|
Datasheet | - | Tube | Not For New Designs | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | - | Wirewound |
|
|
TGM-H240V8LFTRISO MOD DC 1:1:1.3:1.3 25VUS 1A |
4,267 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | MAX13253 | Analog Devices, Inc | - | - | 1500Vrms | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | - | Wirewound |
|
750314288XFMR FLYBACK AC/DC CONV 2.5MH TH |
3,111 |
|
Datasheet | WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | - | STMicroelectronics | 120 ~ 375V | - | 2500Vrms | 2.5mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.740" (18.80mm) | - | - |
|

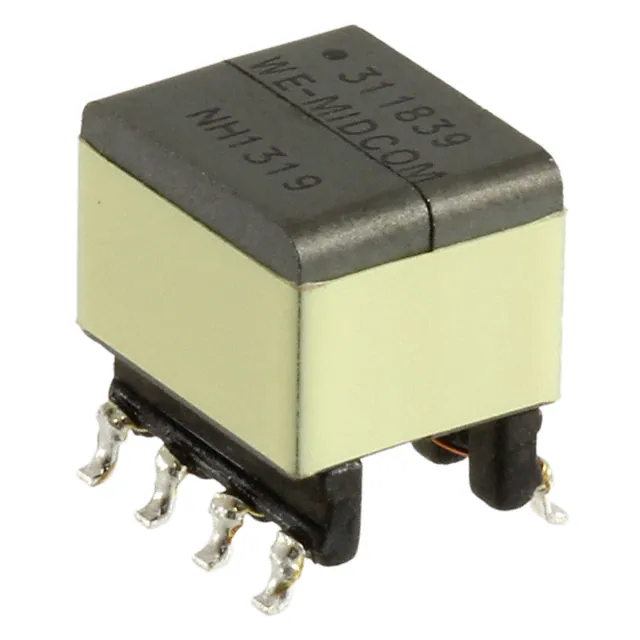

750311839XFMR FLYBACK DC/DC CONV 200UH SM |
1,757 |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3512 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 200µH @ 100kHz | 190kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750811050XFMR FLYBACK DC/DC CONV 1.5MH TH |
2,449 |
|
Datasheet | WE-FB | Tray | Active | For DC/DC Converters | Flyback Converters | LT3748 | Linear Technology | 100 ~ 400V | 15V | 4500Vrms | 1.5mH @ 10kHz | 70 ~ 130kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
Frequently Asked Questions
What are Switching Converter, SMPS Transformers components used for?
Switching Converter, SMPS Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Switching Converter, SMPS Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
