Switching Converter, SMPS Transformers
Review Switching Converter, SMPS Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGT12EEM-200S1A4XFMR FLYBACK AC/DC CONV 10UH SMD |
561 |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 10µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.535" L x 0.425" W (13.60mm x 10.80mm) | 0.394" (10.00mm) | 0.583" L x 0.535" W (14.80mm x 13.60mm) | Wirewound |
|
VGT15SEFD-250S4A7XFMR FLYBACK AC/DC CONV 2.6UH SM |
752 |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 2.6µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.906" L x 0.606" W (23.00mm x 15.40mm) | 0.472" (12.00mm) | 0.906" L x 0.606" W (23.00mm x 15.40mm) | Wirewound |
|
VGT15EFD-200S3A6XFMR FLYBACK AC/DC CONV 8UH SMD |
719 |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 8µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 0.787" L x 0.709" W (20.00mm x 18.00mm) | 0.402" (10.20mm) | 0.945" L x 0.787" W (24.00mm x 20.00mm) | Wirewound |
|
ECO2017SEO-D04V015XFMR FLYBCK AC/DC CONV 3.18MH TH |
210 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 160 ~ 288V | 12V @ 300mA | 3000Vrms | 3.18mH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|
ECO2425SLD-D02H0111XFMR FLYBACK AC/DC CONV 446UH TH |
183 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 5V @ 2.2A, 12V @ 200mA | 3000Vrms | 446µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 1.024" L x 1.181" W (26.00mm x 30.00mm) | 0.787" (20.00mm) | 1.024" L x 1.181" W (26.00mm x 30.00mm) | - |
|
ECO2225SEO-D02V0112XFMR FLYBCK AC/DC CONV 1.33MH TH |
138 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 180 ~ 276V | 12.3V @ 3.2A | 4000Vrms | 1.33mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.906" W (28.50mm x 23.00mm) | 1.220" (31.00mm) | 1.122" L x 0.906" W (28.50mm x 23.00mm) | - |
|

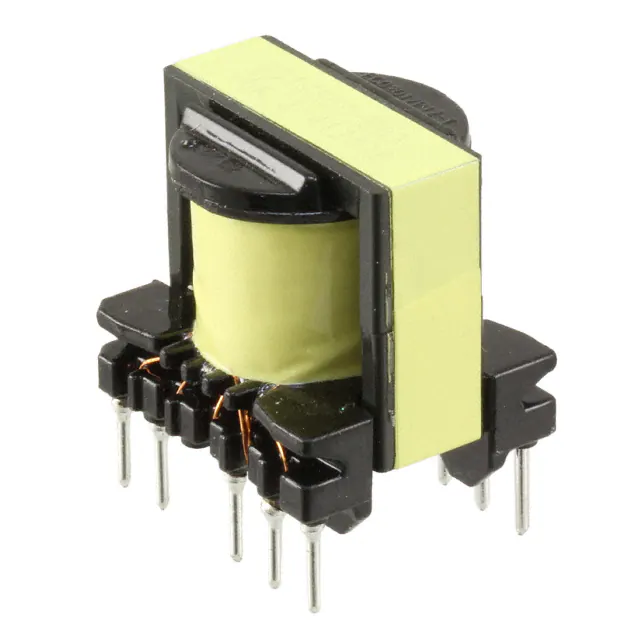

ECO2017SEO-D03V014XFMR FLYBACK AC/DC CONV 555UH TH |
209 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 264V | 12V @ 1A | 3000Vrms | 555µH @ 100kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|
ECO2225SEO-D01H016XFMR FLYBACK AC/DC CONV 567UH TH |
115 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 12V @ 50mA, 12V @ 1.5A | 3000Vrms | 567µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 1.024" L x 1.201" W (26.00mm x 30.50mm) | 0.945" (24.00mm) | 1.024" L x 1.201" W (26.00mm x 30.50mm) | - |
|
ECO2425SEO-D03V014XFMR FLYBACK AC/DC CONV 2.8MH TH |
145 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 170 ~ 230V | 36.5V @ 900mA | 1500Vrns | 2.8mH @ 10kHz | 30kHz | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.240" (31.50mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | - |
|
ECO2420SEO-D04V0110XFMR FLYBCK AC/DC CONV 1.54MH TH |
118 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 214 ~ 404V | 12V @ 1.25A, 14V @ 250mA | 1500Vrms | 1.54mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.240" L x 0.984" W (31.50mm x 25.00mm) | 1.043" (26.50mm) | 1.240" L x 0.984" W (31.50mm x 25.00mm) | - |
Frequently Asked Questions
What are Switching Converter, SMPS Transformers components used for?
Switching Converter, SMPS Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Switching Converter, SMPS Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
