Strain Gauges
Review Strain Gauges Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Pattern Type | Strain Range | Resistance | Resistance Tolerance | Length - Active | Length - Overall Pattern | Length - Overall | Width - Active | Width - Overall Pattern | Width - Overall | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "MMF003096")
|
MMF003096STRAIN GAUGE 350OHM LINEAR 1=5PC |
1,812 |
|
Datasheet | CEA | Bulk | Obsolete | Linear | ±3% | 350 Ohms | ±0.3% | 0.062" (1.57mm) | 0.220" (5.59mm) | 0.31" (7.9mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG "MMF003129")
|
MMF003129STRAIN GAUGE 350OHM LINEAR 1=5PS |
1,462 |
|
Datasheet | CEA | Bulk | Obsolete | Linear | ±5% | 350 Ohms | ±0.3% | 0.125" (3.18mm) | 0.275" (6.99mm) | 0.38" (9.7mm) | 0.100" (2.54mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG "MMF003141")
|
MMF003141STRAIN GAUGE 350 OHM RECT 1=5PC |
4,875 |
|
Datasheet | CEA | Bulk | Obsolete | Rectangular Rosette | ±5% | 350 Ohms | ±0.4% | 0.125" (3.18mm) per section | 0.300" (7.62mm) | 0.42" (10.7mm) | 0.060" (1.52mm) per section | 0.560" (14.22mm) | 0.62" (15.7mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG "MMF003153")
|
MMF003153STRAIN GAUGE 350 OHM TEE 1=5PC |
2,990 |
|
Datasheet | CEA | Bulk | Obsolete | Tee Rosette | ±5% | 350 Ohms | ±0.4% | 0.125" (3.18mm) per section | 0.325" (8.26mm) | 0.42" (10.7mm) | 0.165" (4.19mm) per section | 0.365" (9.27mm) | 0.45" (11.4mm) | -100 ~ 350°F (-75 ~ 175°C) |

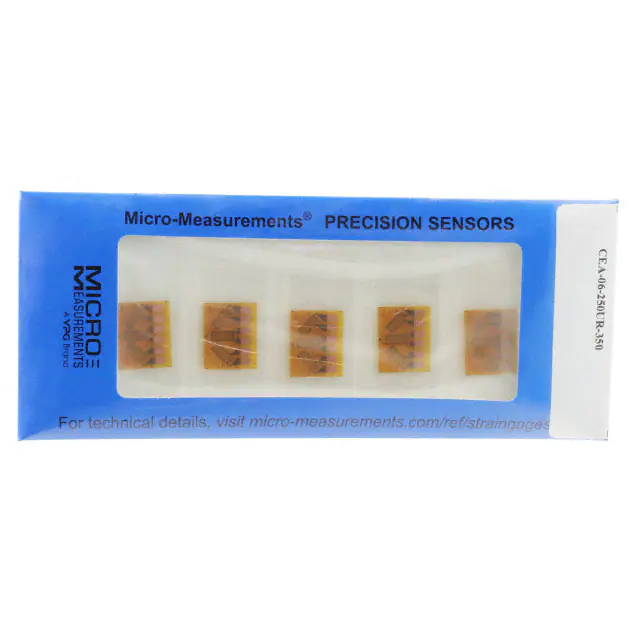

.JPG "MMF003216")
|
MMF003216STRAIN GAUGE 350 OHM RECT 1=5PC |
3,323 |
|
Datasheet | CEA | Bulk | Obsolete | Rectangular Rosette | ±5% | 350 Ohms | ±0.4% | 0.250" (6.35mm) per section | 0.500" (12.70mm) | 0.65" (16.5mm) | 0.120" (3.05mm) per section | 0.760" (19.30mm) | 0.80" (20.3mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG "MMF003233")
|
MMF003233STRAIN GAUGE 350 OHM TEE 1=5PC |
2,648 |
|
Datasheet | CEA | Bulk | Obsolete | Tee Rosette | ±5% | 350 Ohms | ±0.4% | 0.250" (6.35mm) per section | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.290" (7.37mm) per section | 0.650" (16.51mm) | 0.74" (18.8mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG "MMF003247")
|
MMF003247STRAIN GAUGE 350OHM LINEAR 1=5PC |
2,272 |
|
Datasheet | CEA | Bulk | Obsolete | Linear | ±5% | 350 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.27" (6.9mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG "MMF003101")
|
MMF003101STRAIN GAUGE 350OHM LINEAR 1=5PC |
2,417 |
|
Datasheet | CEA | Bulk | Obsolete | Linear | ±3% | 350 Ohms | ±0.3% | 0.062" (1.57mm) | 0.220" (5.59mm) | 0.31" (7.9mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -100 ~ 350°F (-75 ~ 175°C) |
.JPG "MMF003133")
|
MMF003133STRAIN GAUGE 350OHM LINEAR 1=5PC |
4,267 |
|
Datasheet | CEA | Bulk | Obsolete | Linear | ±5% | 350 Ohms | ±0.3% | 0.125" (3.18mm) | 0.275" (6.99mm) | 0.38" (9.7mm) | 0.100" (2.54mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -100 ~ 350°F (-75 ~ 175°C) |
|
MMF000921STRAIN GAUGE LINEAR W/ WIRES |
1,085 |
|
Datasheet | WK | Bulk | Active | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.062" (1.57mm) | 0.114" (2.9mm) | 0.26" (6.6mm) | 0.062" (1.57mm) | 0.062" (1.57mm) | 0.16" (4.1mm) | -452 ~ 550°F (-269 ~ 290°C) |
Frequently Asked Questions
What are Strain Gauges components used for?
Strain Gauges components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Strain Gauges part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Strain Gauges parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
