Solid State Relays (SSR)
Review Solid State Relays (SSR) Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLA190SSR RELAY SPST-NO 150MA 0-400V |
250 |
|
Datasheet | PLA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 400 V | 150 mA | 22 Ohms | PC Pin | -40°C ~ 105°C | 6-DIP | EN, UL | - | - |
|
PAA190STRSSR RELAY SPST-NO 150MA 0-400V |
1,000 |
|
Datasheet | PAA, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 400 V | 150 mA | 22 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, UL | - | - |
|
LAA100SSR RELAY SPST-NO 120MA 0-350V |
250 |
|
Datasheet | LAA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 350 V | 120 mA | 25 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, TUV, UL | - | - |
|
|
XBB170SSR RELAY SPST-NC 100MA 0-350V |
250 |
|
Datasheet | XBB, OptoMOS® | Tube | Active | Through Hole | SPST-NC (1 Form B) x 2 | AC, DC | 1.2VDC | 0 V ~ 350 V | 100 mA | 50 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
PM1205SSSR RELAY SPST-NO 500MA 0-500V |
150 |
|
Datasheet | PM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 0 V ~ 500 V | 500 mA | - | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, UL | - | - |
|
|
CPC1943GSSR RELAY SPST-NO 500MA 0-400V |
250 |
|
Datasheet | CPC | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 0 V ~ 400 V | 500 mA | - | PC Pin | -40°C ~ 85°C | 6-DIP | CSA, UL | - | - |
|

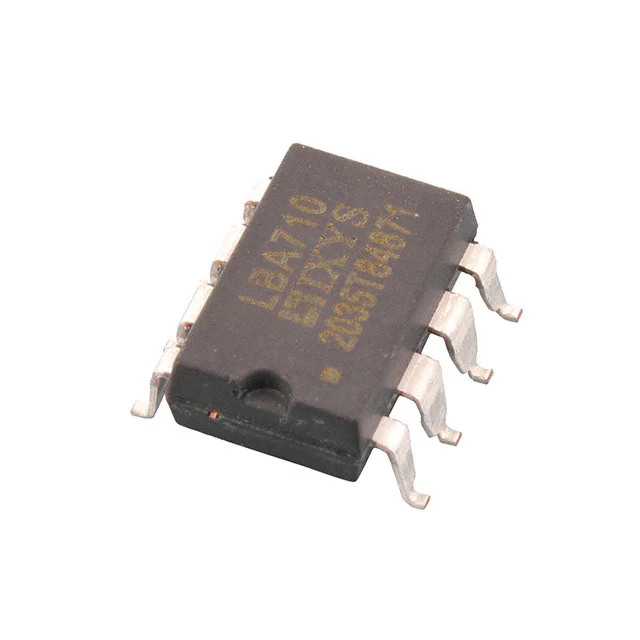

LBA710SSSR RELAY SPST-NO/NC 1A 0-60V |
4,480 |
|
Datasheet | LBA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 600 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, TUV, UL | - | - |
|
|
CPC1540GSTRSSR RELAY SPST-NO 120MA 0-350V |
4,019 |
|
Datasheet | CPC, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.24VDC | 0 V ~ 350 V | 120 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, TUV, UL | - | - |
|
PLA150STRSSR RELAY SPST-NO 250MA 0-250V |
1,762 |
|
Datasheet | PLA, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 250 V | 250 mA | 7 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, UL | - | - |
|
|
PLA160SSSR RELAY SPST-NO 50MA 0-300V |
1,612 |
|
Datasheet | PLA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 2.4VDC | 0 V ~ 300 V | 50 mA | 100 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, TUV, UL | - | - |
Frequently Asked Questions
What are Solid State Relays (SSR) components used for?
Solid State Relays (SSR) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Solid State Relays (SSR) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Solid State Relays (SSR) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
