RFI and EMI - Contacts, Fingerstock and Gaskets
Explore RFI and EMI - Contacts, Fingerstock and Gaskets parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Shape | Width | Length | Height | Material | Plating | Plating - Thickness | Attachment Method | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S7161-45RRFI SHLD FINGER PHOS GOLD SOLDER |
1,801 |
|
Datasheet | EZ BoardWare | Tape & Reel (TR) | Active | Shield Finger | - | 0.091" (2.30mm) | 0.181" (4.60mm) | 0.138" (3.50mm) | Phosphor Bronze | Gold | Flash | Solder | -20°C ~ 70°C |
|
1775073-1RFI SHLD FINGER CU GOLD SOLDER |
30,102 |
|
Datasheet | - | Tape & Reel (TR) | Active | Shield Finger, Pre-Loaded | - | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.169" (4.30mm) | Copper Alloy | Gold | 2µin (0.05µm) | Solder | - |
|
331031271520RFI SHLD FINGER BECU GOLD SOLDER |
10,609 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.059" (1.50mm) | 0.106" (2.70mm) | 0.079" (2.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331081302025RFI SHLD FINGER BECU GOLD SOLDER |
4,198 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.098" (2.50mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
S7191-45RRFI SHLD FINGER PHOS GOLD SOLDER |
13,019 |
|
Datasheet | EZ BoardWare | Tape & Reel (TR) | Active | Shield Finger | - | 0.118" (3.00mm) | 0.177" (4.50mm) | 0.197" (5.00mm) | Phosphor Bronze | Gold | Flash | Solder | -20°C ~ 70°C |
|
S1971-46RRFI SHD FINGER CUPRO NIC TIN SLD |
9,313 |
|
Datasheet | - | Tape & Reel (TR) | Active | Shield Finger | - | 0.146" (3.70mm) | 0.182" (4.63mm) | 0.179" (4.55mm) | Cupro Nickel | Tin | 118.11µin (3.00µm) | Solder | -55°C ~ 125°C |
|
S7111-42RRFI SHLD FINGER CU GOLD SOLDER |
42,501 |
|
Datasheet | EZ BoardWare | Tape & Reel (TR) | Active | Shield Finger, Pre-Loaded | - | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.177" (4.50mm) | Copper Alloy | Gold | Flash | Solder | -55°C ~ 125°C |
|
S7101-42RRFI SHLD FINGER CU GOLD SOLDER |
7,325 |
|
Datasheet | EZ BoardWare | Tape & Reel (TR) | Active | Shield Finger, Pre-Loaded | - | 0.098" (2.50mm) | 0.159" (4.05mm) | 0.138" (3.50mm) | Copper Alloy | Gold | Flash | Solder | -55°C ~ 125°C |
|
S7061-46RRFI SHLD FINGER CU TIN SOLDER |
29,967 |
|
Datasheet | EZ BoardWare | Tape & Reel (TR) | Active | Shield Finger | - | 0.114" (2.90mm) | 0.274" (6.95mm) | 0.219" (5.57mm) | Copper Alloy | Tin | 94.49µin (2.40µm) | Solder | -55°C ~ 125°C |
|
331211503040RFI SHLD FINGER BECU GOLD SOLDER |
1,800 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger, Pre-Loaded | - | 0.118" (3.00mm) | 0.177" (4.50mm) | 0.157" (4.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
S1941-46RRFI SHLD FINGER BECU TIN SOLDER |
6,566 |
|
Datasheet | EZ BoardWare | Tape & Reel (TR) | Active | Shield Finger | - | 0.224" (5.70mm) | 0.378" (9.59mm) | 0.285" (7.25mm) | Beryllium Copper | Tin | 118.11µin (3.00µm) | Solder | - |
|
331151702562RFI SHLD FINGER BECU GOLD SOLDER |
19,486 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.098" (2.50mm) | 0.276" (7.00mm) | 0.244" (6.20mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
331041402053RFI SHLD FINGER BECU GOLD SOLDER |
2,556 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.157" (4.00mm) | 0.209" (5.30mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|

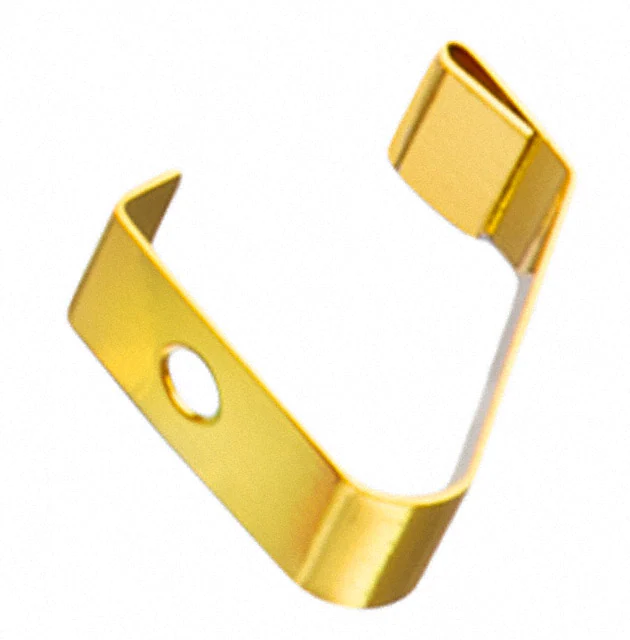

331011452048RFI SHLD FINGER BECU GOLD SOLDER |
1,721 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.079" (2.00mm) | 0.177" (4.50mm) | 0.189" (4.80mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
S0921-46RRFI SHLD CLIP CUPRO NICK TIN SLD |
6,019 |
|
Datasheet | - | Tape & Reel (TR) | Active | Shield Clip | - | - | 0.222" (5.65mm) | 0.215" (5.46mm) | Cupro Nickel | Tin | 141.73µin (3.60µm) | Solder | -55°C ~ 105°C |
|
BMI-C-007-01RFI FINGERSTOCK BECU TIN SOLDER |
6,919 |
|
Datasheet | BMI-C | Tape & Reel (TR) | Active | Fingerstock | - | 0.059" (1.50mm) | 0.130" (3.30mm) | 0.126" (3.20mm) | Beryllium Copper | Tin | - | Solder | - |
|
331141352540RFI SHLD FINGER BECU GOLD SOLDER |
12,216 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.157" (4.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
|
BMI-C-006RFI FINGERSTOCK BECU TIN SOLDER |
470 |
|
Datasheet | BMI-C | Tape & Reel (TR) | Active | Fingerstock | - | 0.079" (2.00mm) | 0.113" (2.86mm) | 0.100" (2.54mm) | Beryllium Copper | Tin | - | Solder | - |
|
331061603012RFI SHLD FINGER BECU GOLD SOLDER |
608 |
|
Datasheet | - | Tape & Reel (TR) | Active | Shield Finger | Angled | 0.236" (6.00mm) | 0.472" (12.00mm) | 0.118" (3.00mm) | Beryllium Copper | Gold | - | Solder | -40°C ~ 100°C |
|
331161702513RFI SHLD FINGER BECU GOLD SOLDER |
2,622 |
|
Datasheet | WE-SECF | Tape & Reel (TR) | Active | Shield Finger | - | 0.098" (2.50mm) | 0.276" (7.00mm) | 0.512" (13.00mm) | Beryllium Copper | Gold | Flash | Solder | -40°C ~ 100°C |
Frequently Asked Questions
What are RFI and EMI - Contacts, Fingerstock and Gaskets components used for?
RFI and EMI - Contacts, Fingerstock and Gaskets components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RFI and EMI - Contacts, Fingerstock and Gaskets part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RFI and EMI - Contacts, Fingerstock and Gaskets parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
