RF Switches
Review RF Switches RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPG2408TK-AIC RF SWITCH SPDT 3GHZ 6MINIMOLD |
1,327 |
|
Datasheet | - | 6-SMD, Flat Leads | Bulk | Obsolete | Bluetooth, WLAN | Reflective | SPDT | 50MHz ~ 3GHz | 17dB | 0.56dB | 3GHz | - | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
UPG2409T6X-AIC RF SWITCH SPDT 6GHZ 6TSON |
4,864 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Bulk | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 27dB | 0.65dB | 6GHz | 36dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|
UPG2409TB-AIC RF SWITCH SPDT 3.8GHZ 6-SMINI |
3,342 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 802.11b/g/n | Reflective | SPDT | 500MHz ~ 3.8GHz | 19dB | 0.6dB | 3.8GHz | 37dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-SuperMiniMold |
|
UPG2413T6M-AIC RF SWITCH SP3T 3GHZ 12TSQFN |
1,116 |
|
Datasheet | - | 12-XFQFN Exposed Pad | Bulk | Obsolete | 802.11b/g | Reflective | SP3T | 500MHz ~ 3GHz | 16dB | 0.6dB | 3GHz | 33dBm | - | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 12-TSQFN (2x2) |
|
UPG2415T6X-AIC RF SWITCH SPDT 6GHZ 6TSON |
2,556 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Bulk | Obsolete | WLAN | Reflective | SPDT | 50MHz ~ 6GHz | 26dB | 0.55dB | 6GHz | 35dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|

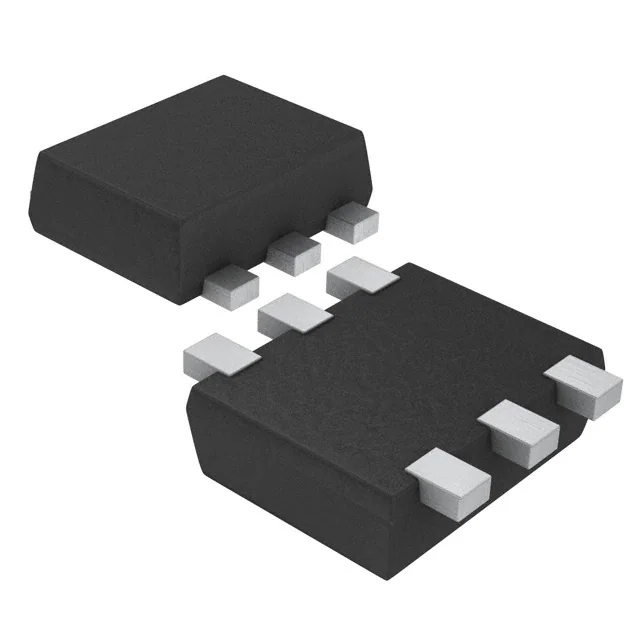

UPG2415TK-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
4,432 |
|
Datasheet | - | 6-SMD, Flat Leads | Bulk | Obsolete | WLAN | Reflective | SPDT | 500MHz ~ 6GHz | 26dB | 0.65dB | 6GHz | 34dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
|
UPG2422TK-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
1,615 |
|
Datasheet | - | 6-SMD, Flat Leads | Bulk | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 28dB | 0.55dB | 6GHz | 31dBm | 57dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
|
UPG2422TK-E2-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
1,660 |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 28dB | 0.55dB | 6GHz | 31dBm | 57dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
UPD5904T7K-E2-ARF SWITCH SP4T 6GHZ 12QFN |
1,847 |
|
Datasheet | - | 12-UFQFN Exposed Pad | Cut Tape (CT) | Obsolete | General Purpose | Reflective | SP4T | - | - | - | - | - | - | DC Blocked | 50Ohm | 2.3V ~ 3.3V | -40°C ~ 85°C | - | - | - | 12-QFN (2x2) |
|
UPD5716GR-E1-AIC RF SWITCH 2.15GHZ 16HTSSOP |
3,930 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | - | 250MHz ~ 2.15GHz | 29dB | 6.7dB | 2.15GHz | - | - | - | 50Ohm | 4V ~ 5.5V | -40°C ~ 85°C | - | - | - | 16-HTSSOP |
Frequently Asked Questions
What are RF Switches components used for?
RF Switches components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Switches part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Switches parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
