RF Switches
Review RF Switches RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC536LP2IC RF SWITCH SPDT 6GHZ 6DFN |
2,037 |
|
Datasheet | - | 6-TDFN Exposed Pad | Strip | Active | Cellular | - | SPDT | 0Hz ~ 6GHz | 29dB | 1dB | 6GHz | 33dBm | 52dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
HMC784AMS8GEIC RF SWITCH SPDT 4GHZ 8MSOP |
2,979 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Strip | Active | WiMAX / WiBro | Reflective | SPDT | 0Hz ~ 4GHz | 30dB | 1.3dB | 4GHz | 41dBm | 60dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
HMC244AG16IC RF SWITCH SP4T 4GHZ 16SMT |
2,905 |
|
Datasheet | - | 16-LQFP | Strip | Active | Radar | - | SP4T | 0Hz ~ 4GHz | 28dB | 1.2dB | 4GHz | 28dBm | 45dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (5.84x5.84) |
|
HMC641A-SXIC RF SWITCH SP4T 18GHZ DIE |
2,457 |
|
Datasheet | - | Die | Tray | Active | VSAT | Absorptive | SP4T | 0Hz ~ 18GHz | 38dB | 2.1dB | 8GHz | - | 41dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
HMC986A-SXIC RF SWITCH SPDT 50GHZ DIE |
3,190 |
|
Datasheet | - | Die | Tray | Active | Radar | Reflective | SPDT | 100MHz ~ 50GHz | 34dB | 2.1dB | 40GHz | 28dBm | 40dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|

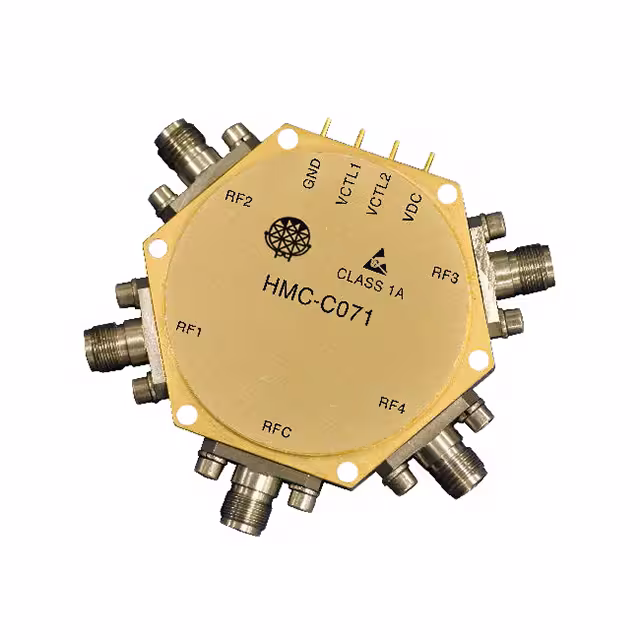

HMC-C071IC RF SWITCH SP4T 20GHZ MODULE |
3,786 |
|
Datasheet | - | Module, SMA Connectors | Bulk | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 20GHz | 38dB | - | 20GHz | 24dBm | 40dBm | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | Module |
|
|
HMC646LP2EIC RF SWITCH SPDT 2.1GHZ 6DFN |
1,581 |
|
Datasheet | - | 6-TDFN Exposed Pad | Strip | Active | Cellular, TD-SCDMA | Reflective | SPDT | 100MHz ~ 2.1GHz | 32dB | 1.3dB | 2.025GHz | - | 34dBm | - | 50Ohm | 3V ~ 8V | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
HMC347B-SXIC RF SWITCH SPDT 20GHZ DIE |
3,047 |
|
Datasheet | - | Die | Tray | Active | VSAT | Absorptive | SPDT | 100MHz ~ 20GHz | 45dB | 1.7dB | 20GHz | 25dBm | 41dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
HMC344ATCPZ-EP-PTIC RF SWITCH SP4T 8GHZ 16LFCSP |
4,620 |
|
Datasheet | - | 16-VFQFN Exposed Pad, CSP | Strip | Active | General Purpose | - | SP4T | 100MHz ~ 8GHz | 32dB | 2.1dB | 8GHz | 25dBm | 44dBm | - | 50Ohm | -3V ~ -5V | -55°C ~ 125°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
HMC641ATCPZ-EP-PTIC RF SWITCH SP4T 20GHZ 24LFCSP |
3,431 |
|
Datasheet | - | 24-VFQFN Exposed Pad, CSP | Strip | Active | General Purpose | Absorptive | SP4T | 100MHz ~ 20GHz | 40dB | 3dB | 20GHz | 24dBm | 41dBm | - | 50Ohm | - | -55°C ~ 125°C | - | - | Surface Mount | 24-LFCSP (4x4) |
Frequently Asked Questions
What are RF Switches components used for?
RF Switches components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Switches part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Switches parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
