RF Switches
Review RF Switches RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MASW-008566-TR3000IC RF SWITCH SP4T 3GHZ 16QFN |
4,403 |
|
Datasheet | - | 16-VQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SP4T | 0Hz ~ 3GHz | 18.5dB | 1dB | 3GHz | - | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 16-PQFN (4x4) |
|
MA4SW210IC RF SWITCH SPDT 20GHZ DIE |
700 |
|
Datasheet | HMIC™ | Die | Tray | Active | General Purpose | Reflective | SPDT | 50MHz ~ 20GHz | 42dB | 0.7dB | 20GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
|
MASW-007587-TR3000IC RF SWITCH DPDT 4GHZ 12QFN |
6,672 |
|
Datasheet | - | 12-VFQFN Exposed Pad | Tape & Reel (TR) | Active | WiMax, WLAN | Reflective | DPDT | 0Hz ~ 4GHz | 32dB | 1.2dB | 4GHz | 41dBm | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 12-PQFN (3x3) |
|
MASW-008543-TR3000IC RF SWITCH SPDT 4GHZ 8MSOP |
3,667 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 10MHz ~ 4GHz | 65dB | 0.7dB | 2GHz | 25dBm | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 8-MSOP-EP |
|
MASW-000936-14000TIC RF SWITCH SPDT 6GHZ 16QFN |
3,898 |
|
Datasheet | - | 16-LQFN Exposed Pad | Tape & Reel (TR) | Active | WiFi, WiMAX | Reflective | SPDT | 50MHz ~ 6GHz | 50dB | 0.2dB | 2.7GHz | - | 72dBm | - | - | ±15V, 28V | -40°C ~ 85°C | - | - | - | 16-PQFN (4x4) |
|
MA4SW310IC RF SWITCH SP3T 20GHZ DIE |
850 |
|
Datasheet | HMIC™ | Die | Bulk | Active | General Purpose | Reflective | SP3T | 50MHz ~ 20GHz | 42dB | 0.9dB | 20GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
|
MASW-011145-TR0500IC RF SWITCH SPDT 31GHZ 20QFN |
886 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 27GHz ~ 31GHz | 45dB | 1.3dB | 31GHz | 37dBm | 60dBm | - | 50Ohm | 3.465V | -40°C ~ 105°C | - | - | Surface Mount | 20-QFN (3x3) |
|

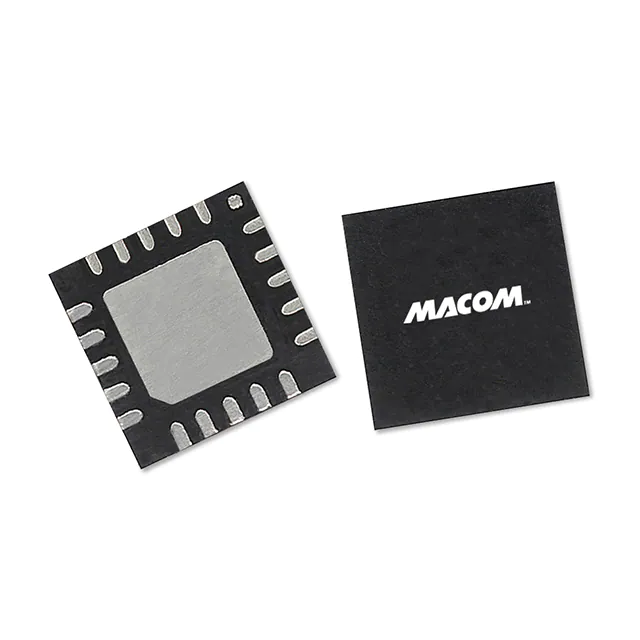

MASW-011120-TR1000IC RF SWITCH SPDT 6GHZ 20HQFN |
6,461 |
|
Datasheet | - | 20-LQFN Exposed Pad | Tape & Reel (TR) | Active | 5G | - | SPDT | 30MHz ~ 6GHz | 44dB | - | - | - | - | - | - | 60V | - | - | - | Surface Mount | 20-HQFN (5x5) |
|
MASW-010351-TR3000IC RF SWITCH SP5T 4GHZ 24QFN |
4,927 |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SP5T | 10MHz ~ 4GHz | 60dB | 1.9dB | 2.1GHz, 4GHz | 27dBm | 50dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 24-PQFN (4x4) |
|
MASW-002103-13630PIC RF SWITCH SPDT 20GHZ |
5,885 |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | - | - | SPDT | 5MHz ~ 20GHz | 27dB | 1.05dB | 20GHz | - | 66dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
Frequently Asked Questions
What are RF Switches components used for?
RF Switches components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Switches part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Switches parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
